1.1 Main parts of the LRF Module
 A receiver, containing electronics and a receiver diode.
 A transmitter, containing a double stage fiber laser and an 830 nm pointer.
 A mainboard which manages all electronic elements and calculates the results.
 Stable aluminum bench including optics.

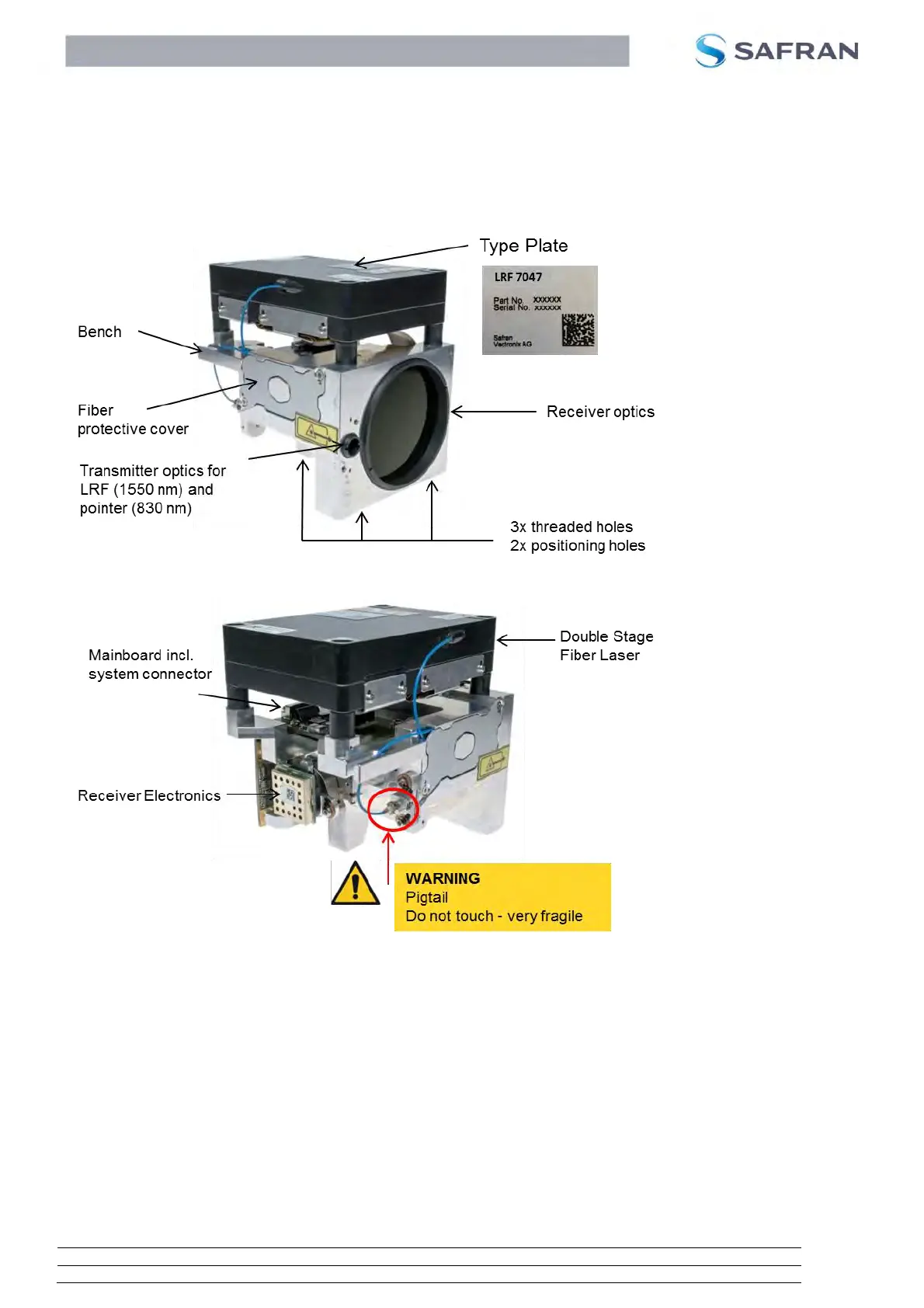

Figure 1: LRF 7047 main parts (front view)
Figure 2: LRF 7047 main parts (rear view)
