LRF 7047- Integrator Manual
914929_TML_LRF7047_en_Version B
Public: 04.2019
Confidential & Proprietary  Safran Vectronix AG – All rights reserved
Page: 28/72

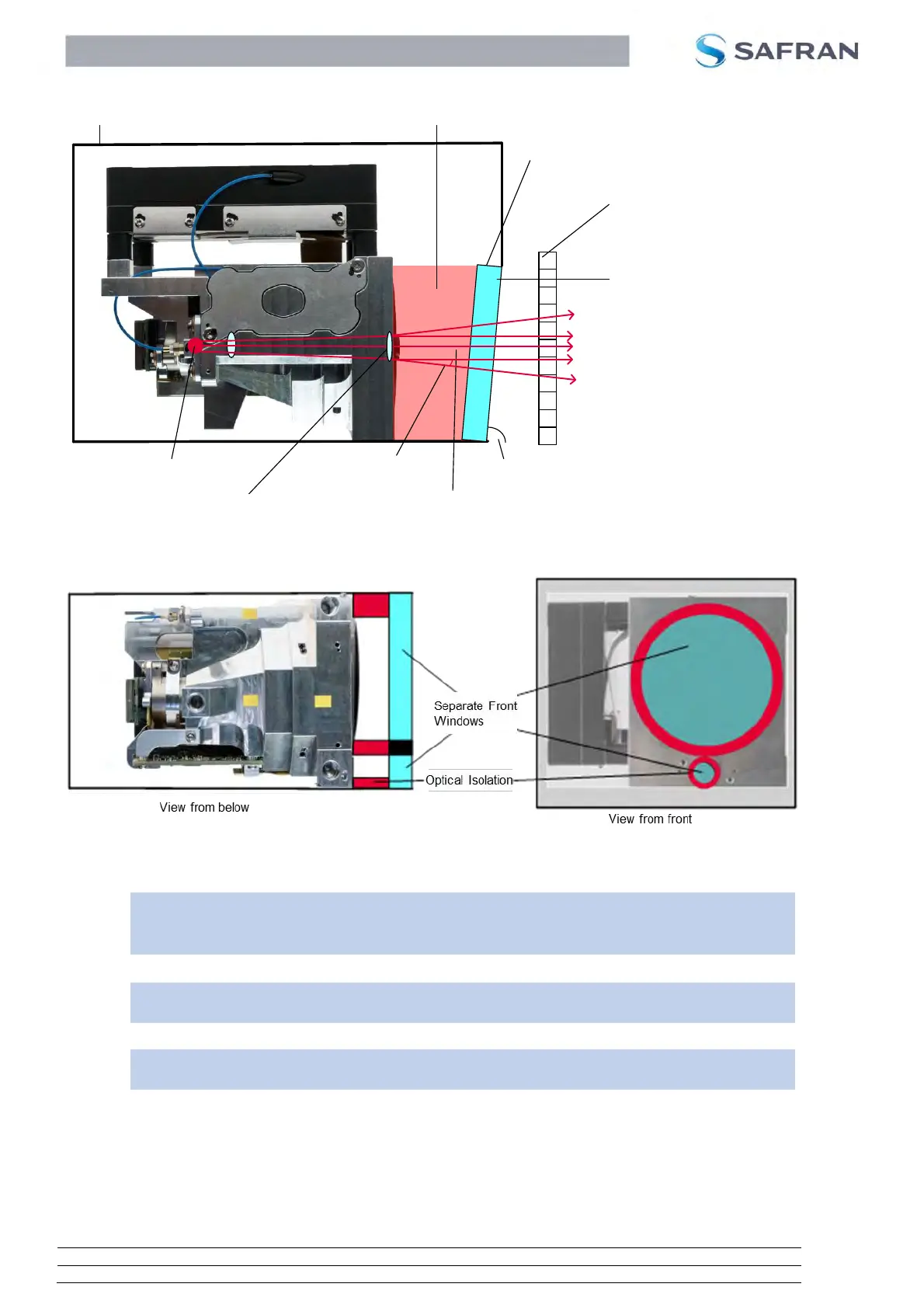

Figure 17: Tilted window (view from side)
Figure 18: Optical isolation of transmitter and receiver
NOTICE
It is strongly recommend to use a tilt angle of 5° - 10° on the front window respect to the LRF.
Doing so, prevents sunlight reflections from the front window to be seen by others.
NOTICE
The tilt angle influences LRF range performance, being 0° angle the optimal value.
NOTICE
The tilt angle prevents the pointer from creating ghost images.
Fiber Laser Output
Objective lense Parallel laser beam
Integrator Unit Windows
Antireflective
protection
(optional)
Tilt angle
Mind the
surface
parallelism
Beam divergence
Integrator Unit Optical Isolation
//
