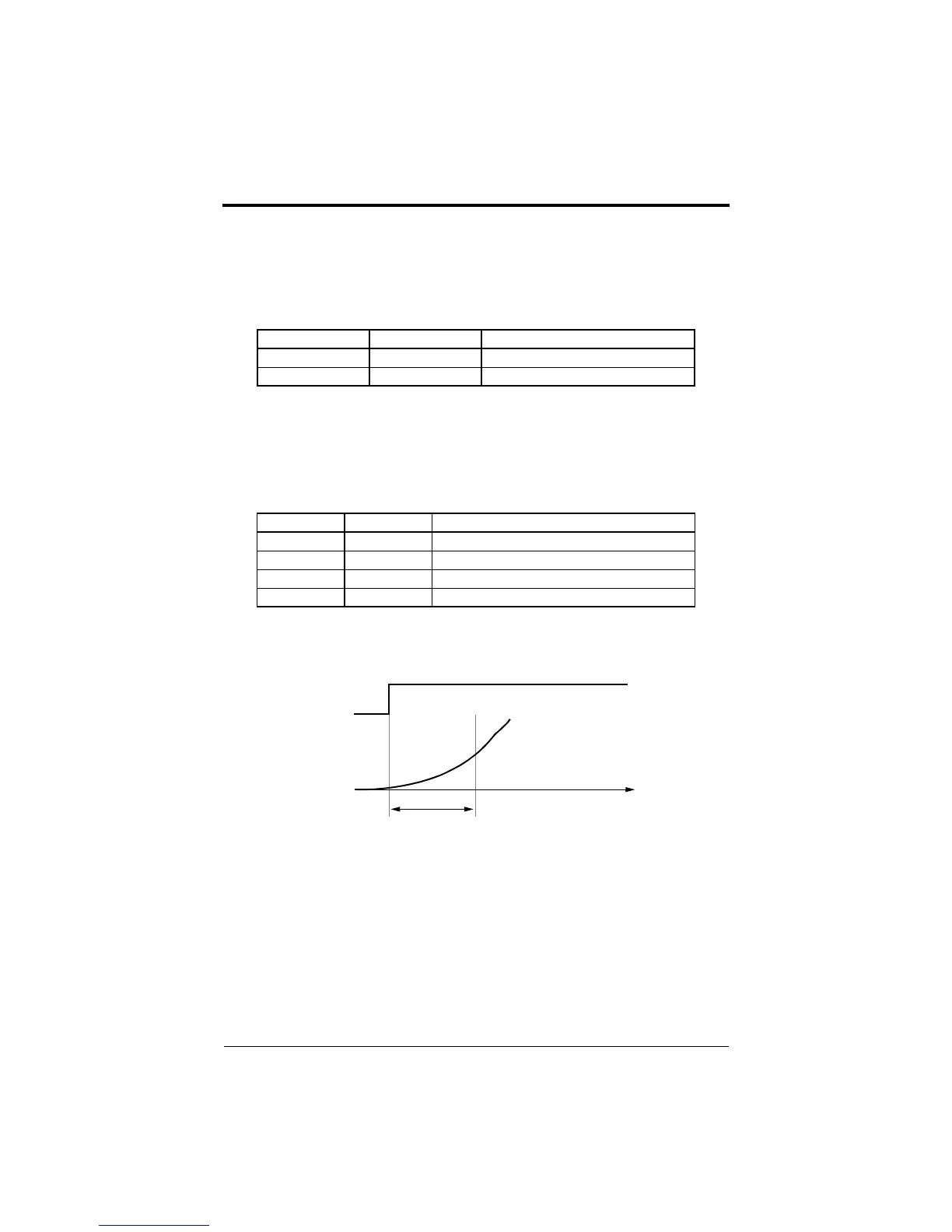

68 FP5/GP5 User’s Manual
Chapter 3 - Programming Features
FP5/GP5 Operation
Reverse Run Prohibit (n006, Reverse Oper)
A “reverse run disabled” setting does not accept a reverse run command
from the control circuit terminal or the digital operator. This setting is
used in applications where a reverse run command can cause problems.
Soft-Start Characteristics (n022, S-Curve Select)
An S-curve pattern is used to reduce shock and provide smooth transitions
during machine acceleration and deceleration.
Note: The S-curve time is the time to reach the set accel/decel rate (as determined by the accel/
decel time settings).
LED Setting LCD Setting Description
0 REV Allowed Reverse run enabled (factory default)
1 REV Prohibited Reverse run disabled
LED Setting LCD Setting Description
0 No S-Curve S-curve not provided
1 0.2 Sec 0.2 second (factory default)
2 0.5 Sec 0.5 second
3 1.0 Sec 1.0 second
Output Frequency
Frequency Reference
Output Frequency
S-curve Characteristic
Time
Time (Tsec)
Figure 36 S-curve Characteristic Timing Diagram
