FP5/GP5 User’s Manual 57
Frequency Agree Set Point (n075, Freq Det Level)
When multi-function contact output selections n041 or n042 are set to “Freq
Det 1” or “Freq Det 2”, frequency detection is enabled. This function is acti-
vated when the output frequency is above or below the frequency agree set
point (n075).
·Output frequency ≤ Frequency agree set point
Set n041 or n042 to “Freq Det 1”.
·Output frequency ≥ Frequency agree set point
Set n041 or n042 to “Freq Det 2”.
ON ON
Release Width
+2Hz
Output Frequency
Frequency Detection
Signal
Frequency Agree Set Point
n075

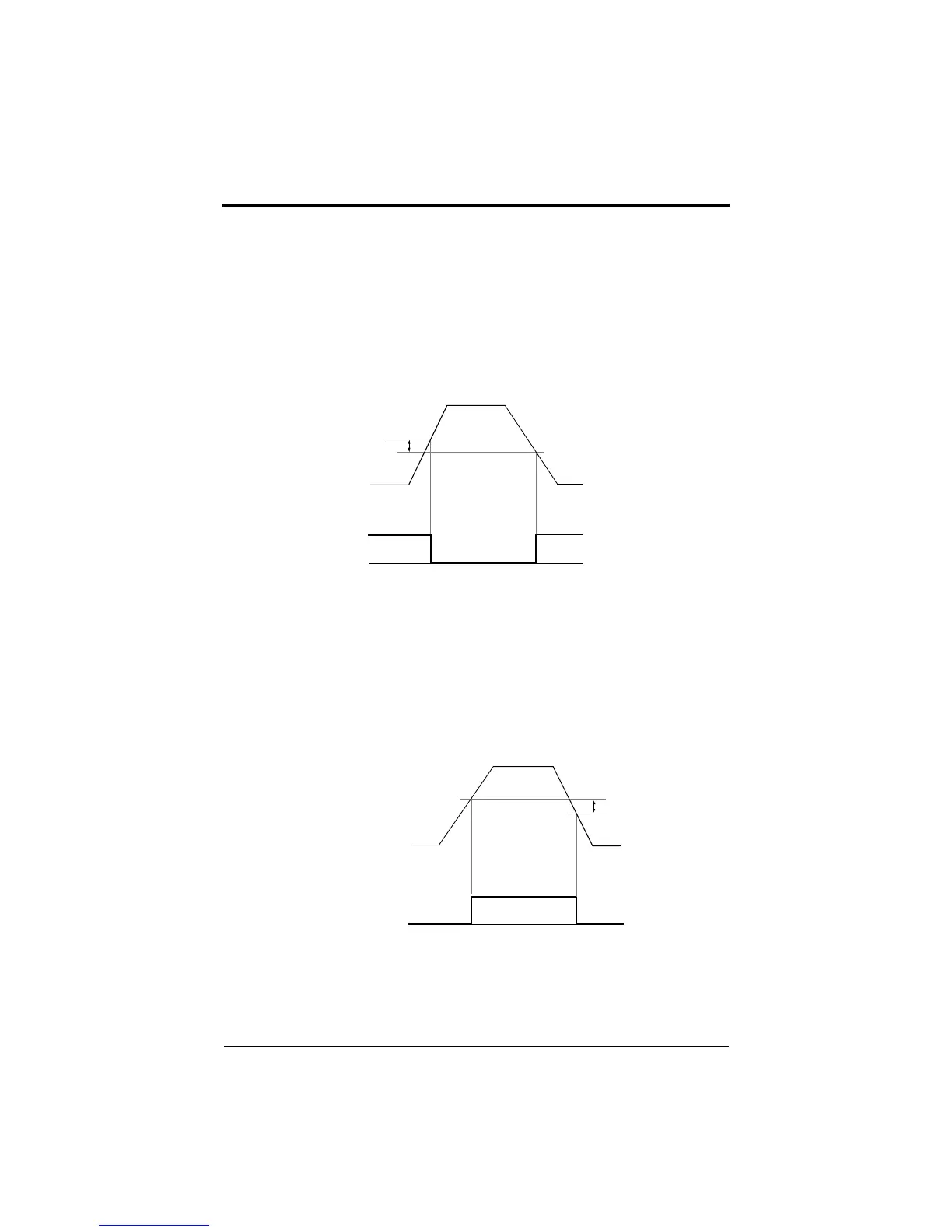

Figure 26 Frequency Agree Set Point Example
(Fout
≤ Frequency Agree Set Point)
ON
Release Width
-2Hz
Output Frequency
Frequency Detection
Signal
Frequency Agree Set Point
n075
Figure 27 Frequency Agree Set Point Example
(Fout ≥ Frequency agree set point)
Chapter 3 - Programming Features
FP5/GP5Operation
