60 FP5/GP5 User’s Manual
To operate the inverter with a frequency reference of 50% to 100% at a
0 to 10V input:
Gain:Parameter n048 = “100”
Bias:Parameter n049 = “50”
Jog Operation
Multi-function inputs (Terminals S2 to S6) can be programmed to func-
tion as a jog reference selection. Operation can then be enabled at the jog
frequency reference set in parameter n030 by activating this input. A
“RUN” command must also be given to start the inverter. When multi-
step speed references 1 or 2 are input simultaneously with the jog fre-
quency reference, the jog frequency reference has priority.
Jump Frequencies (n062, Jump Freq 1; n063, Jump Freq 2,
n064, Jump Bandwidth)
This function enables the “jumping” of critical frequencies so that sys-
tems can operate without excessive vibration or noise. Setting the value to
0.0Hz disables this function.
Set jump frequency 1 or 2 such that n062 ≤ n063. If this condition is not
satisfied, the inverter displays the parameter setting error “OPE6”.
Name Parameter No. Setting
Jog frequency reference n030 6.0Hz (Factory default)
Multi-function contact input
selection (S2 to S6)
n036, n037, n038, n039, n040
Set to “Jog Command” for any
parameter.
Max. Output
0V
10V
Frequency (100%)
50%

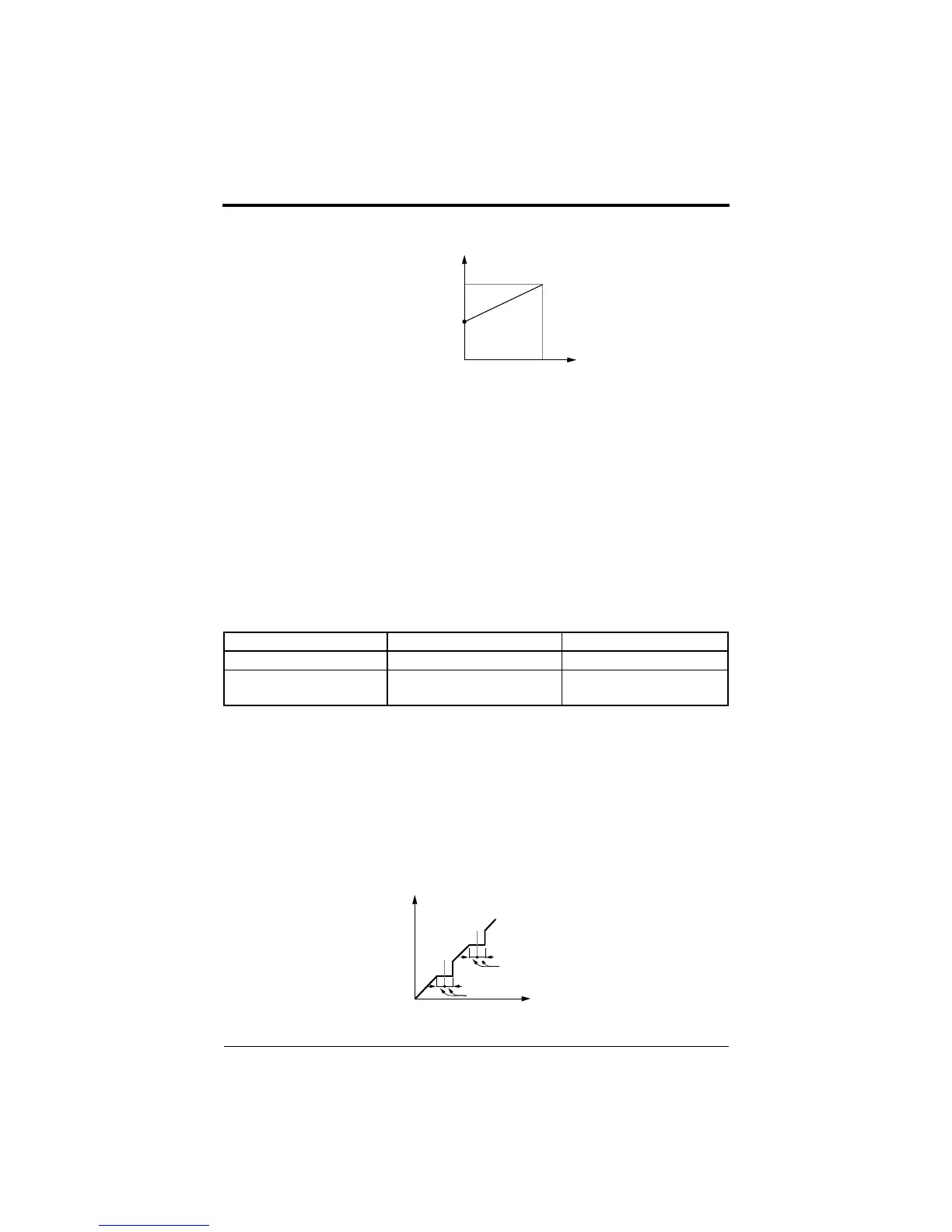

Figure 31 Frequency Signal Adjustment Example - 0 to 10V input
Output Frequency
n063
n062
n064
n064
Frequency
Reference
Figure 32 Jump Frequencies
Chapter 3 - Programming Features
FP5/GP5 Operation
