FP5/GP5 User’s Manual 69
Chapter 3 - Programming Features
FP5/GP5 Operation

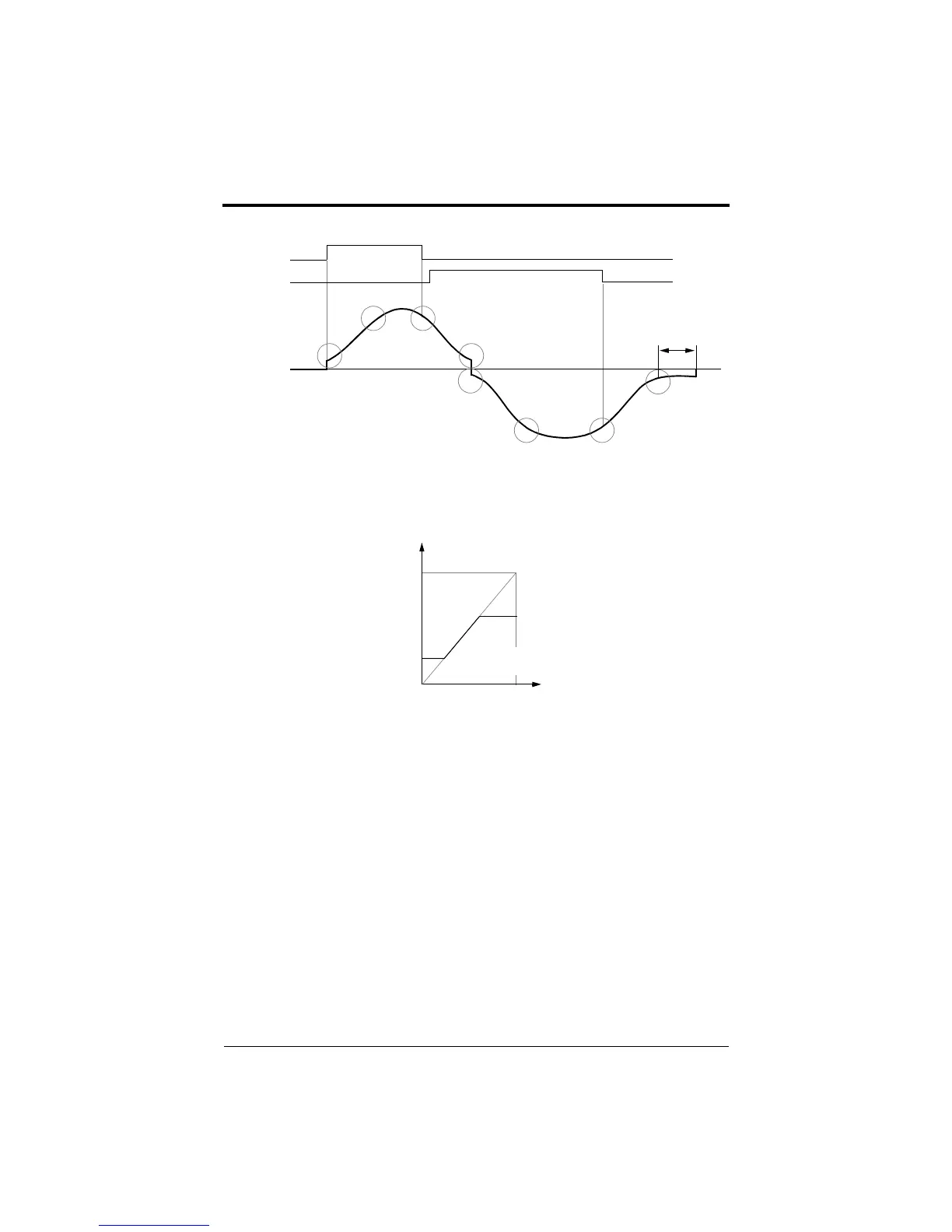

The following figure shows FWD/REV run switching during deceleration to stop.
Speed Limit Adjustment
·Frequency Reference Upper Limit (n031, Ref Upper Limit)
The upper limit of the frequency reference can be set in increments of
1%. (n011: maximum output frequency = 100%)
Factory setting: 100%
·Frequency Reference Lower Limit (n032, Ref Lower limit)
The lower limit of the frequency reference can be set in increments of
1%. (n011: maximum output frequency = 100%)
Factory setting: 0%
When operating at a frequency reference of 0Hz, operation continues at
the frequency reference lower limit. However, when the lower limit is set
to less than the minimum output frequency (n016), operation stops.
FWD Run Command
REV Run Command
Output Frequency
Acceleration Deceleration
Min. Output Frequency
n016
Min. Output Frequency
n016
Acceleration Deceleration
DC Injection Braking
Time at Stop
n069
Figure 37 S-curve Characteristics - FWD/REV Operation
Frequency Reference
Upper Limit (n031)
Set Frequency Reference
Internal
Frequency
Reference
Frequency Reference
Lower Limit (n032)
Figure 38 Setting Frequency Upper and Lower Limits
