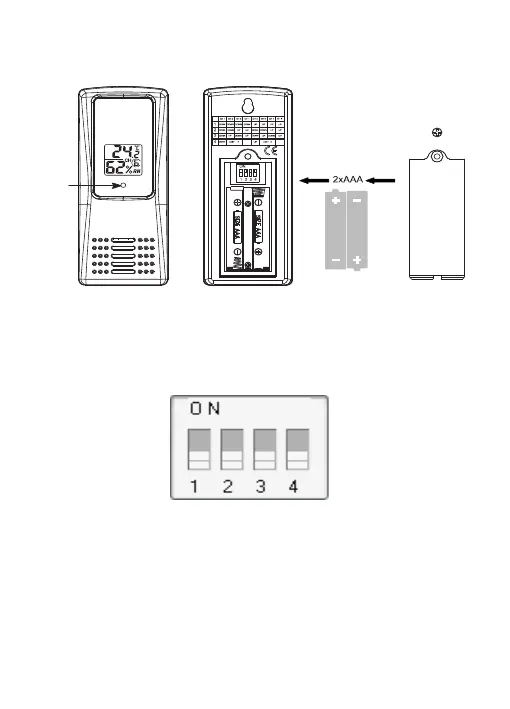

1. Remove the battery door on the back of the sensor by
removing the set screw, as shown in Figure 1 .
LED
Figure 1
2. BEFORE inserting the batteries, locate the dip switches on the
inside cover of the lid of the transmitter.
Figure 2
setting).
Figure 2
3. Channel Number: The FT0073 supports up to eight
transmitters. To set each channel number (the default is Channel 1),
change Dip Switches 1, 2 and 3, as referenced in Table 1.
4. Temperature Units of Measure: To change the transmitter
display units of measure (°F vs. °C), change Dip Switch 4, as referenced
in Table 1.
displays all four switches in the OFF position (factory default
-19-
