SAJ 8000m Series User Manual

8000m Series
- 90 -
F5.15
AVI upper limit Factory Setting 10.00V
Setting Options
0.00V～10.00V
F5.16
Setting value
corresponding to AVI
upper limit
Factory Setting 100.0%
Setting Options
-100.0%～100.0%
F5.17
AVI input filter time Factory Setting 0.10s
Setting Options 0.00s~10.00s
F5.18~F5.22 Reserved
These parameters are used to define the relationship between the analog input and
the corresponding setting. When the analog input exceeds the scope between the
defined upper and lower input limits, the analog value is calculated as the upper or
lower input limits reached.
When the analog input is current input, 1 mA current corresponds to 0.5 V voltage.
In different applications, 100% of analog input corresponds to different nominal
values. For details, refer to the description of different applications.

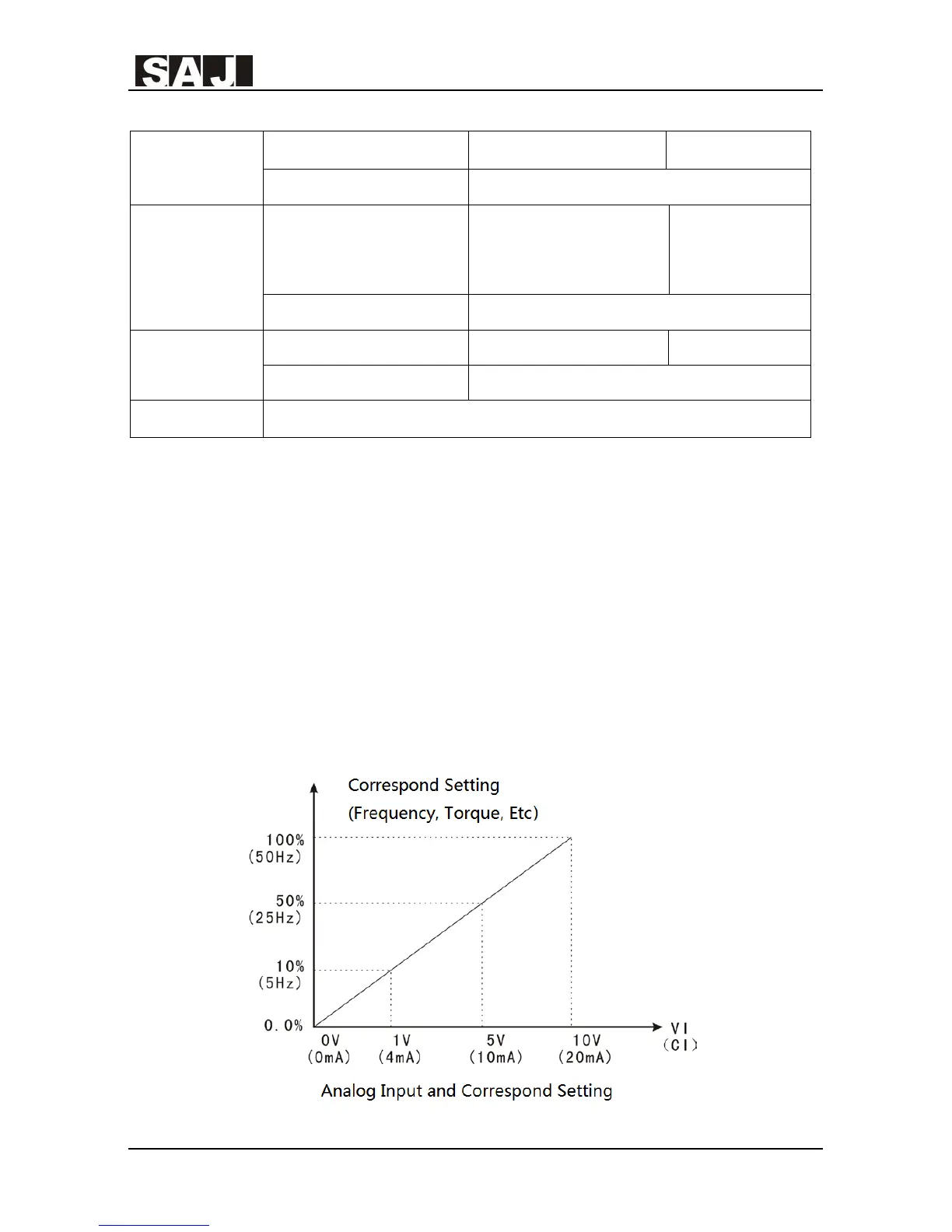

The following examples illuminate the setting situations.
