SAJ R5 Series User Manual

R5 Series
- 19 -

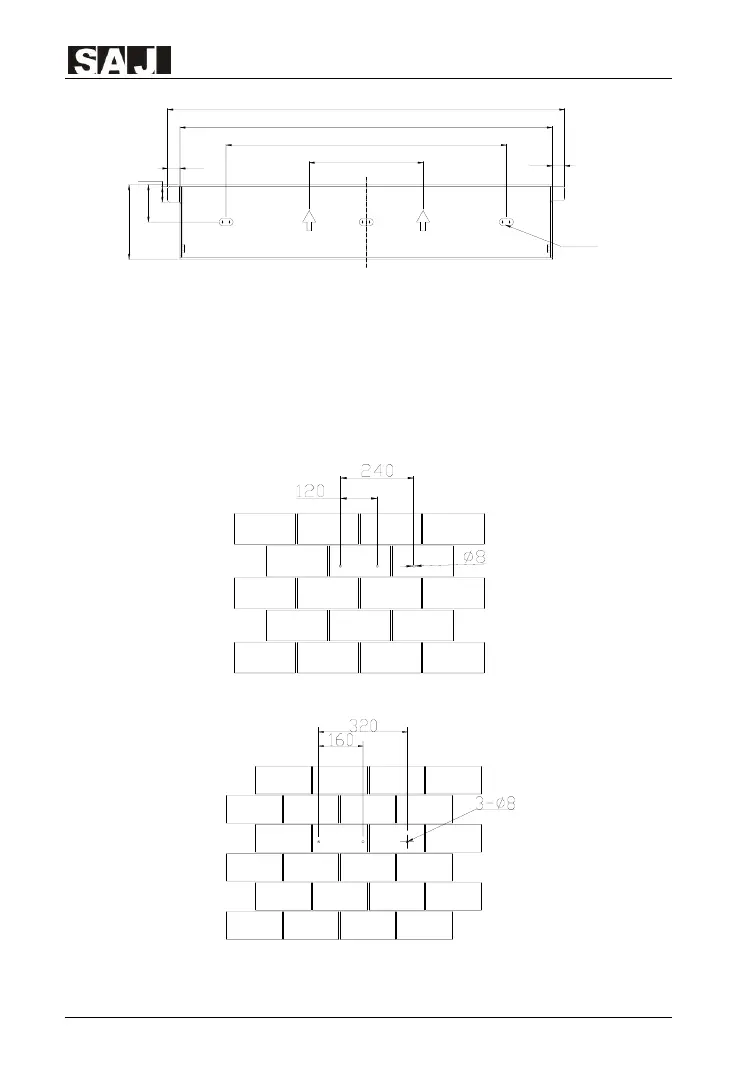

Figure 4.4 Dimensions of rear panel of R5-15K/17K/20K-T2-AUS
4.4.2 Drill Holes and Place the Expansion Tubes
Follow the given guides, drill 3 holes in the wall (in conformity with position
marked in Figure 4.5 and 4.6), and then place expansion tubes in the holes using a
rubber mallet.
Figure 4.5 Drill holes’ dimensions of R5-3K/4K/5K/6K/8K/9K/10K-T2-AUS
Figure 4.6 Drill holes’ dimensions of R5-15K/17K/20K-T2-AUS
453
425
320
130
42.5
17.6
85
3-16*8
14
14

SAJ R5 Series Specifications

General

MPPT	Yes
Display	LCD
Number of MPP Trackers	2
Cooling Method	Natural convection
Type	Grid-tied Inverter
Communication	WiFi, Ethernet, RS485
Operating Temperature Range	-25°C ~ +60°C
Output Voltage Range	230V
