sufficient air exchange. Ensure additional ventilation, when necessary.
To make sure the installation spot is suitably ventilated, if multiple SAJ on-grid
solar inverters are installed together, the following safety clearance in Figure 4.2
shall be followed for proper ventilation conditions.
30CM
50CM50CM30CM
30CM
4.2 Installation position
4.4 Mounting Procedure
4.4.1 Mark the Positions of the Drill Holes of the Rear Panel

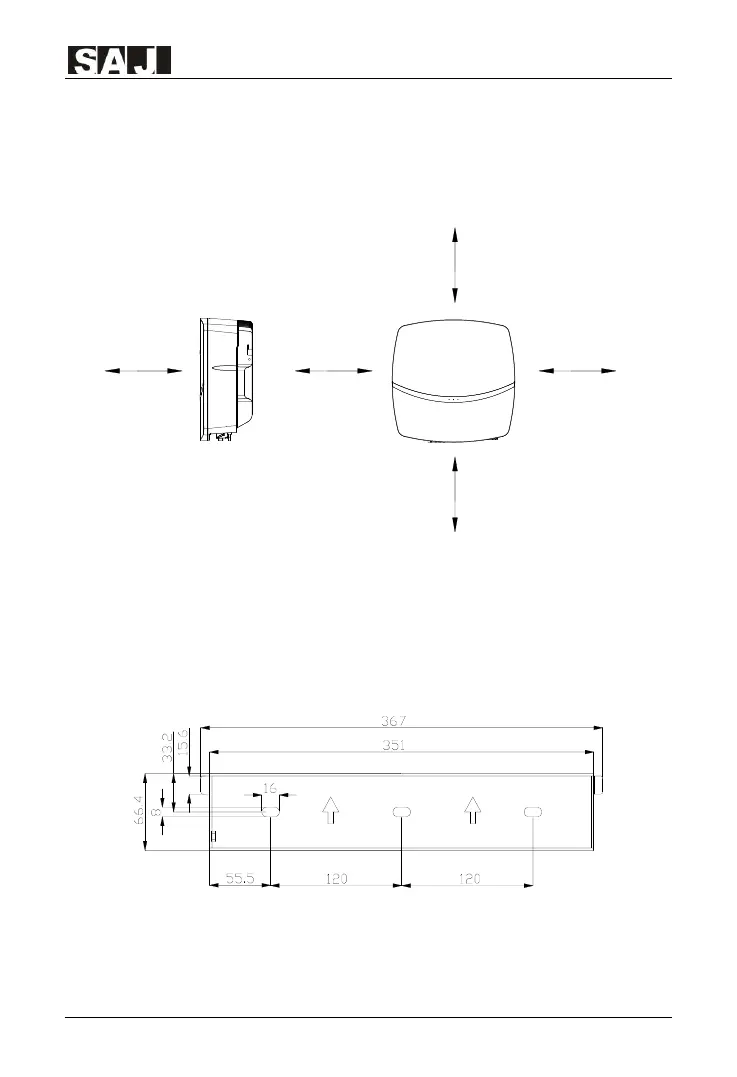

The mounting position should be marked as shown in Figure 4.3 and 4.4.
Figure 4.3 Dimensions of rear panel of R5-3K/4K/5K/6K/8K/9K/10K-T2-AUS

SAJ R5 Series Specifications

General

MPPT	Yes
Display	LCD
Number of MPP Trackers	2
Cooling Method	Natural convection
Type	Grid-tied Inverter
Communication	WiFi, Ethernet, RS485
Operating Temperature Range	-25°C ~ +60°C
Output Voltage Range	230V
