5. INSTALLATION
5.1. RECEPTION OF GOODS
Each device is carefully checked before transportation. When receiving the goods, checking the devices for any damage made during transporta-
tion is recommended. If any damage to the unit is observed, immediately contact the representatives of a transport company. Please inform the
representative of the manufacturer, if any deviation of the device is noticed.
5.2. TRANSPORTATION AND STORAGE
• All units are factory-packaged to withstand normal conditions of transportation.
• When unpacking, check the unit for any damage made during transportation. Installing the damaged units is not allowed!
• The packaging is used for protection purposes only!
• When unloading and storing the units, use suitable lifting equipment to avoid damage and injuries. Do not lift units by holding on power supply
cables, connection boxes, air extract or exhaust anges. Avoid hits and shock overloads. Before installation, the units must be stored in a dry
room with relative air humidity not exceeding 70 % (at +20 °C) and with an average ambient temperature ranging between +5 °C and +30 °C.
The storage place must be protected against dirt and water.
• The units must be transported to the storage place or installation site using forklifts.
• The recommended storage period should not be longer than one year. In case of storing the units for a period longer than one year, checking if
the fan bearings and motor rotate without diculty (turning the impeller by hand) and if the electric circuit insulation is not damaged or the mois-
ture has not accumulated must be performed before the installation of the unit.
L
W
1
1
1

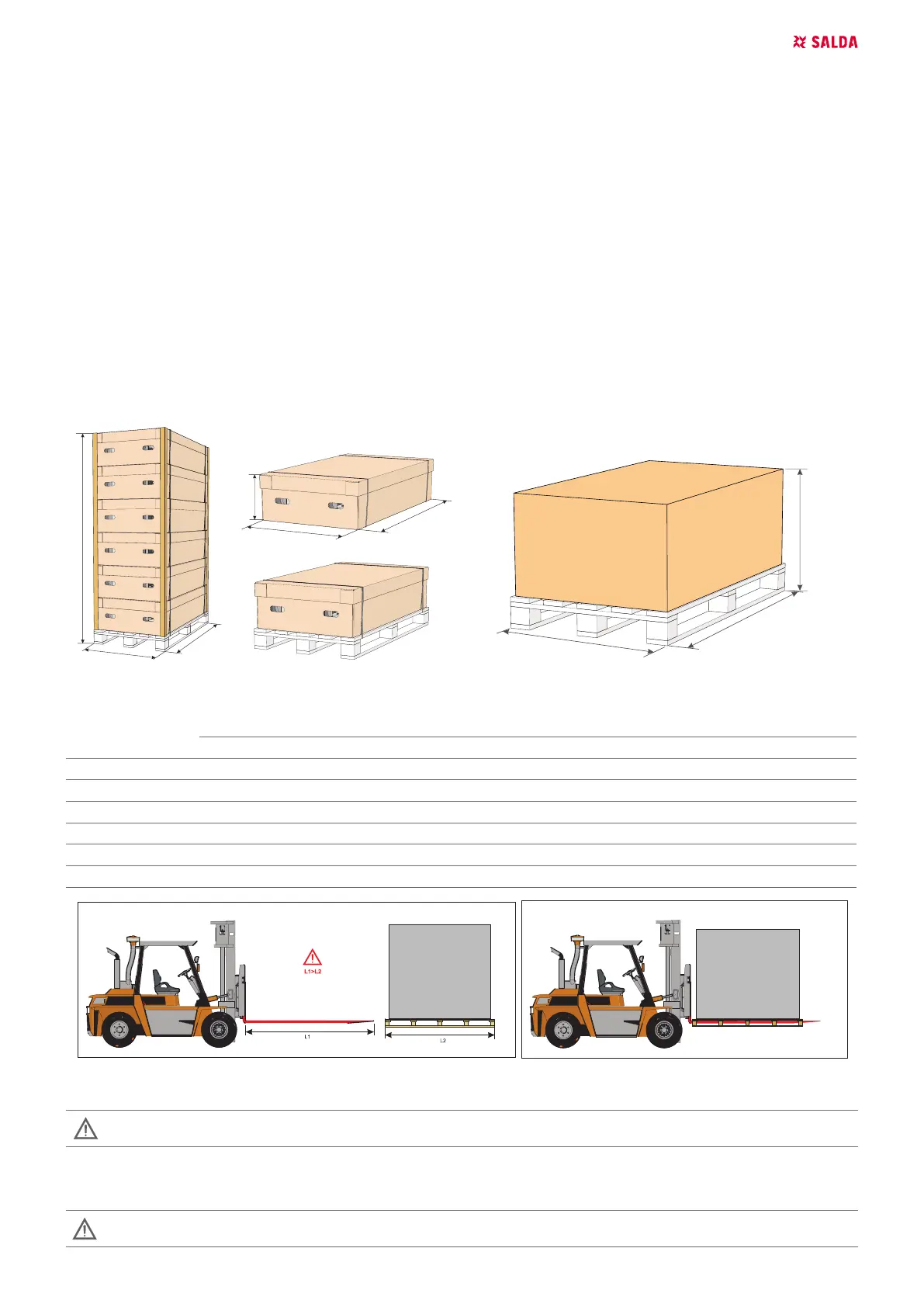

Figure 5.2.1. Smarty XP Figure 5.2.2. Smarty XV
UNIT
DIMENSIONS OF A SINGLE
PACKAGE
DIMENSIONS OF MULTI-
PACKAGE
MAX. NUMBER OF
TRANSPORTED PACKAGES
H1 [mm] L1 [mm] W1 [mm] H2 [mm] L2 [mm] W2 [mm] [PCS.]
Smarty 2X P 415 800 1200 2240 800 1200 8
Smarty 3X P 485 800 1450 2167 800 1430 6
Smarty 4X P 490 800 1450 2175 800 1200 6
Smarty 2X V 485 800 700 - - - 6
Smarty 3X V 1060 800 600 - - - 1
Smarty 4X V 1125 730 585 - - - 1
Figure 5.2.3. Lifting by forklift.
To prevent damage to the casing, only a product placed on a pallet should be lifted.
5.3. UNPACKING
Accessories may be packed together with the product. Prior to transporting the unit, the accessories should be unpacked rst.
