LED INDICATION
miniMCB miniEX1
LED1 3.3V miniMCB power indication (1W mode) LED1 EX1 status LED
LED2 12V miniMCB power indication
LED3 3.3V miniMCB power indication (ON mode)
LED4 MiniMCB status LED
LED5 Communication line Transmit indication
LED6 Communication line Receive indication
LED7 24V peripheral POWER ON indication

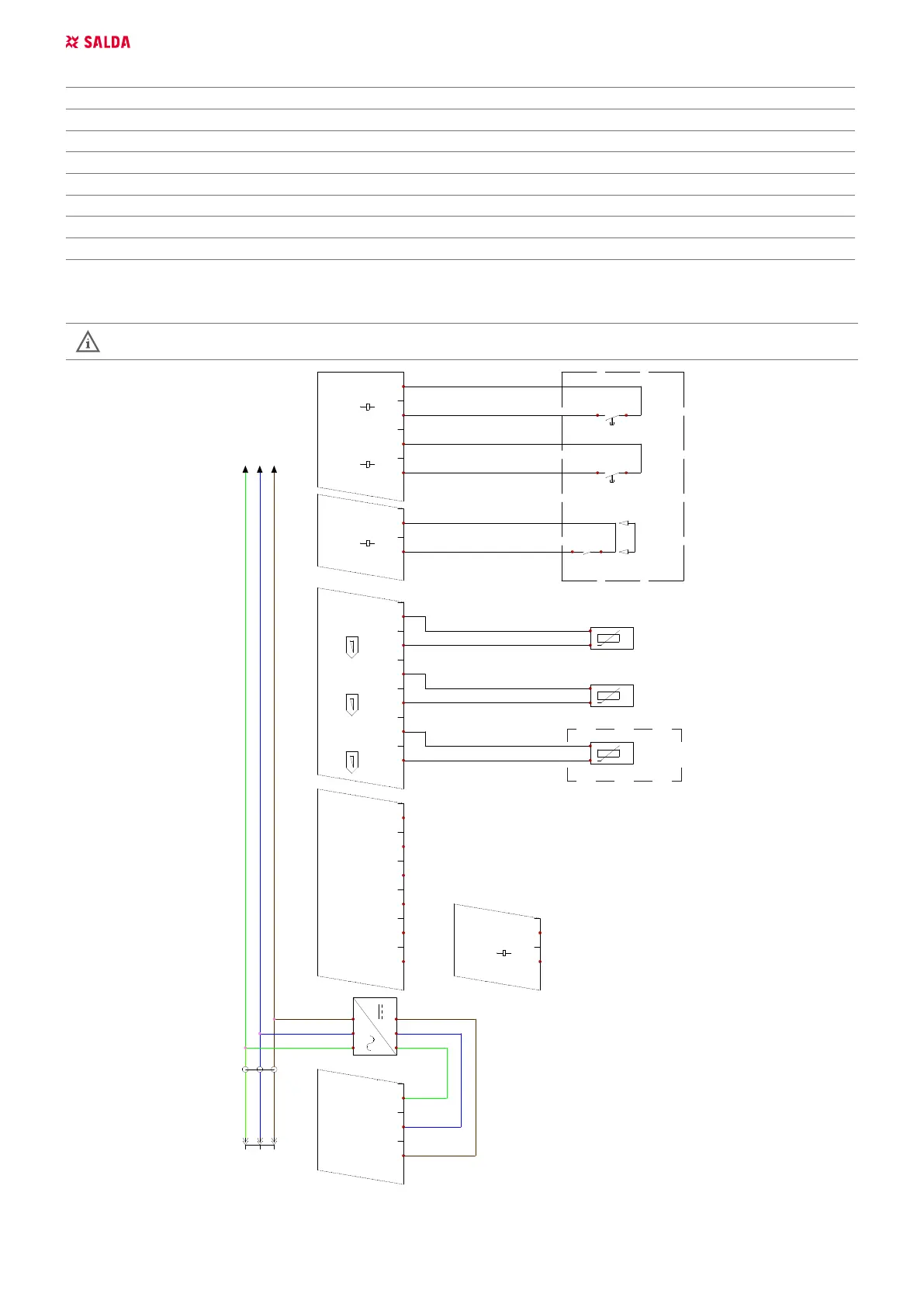

8.15. RECOMMENDED SCHEMES FOR CONNECTION OF INTERNAL AND EXTERNAL COMPONENTS
*Only Smarty 1.1 versions have N2 module.
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1123445677
EI D. Aleksandravičius EI A. Šklenikas
Aut. 219.1017E
219.1017.0.1.1-PS
Principle connection scheme
1
01
2019-05-15
2019-05-15 2019-05-15
24VDC
-G1
PE N L PE - +
PE
-X1
N L1
-FA
-TA-TL
Power supply
1f, 230VAC
-TJ
1
1
-X2
2
1
2
2
1
3
2
Fire alarm
Supply
air temp. sensor
Fresh
air temp. sensor
Extract
air temp. sensor
Power in
Jumper 7
Punktyrine linija pažymėtus komponentus ir kabelius pajungia SALDA arba vartotojas.
Components and cables marked with the dash line connected by SALDA or customer.
Bypass actuator
(for versions 1.1 and 1.2)
Bypass position switch
(for versions 1.1 and 1.2)
X9:1 - 24VDC_IN
X9:2 - GND
X9:3 - PE
-N1
miniMCB V0.3
X3:1 - 24VDC
X3:2 - STEP_B/
X3:3 - STEP_B
X3:4 - STEP_A/
X3:5 - STEP_A
X3:6 - 24VDC
-N1
miniMCB V0.3
X4:5 - DI4
X4:6 - 3.3V_1W
-N1
miniMCB V0.3
X6:1 - AI1(NTC)
X6:2 - GND
X6:3 - AI2(NTC)
X6:4 - GND
X6:5 - AI3(NTC)
X6:6 - GND
-N1
miniMCB V0.3
X5:5 - DI7
X5:6 - +12VDC
-N1
miniMCB V0.3
X23:5 - DI3
X23:6 - 12VDC
X23:7 - DI4
X23:8 - 12VDC
-N2
miniEX1 V0.3
-Fire Place II
-Fire Place I
Fire place
(for versions 1.1)
02-1 02-1 02-1
Figure 8.15.1. SMARTY XP 1.1/1.2; Smarty 2X V 1.1; Smarty 2X V / 3X V / 4X V F2 1.2 (219.1017.0.1.1-PS)
