EN | 17SMARTY v2023.2
• Do not connect the bends close to the connection anges of the unit. The minimum distance of the straight air duct between the unit and the rst
branch of the air duct in the supply and exhaust air ducts must be 3xD, where D is the diameter of the air duct.
• It is recommended to use the brackets (accessories). This will reduce the vibration transmitted by the unit to the air duct system and environment.
• Sucient space must be provided for opening the device door and lter covers.
• If the ventilation unit is a wall-mounted device, it may transmit noise vibrations to the premises. Though the level of noise generated by the fans is
admissible, we recommend mounting the unit at a distance of 400 mm from the nearest wall. Where this is not possible, we recommend mounting
the unit on the wall of the room where the level of noise is not signicant.
• Ducts are connected to the unit in such a way that they could be easily disassembled, and the coil could be removed from the unit when carrying
out maintenance, service and/or repair works.
The protective lm is used to protect the unit during transportation. It is recommended to remove the lm; otherwise, oxidation
signs may occur.
The condensate tube must be lled with water as indicated during the rst start-up before every heating season!
α

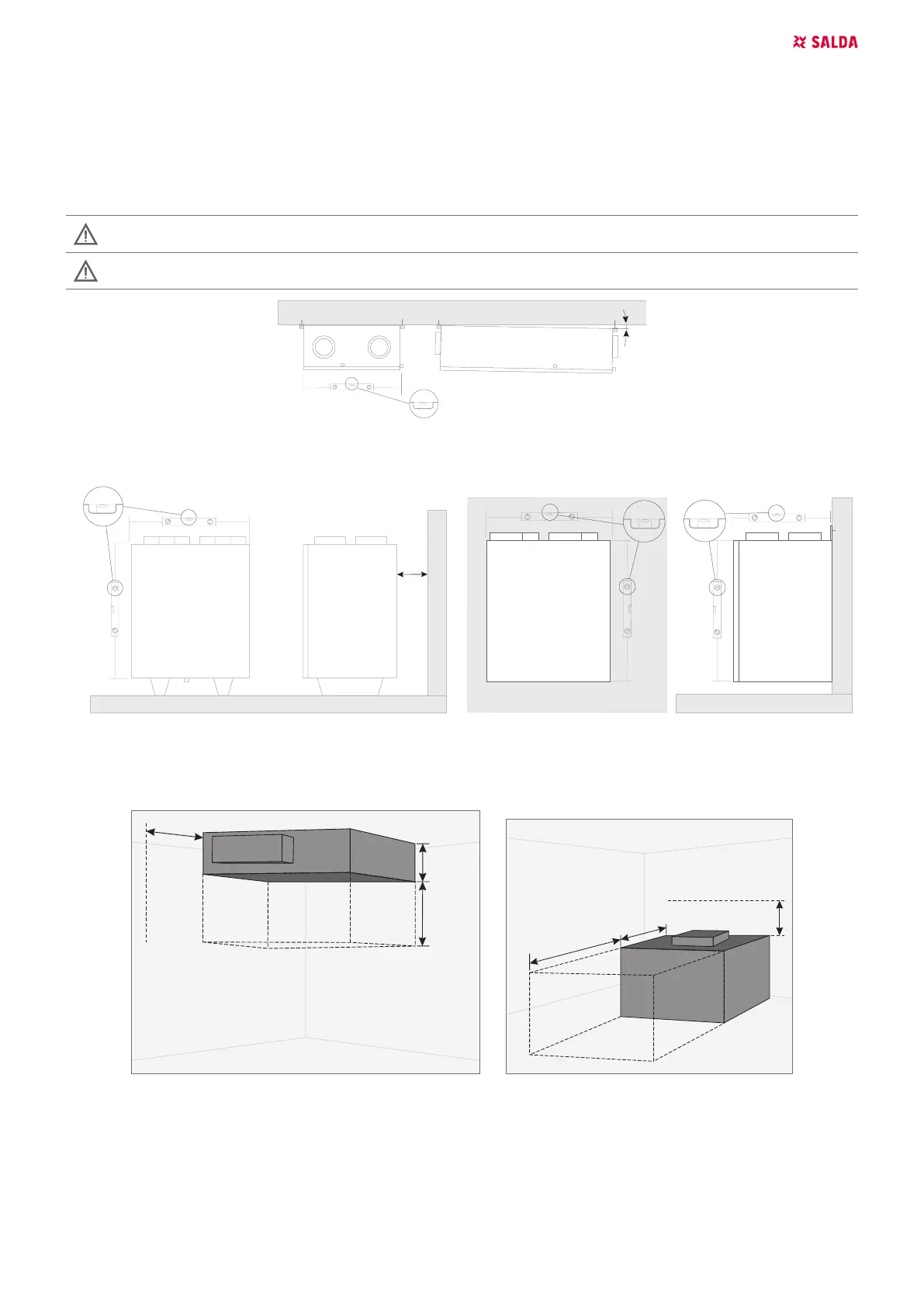

Figure 5.5.1. Smarty XP Ceiling-mounting positions (α>1
o
) (only for units with condensation heat exchanger)
*The location of the condensate outlet for the specic product is indicated in the dimensional drawing
W
Figure 5.5.2. Smarty XV horizontal oor-mounting positions on oor
(W=400 mm)
Figure 5.5.3. Smarty XV ceiling-mounting positions
5.5.1. UNIT PLACING AND MOUNTING POSITIONING REQUIREMENTS
L
1,5xL
H
L
1,5xL
H
Figure 5.5.1.1. Min. distance to open the door - 1,5xL; Min. distance to open the control box door - H > 400 mm.
