10.2. HEATER
In order to control electrical heater, it has to be congured by following steps:

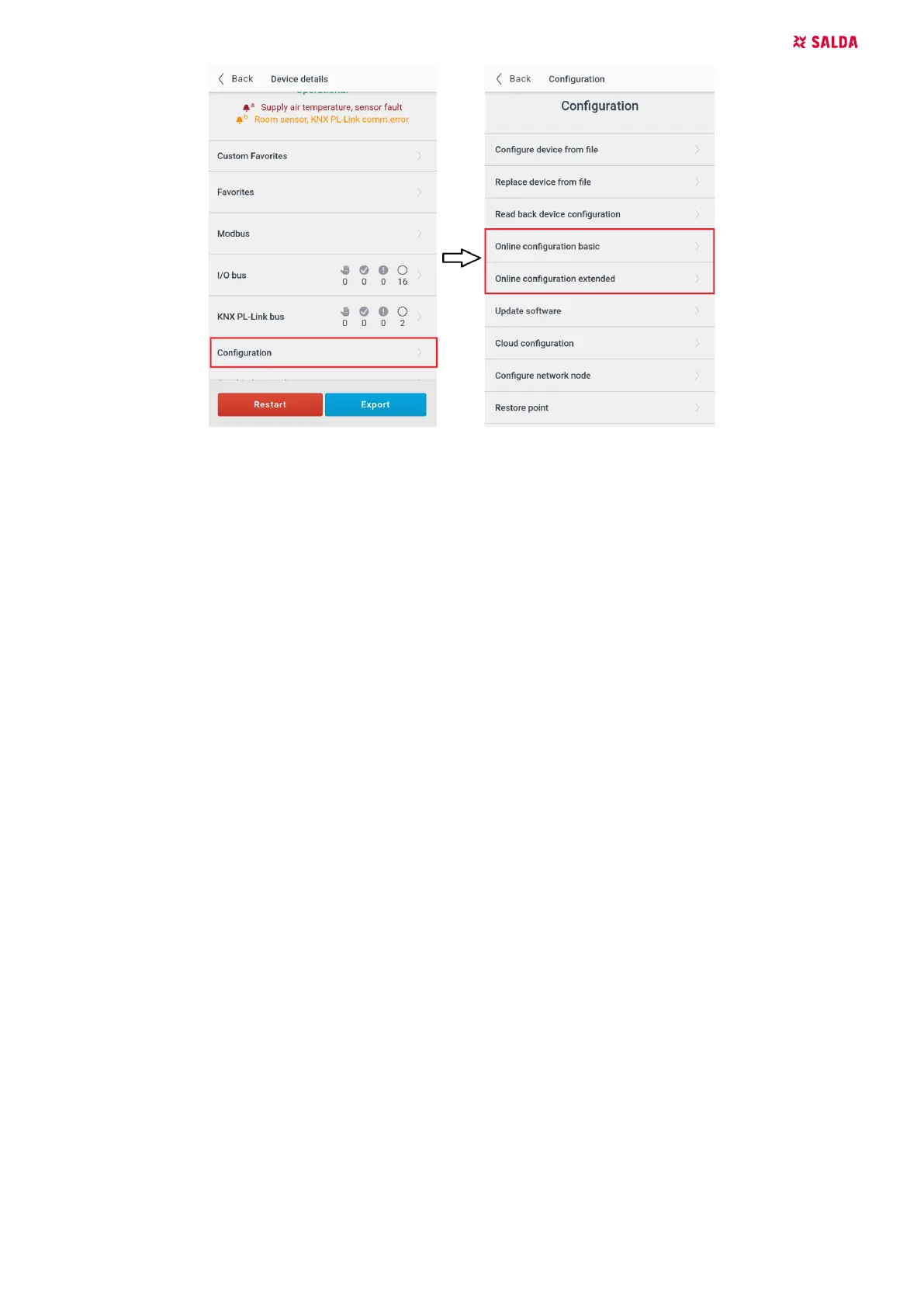

• In CONFIGURATION window select ONLINE CONFIGURATION BASIC and press OK on warning. Wait for the device to switch in conguration mode.
• Set HEATING COIL parameter to ELECTRIC HEATING COIL 21Y.
• Press APPLY – RESTART DEVICE button and wait for conguration to be applied. After conrmation of successful device activation, press DONE.
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select Q1 as ELECTRIC HEATING COIL COMMAND, X8 as HEATING COIL OVERTEMPERATURE DETECTOR and A3 as HEATING COIL ELECTRIC POSITION.
• Press APPLY – RESTART DEVICE button and wait for conguration to be applied. After conrmation of successful device activation press DONE.
10.3. PREHEATER
In order to control electrical preheater, which has been connected as required in section "8.1.3.2. PREHEATER", it has to be congured by fol-
lowing steps:
• In CONFIGURATION window select ONLINE CONFIGURATION BASIC and press OK on warning. Wait for the device to switch in conguration mode.
• Set PREHEATING COIL parameter to ELECTRIC PREHEATING COIL 21Y.
• Press APPLY – RESTART DEVICE button and wait for conguration to be applied. After conrmation of successful device activation, press DONE.
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select Q1 as ELECTRIC PREHEATING COIL COMMAND, X8 as SUPPLY AIR TEMP. AFTER PREHEATING COIL, B1 as OUTSIDE AIR TEMPERATURE, A3 as
PREHEATING COIL ELECTRIC POSITION and X3 as PREHEATING COIL OVERTEMPERATURE DETECTOR.
• Press APPLY – RESTART DEVICE button and wait for conguration to be applied. After conrmation of successful device activation press DONE.
10.4. SMOKE DETECTOR
By default, smoke detector input is activated and congured as NO input. In order to use a NC switch, input must be recongured to NC by following
steps:
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select D1 as SMOKE EXTRACTION NORMALLY CLOSED.
10.5. FIREPLACE PROTECTION, SYSTEM MODE SWITCH OR RAPID VENTILATION SWITCH INPUT
In order to congure D2 input as Fire place protection:
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select D2 as FIREPLACE VENTILATION INPUT.
System mode switch function can be used to enable one pre-selected system mode. System mode for this switch can be set by following steps:
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select D2 as one of the selections available:
1. INPUT ROOM OPERATING MODE COMFORT;
2. INPUT ROOM OPERATING MODE ECONOMY;
3. INPUT ROOM OPERATING MODE UNOCCUPIED;
4. INPUT ROOM OPERATING MODE PROTECTION.
Rapid ventilation switch function can be used to boost fan speed. In order to congure D2 input as Rapid ventilation switch:
• In CONFIGURATION window select ONLINE CONFIGURATION EXTENDED and press OK on warning. Wait for the device to switch in conguration mode.
• Select D2 as RAPID VENTILATION INPUT.
After D2 input is congured press APPLY – RESTART DEVICE button and wait for conguration to be applied. After conrmation of successful device
activation press DONE.
