EN | 39SMARTY v2023.2

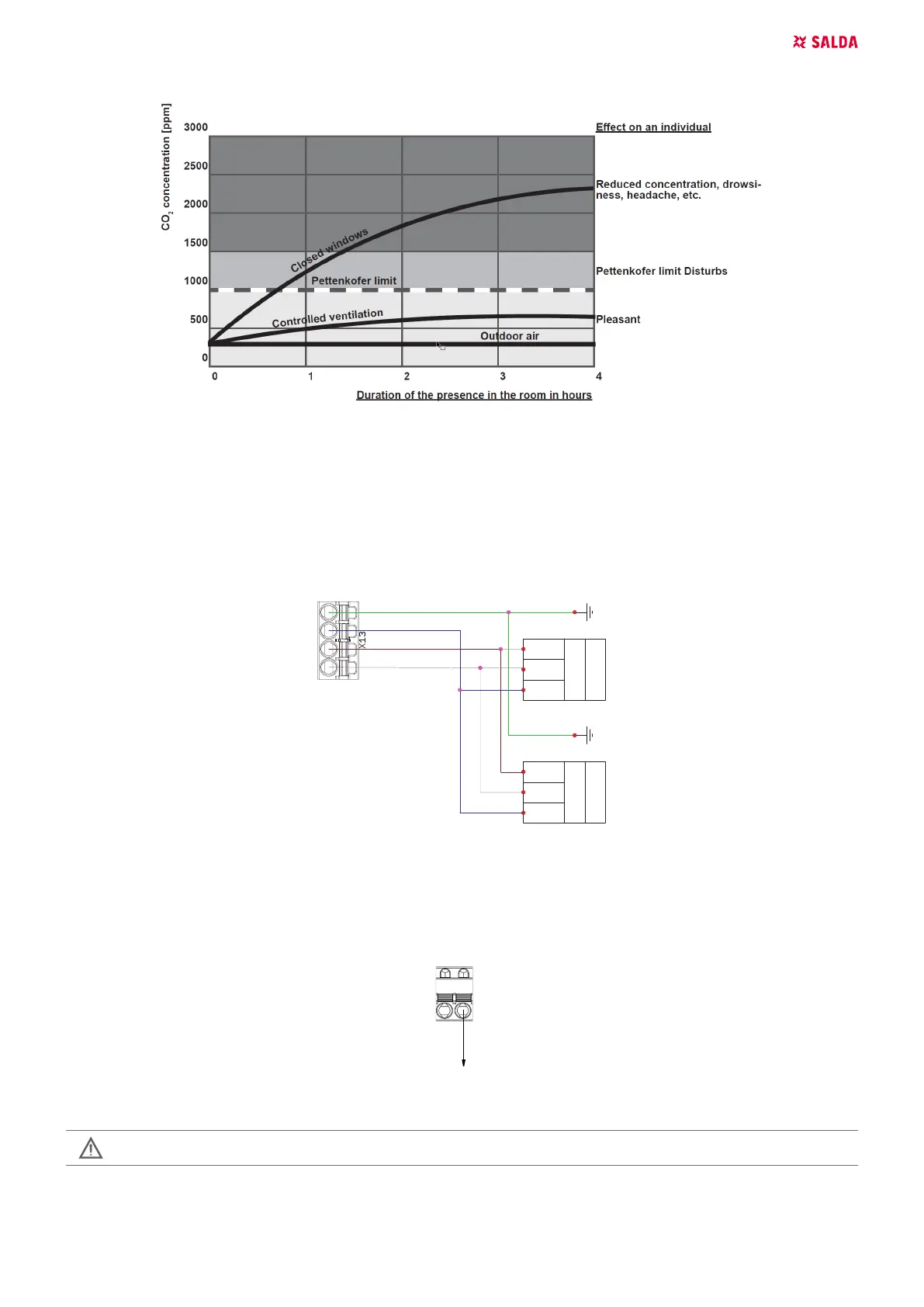

8.6. CO
2
CONCENTRATION ACCORDING TO PETTENKOFER LIMIT
8.7. CONNECTION OF SUPPLY AND EXHAUST AIR DAMPERS (VERSION 1.1 / 1.2)
All versions of Smarty can be equipped with outdoor air and exhaust air dampers. Dampers are operated by Open/Close actuators.
Installation diagram
See "PIPING AND INSTRUMENTATION DIAGRAM".
Wiring diagram
Automation controller D zone. Upon activation of output X13:3, the dampers open. Upon activation of output X13:4, the dampers close.
N(L1)
PE
432 1
230VAC
ON/OFF
N
L1
L1
M3
PE PE
DO4 (L(L2))
DO3 (L(L2))
230VAC
ON/OFF
N
L1
L1
M2
8.8. OUTSIDE AIR DAMPERS (VERSION S300)
Outside air dampers can be used with Smarty products. Dampers should be controlled by On/O󰀨 or Spring-return actuators. Upon activation of
output Q34 (T14:1), dampers shall open. Upon deactivation of output, dampers shall close. When activated, 230V voltage is applied to Q34 output.
By default, damper control output is already activated in conguration.
Page
Page
Project template with identification structure in accordance with IEC standard: Page structure with higher-level function and mounting location
Ed.
1
Original
IEC_tpl001
EPLAN
mindaugasbeleckas +
Date
Date
Replaced by
Dampers
1
Modification
0 76
Appr.
Replacement of
8 93
2
4
2022-01-17
EPLAN Software & Service
GmbH & Co. KG
2
2
=
Name
5
2/
1
2
Outside air damper control signal (L, 230V)
Output digital relay 24-230 V AC, max 6.3A, normally open/closed
Q34
Ref
D1
GND
+24VDC
Smoke
detector
T3
T7
3 124
Operation indication output signal (L, 230V)
Output digital relays 24-230 V AC, max 6.3A,
normally open/closed
Q24
Connected by user
213
T19
1
2
Alarm indication output signal (L, 230V)
Output triac, 230V AC, max. 10A (<1s),
nominal current: 0,05-1A.
Y1
12
KNX+
KNX-
T14
KNX PL-Link, galvanic
isolation, 40mA rated
T15
To air quality sensor
or remote controller
Ref
D2
GND
+24VDC
NO/NC switch
T3
Connected by user
213
T12
Modbus slave port1 over
RS485, HMI/RU interface
RS485 A+
RS485 B-
RS485 Ref
12
3
Modbus RTU
Figure 8.8.1. Connection for outside dampers
WARNING: High voltage on output.
8.9. CONNECTION OF REMOTE CONTROL PANEL, KNX ROOM SENSORS AND MODBUS
(VERSION S300)
