18 | EN SMARTY v2023.2

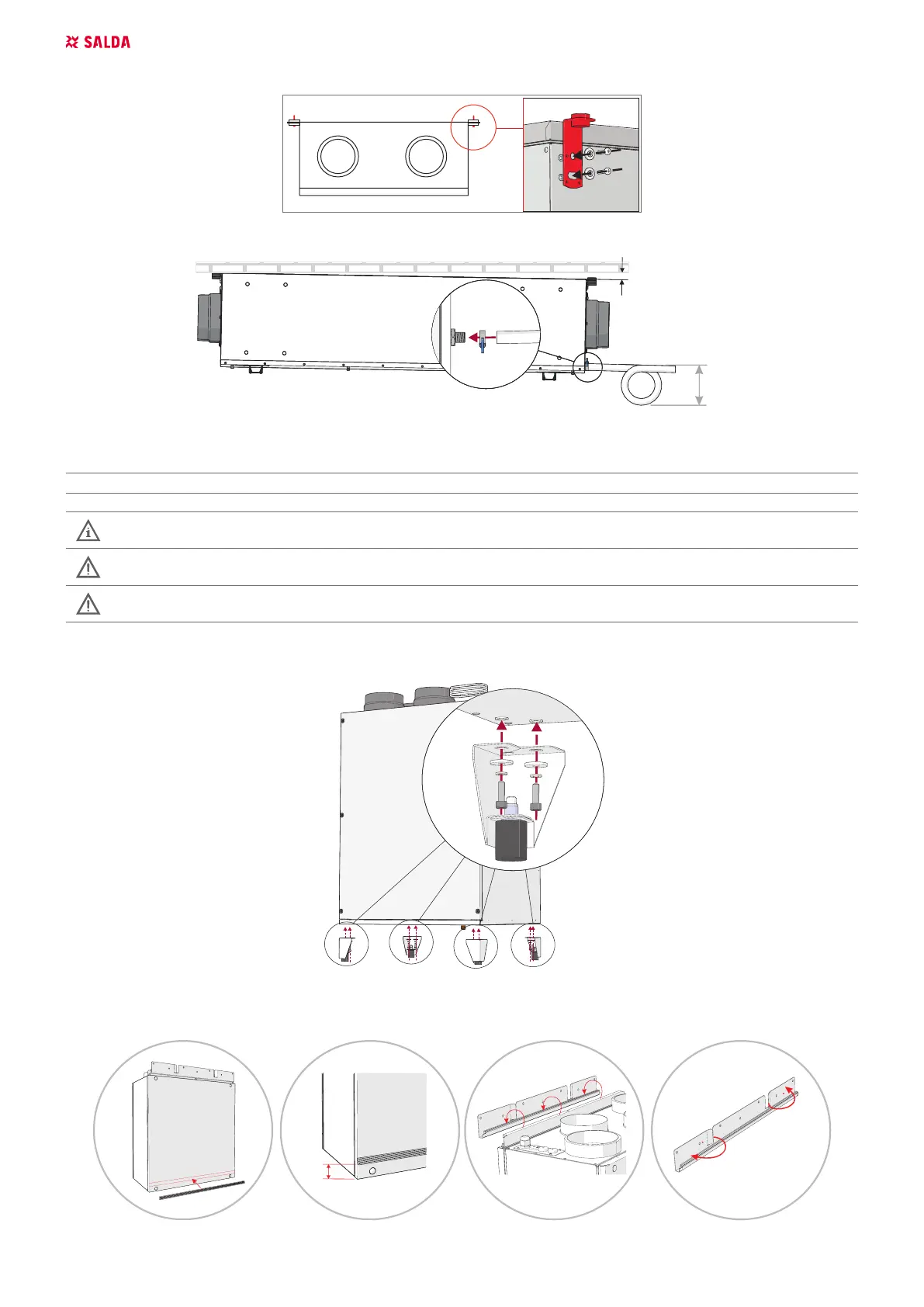

5.5.2. CEILING-MOUNTING OF THE UNIT (SMARTY XP)
Figure 5.5.2.1. Ceiling-mounting of the unit
⌀
D
α
α
⌀D
H
Figure 5.5.2.2. Drainage system installation (øD=150 mm) (only for units with condensation heat exchanger)
SMARTY 2X P SMARTY 3X P / 4X P
α
[mm] 9 11
NOTE. If the collector is located upstream, install the system with the condensate pump (o󰀨ered as an accessory).
The diameter of the condensate pipe can't be reduced.
The condensate drain connection and siphon MUST be visible and easily serviced, otherwise the warranty will not apply!
5.5.3. FLOOR MOUNTING (SMARTY XV)
Figure 5.5.3.1. Floor mounting (optional accessory required)
5.5.4. WALL-MOUNTING OF THE UNIT (SMARTY XV)
b
30 mm
a c d
90
90
Figure 5.5.4.1. Mounting on the wall
