Salda Smarty 2X V Series Mounting And Installation Instruction

EN | 27SMARTY v2023.2
SMARTY XP:

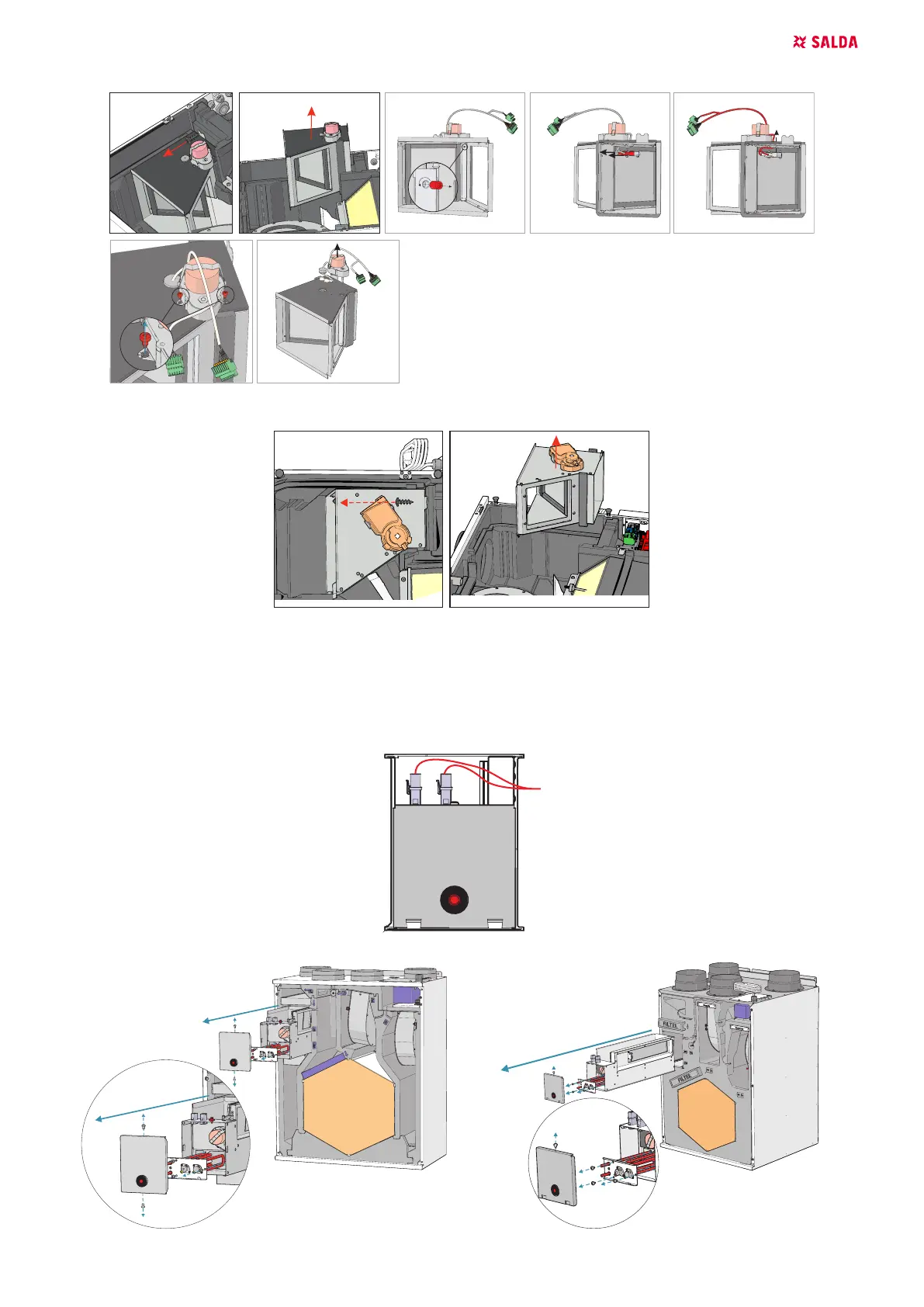

Figure 6.7.1. Smarty XP bypass damper
Figure 6.7.2. Smarty XP S300 bypass damper
SMARTY XV (version 1.1 / 1.2):
• If the manual protection is activated, check for a fault before pressing the RESET button. If the fault is identied after it has been rectied, press
the RESET button using a screwdriver or similar object.
• Bypass damper and pre-heater are mounted on one block. The pre-heater shall be disconnected by removing X29 connector. The bypass damp-
er shall be disconnected by removing X25.
X29
X25
Figure 6.7.3. Bypass damper and pre-heater on one block
Figure 6.7.4. Smarty 2X V 1.1/1.2 Figure 6.7.5. Smarty 3X V / 4X V F2 1.1/.12
