To select all channels, select one and then press CTRL-A.

Hiding Channels

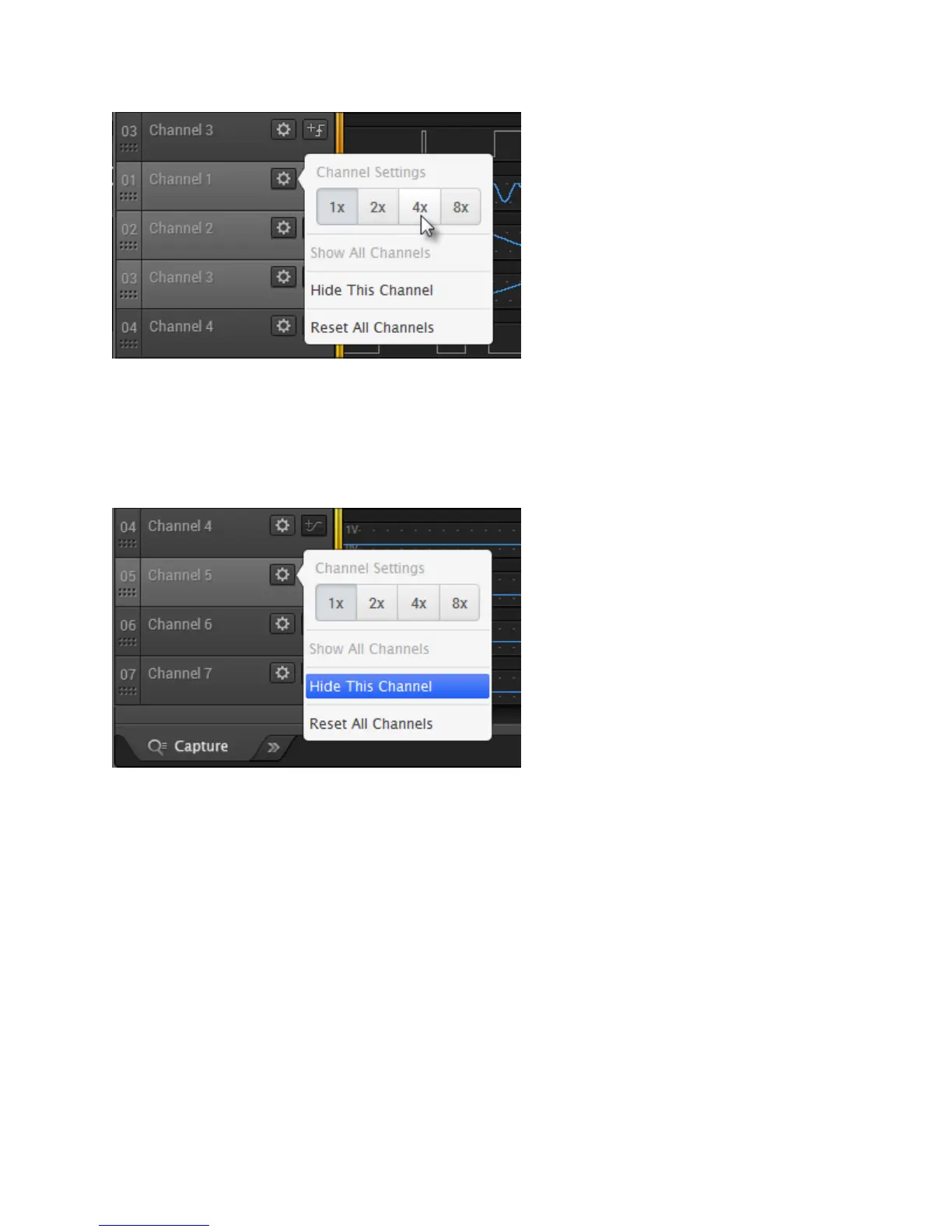

To hide a channel, click the channel settings icon (gear) and select Hide Channel.

You can hide multiple channels at the same time by selecting multiple channels and then selecting Hide

Channel on one of them.

To restore this and other hidden channels, click on a channel's settings icon and select Reset All

Channels.

Questions and Answers:

Need help?

Do you have a question about the Saleae Logic 8 and is the answer not in the manual?

General

Channels	8
Digital Sample Rate	100 MS/s
Analog Sample Rate	10 MS/s
Analog Bandwidth	5 MHz
Analog Resolution	12 bits
Input Impedance	1 MΩ \|\| 10 pF
Connectivity	USB 2.0
Operating System Compatibility	Windows, macOS, Linux
Power Supply	USB Powered
Logic Level	1.2V to 5.5V
Digital Voltage Range	0V to 5.5V
Supported Protocols	I2C, SPI, UART, CAN
