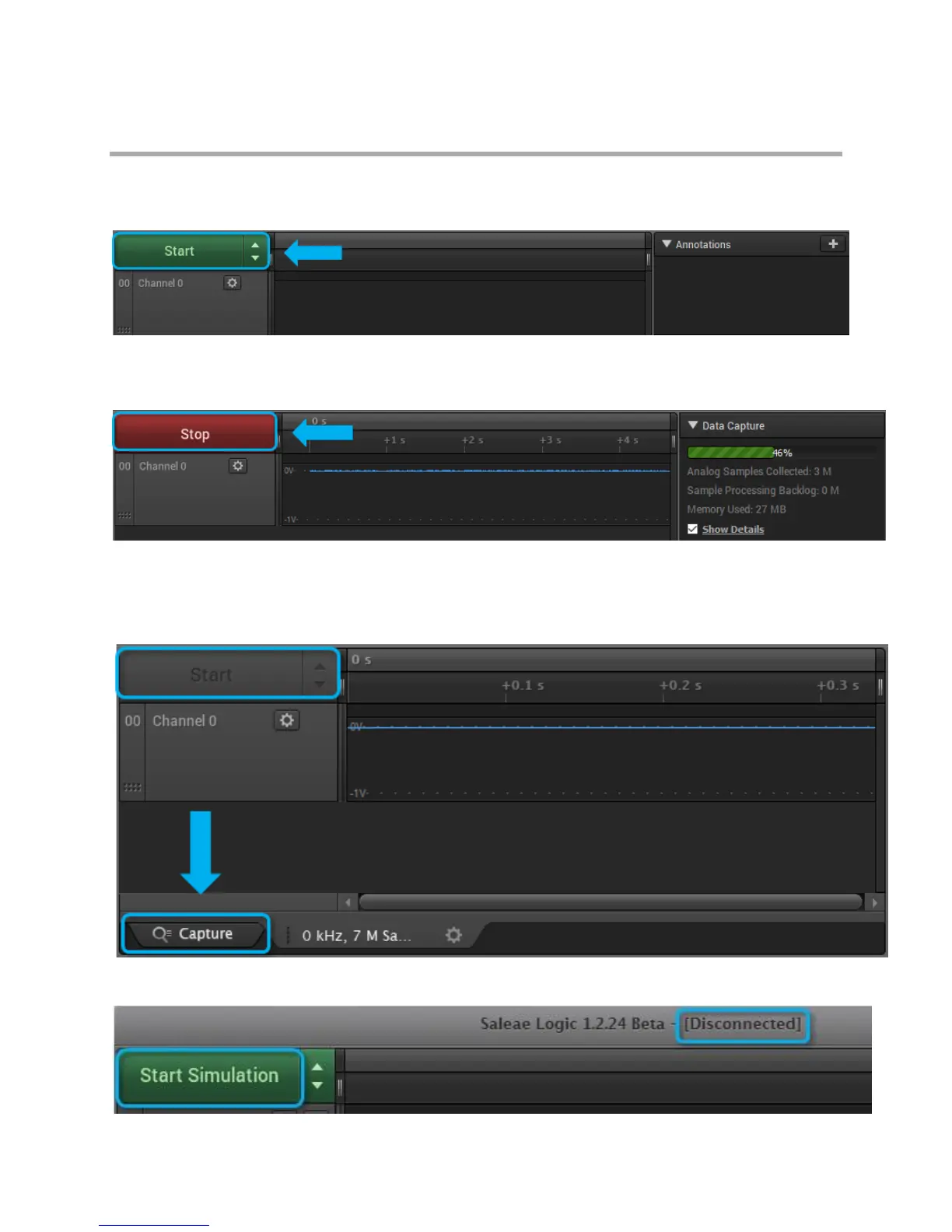

Collecting Data & Device Settings
Collecting Data
To start collecting data, press
the Start button.
After the capture has started you can stop it before it finishes if you like - this will retain the data to that
point.
If the Start button is gray and cannot be clicked, that means you are not on the capture tab. Look at the
bottom of the window, and on the left, you should see the capture tab. Click that tab and then take your
capture.
If the Start Simulation appears instead of Start, it means the Logic hardware is disconnected.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Saleae Logic 8 and is the answer not in the manual?

Saleae Logic 8 Specifications

General IconGeneral
Channels8
Digital Sample Rate100 MS/s
Analog Sample Rate10 MS/s
Analog Bandwidth5 MHz
Analog Resolution12 bits
Input Impedance1 MΩ || 10 pF
ConnectivityUSB 2.0
Operating System CompatibilityWindows, macOS, Linux
Power SupplyUSB Powered
Logic Level1.2V to 5.5V
Digital Voltage Range0V to 5.5V
Supported ProtocolsI2C, SPI, UART, CAN
