Saleae Logic 8 User Manual

Page 32 of 69

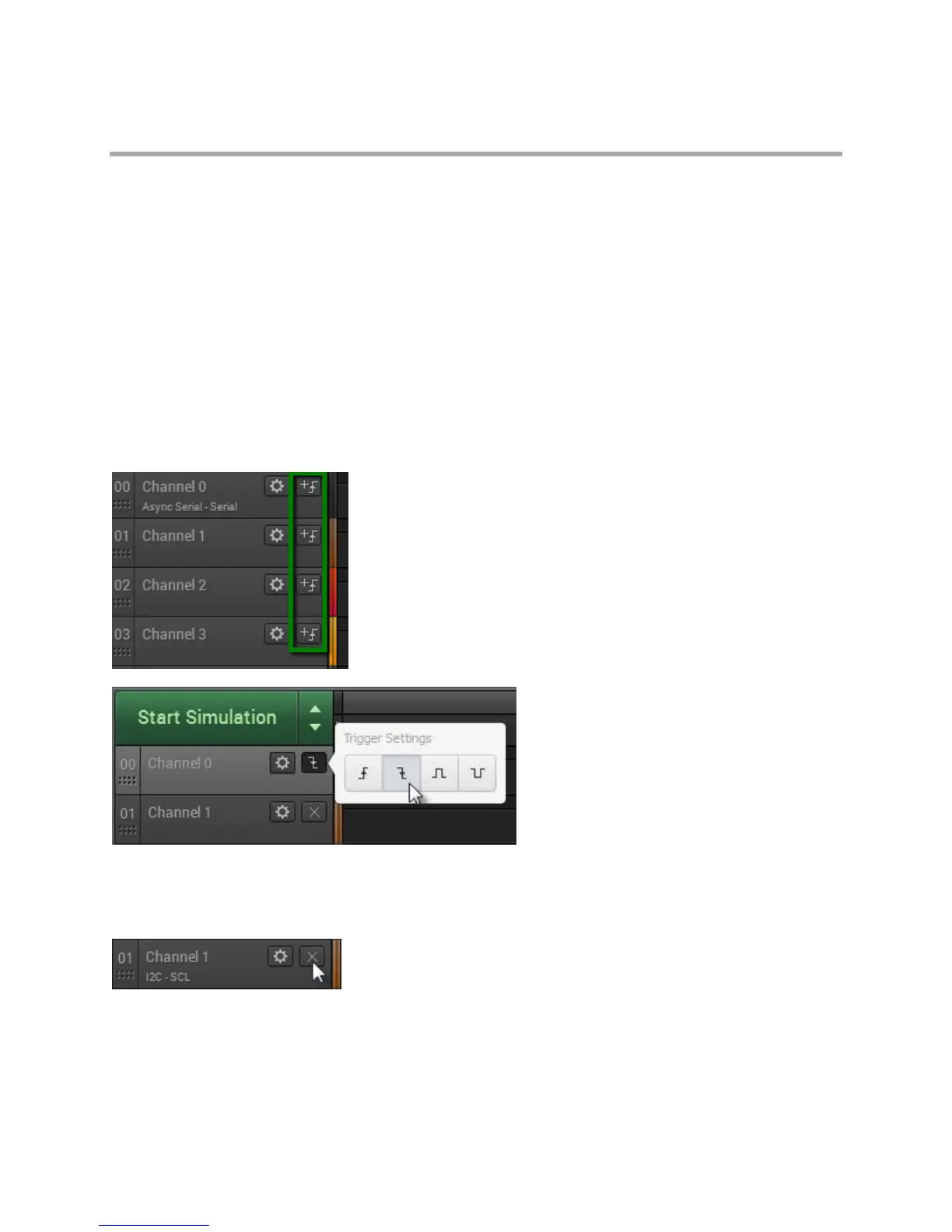

Using the Trigger
Using the Trigger
The trigger can be used to start capturing data after a specified digital event occurs.
Two types of triggers are supported: Trigger on Edge and Trigger on Pulse Width.
The trigger can be used to trigger on an event from any channel. To move the event trigger to a different
channel, first remove it using the steps at the bottom of this page, and then add it to a different channel.
Trigger on Edge
To trigger on an edge (high to low, or low to high digital transition), click the +Trigger button on the
desired channel and select the positive or negative edge.
If desired, you can also require other channels to be either high or low during a previously selected edge.
After selecting an edge, note that other channels will display a button with an "X" (indicates "don't care").
To require a high or low, click this button and select high or low.

Saleae Logic 8 Specifications

General

Channels	8
Digital Sample Rate	100 MS/s
Analog Sample Rate	10 MS/s
Analog Bandwidth	5 MHz
Analog Resolution	12 bits
Input Impedance	1 MΩ || 10 pF
Connectivity	USB 2.0
Operating System Compatibility	Windows, macOS, Linux
Power Supply	USB Powered
Logic Level	1.2V to 5.5V
Digital Voltage Range	0V to 5.5V
Supported Protocols	I2C, SPI, UART, CAN
