Saleae Logic 8 User Manual

Page 46 of 69

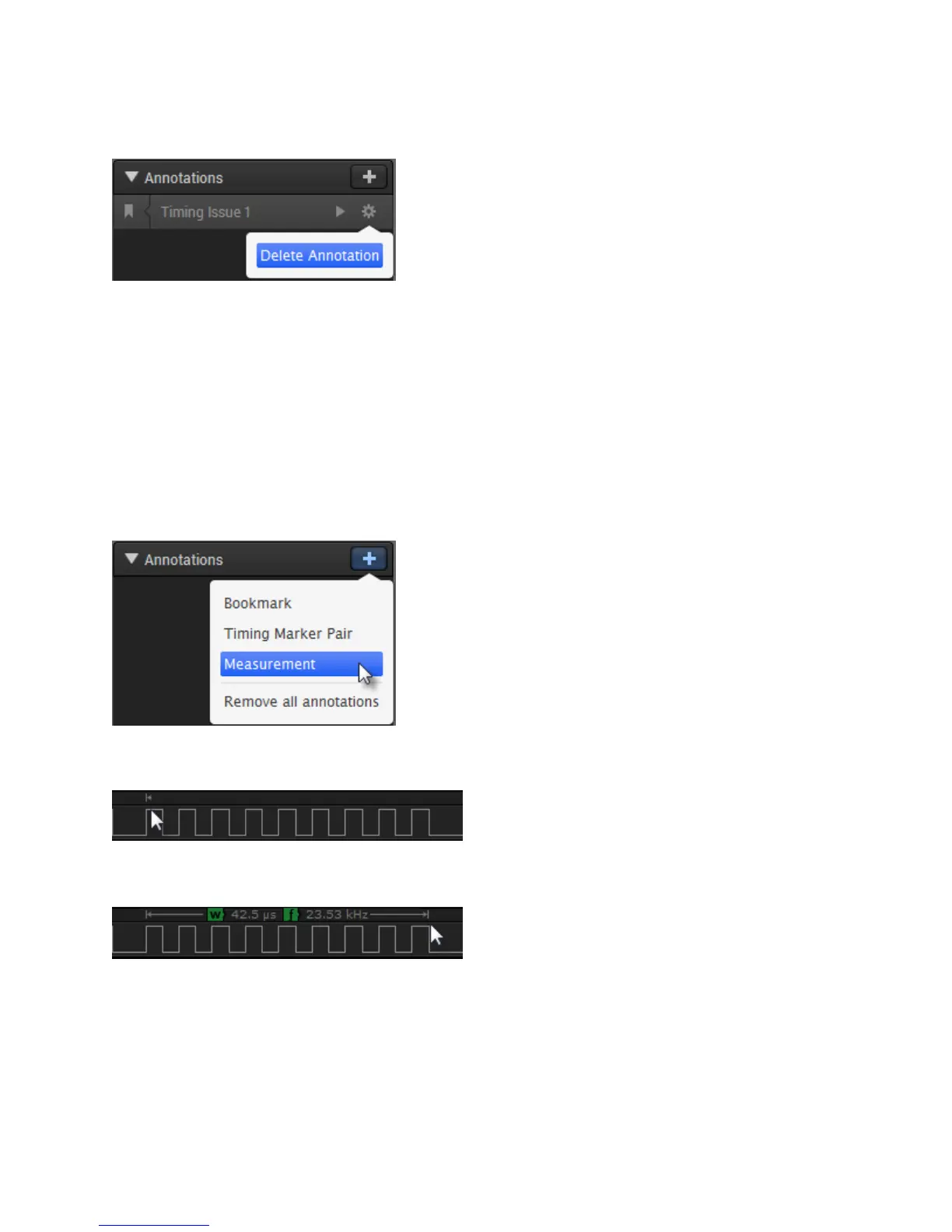

To delete a bookmark, select its settings icon (gear) and choose Delete Annotation.
Using Measurements (Persistent)
Adding a Measurement allows you to add a permanent annotation to your data for later reference. In
addition, Measurement Annotations allow for more sophisticated computations than the temporary
measurements that always appear at the mouse cursor. For example, you can compute the average duty
cycle across thousands of pulses.
To add a Measurement Annotation, click the Plus button on the Annotations panel and select
Measurement.
Use your mouse to click the starting point of your measurement.
Next, click the desired ending point.
To change which measurements are displayed, right-click anywhere inside the measurement area.

Saleae Logic 8 Specifications

General

Channels	8
Digital Sample Rate	100 MS/s
Analog Sample Rate	10 MS/s
Analog Bandwidth	5 MHz
Analog Resolution	12 bits
Input Impedance	1 MΩ || 10 pF
Connectivity	USB 2.0
Operating System Compatibility	Windows, macOS, Linux
Power Supply	USB Powered
Logic Level	1.2V to 5.5V
Digital Voltage Range	0V to 5.5V
Supported Protocols	I2C, SPI, UART, CAN
