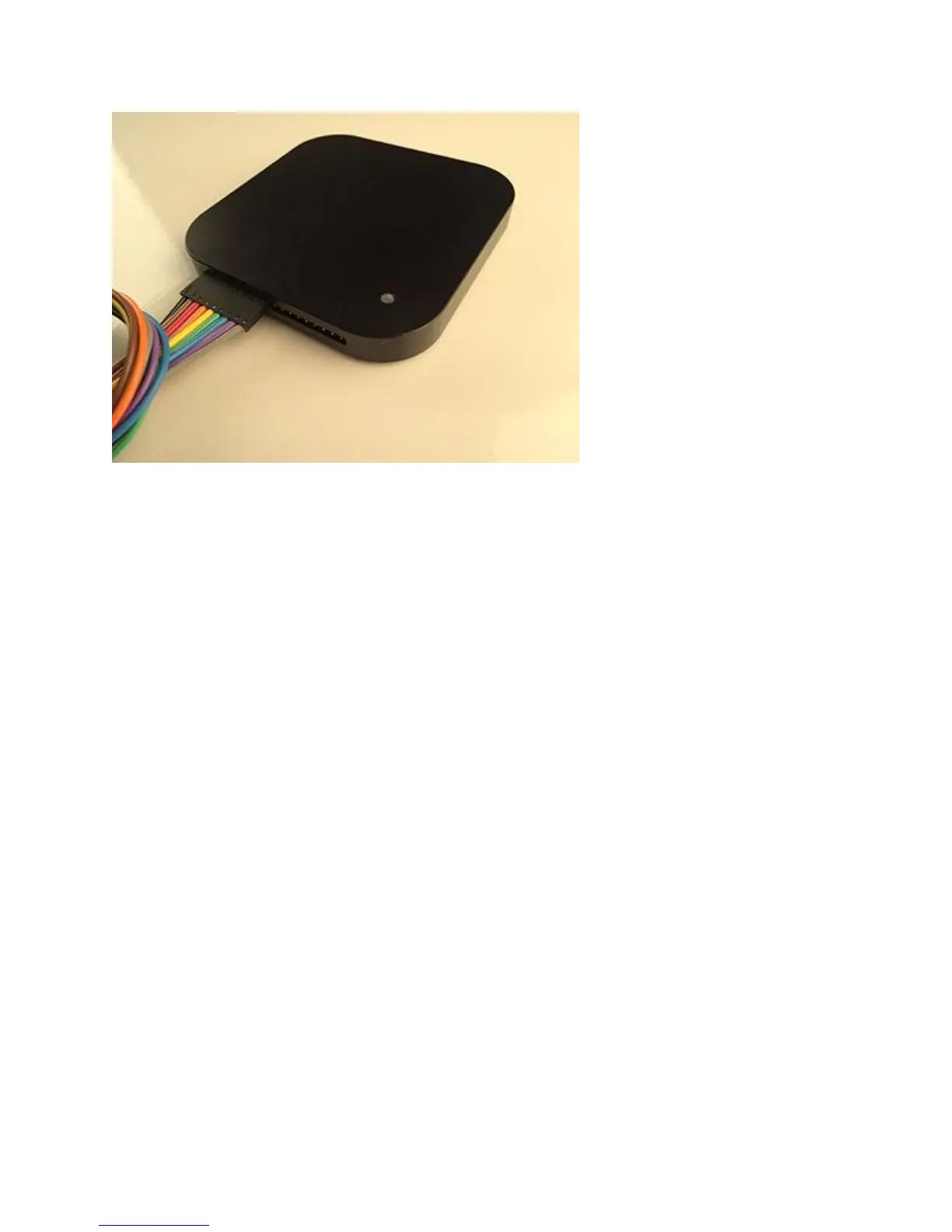

Signal Integrity with the 1x9 Harness
When using Logic16 with more than 8 inputs, we recommend connecting the second ground line—
especially if using higher voltages (5V). That will help reduce cross-talk during any simultaneous
switching events.
Test Clips
All Logic products come with enough test clips for every test lead. These test clips have two metal pins
that can be inserted into the connector at the end of each test lead. Only one of the metal pins needs to
be connected to a single test lead connector.
