Navigating Your Data - Zooming, Panning, Rearranging, &

Resizing

Zooming In and Out

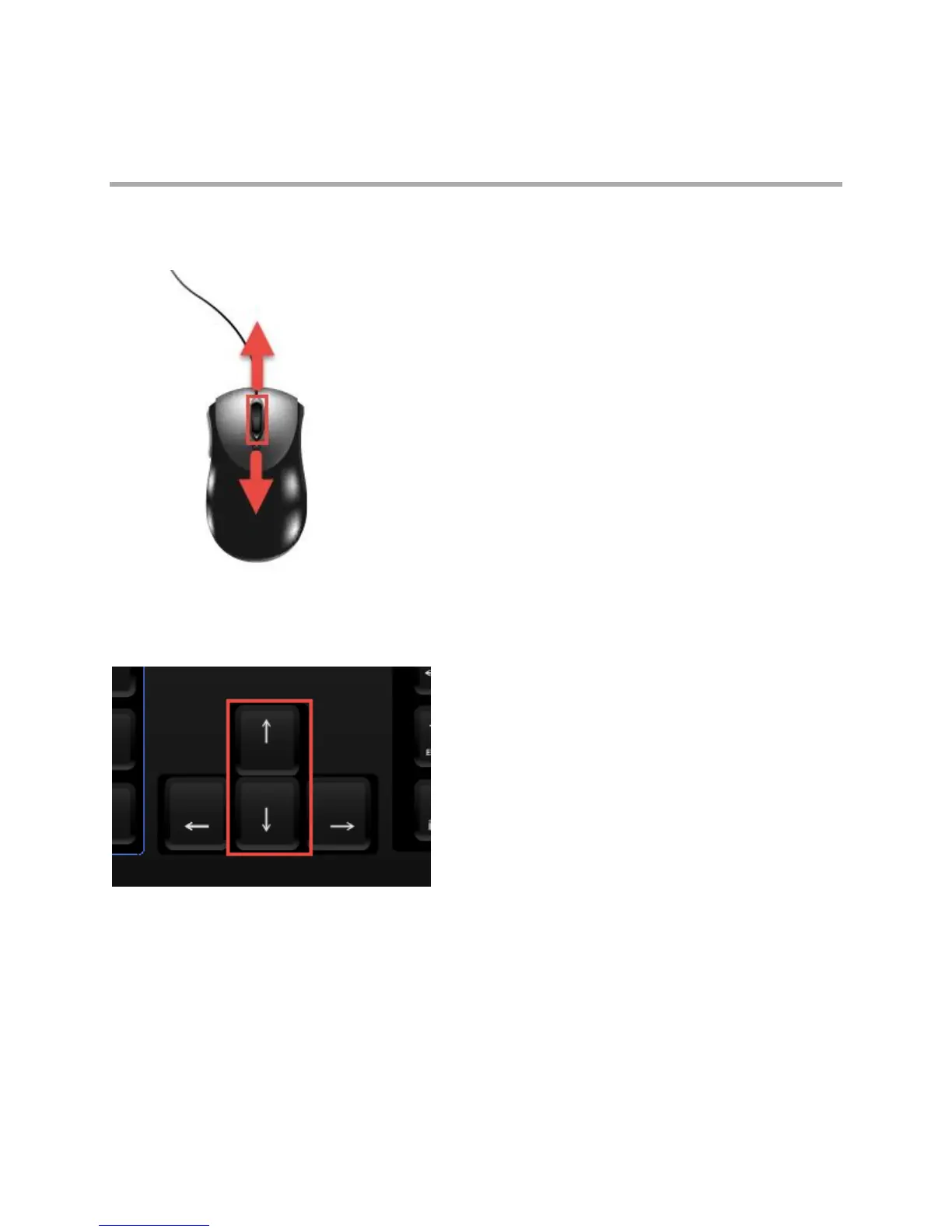

To zoom in and out, use your mouse wheel.

You can also use the up/down arrow keys or the plus/minus keys.

Panning Left and Right

To pan left and right, click and drag the display.
