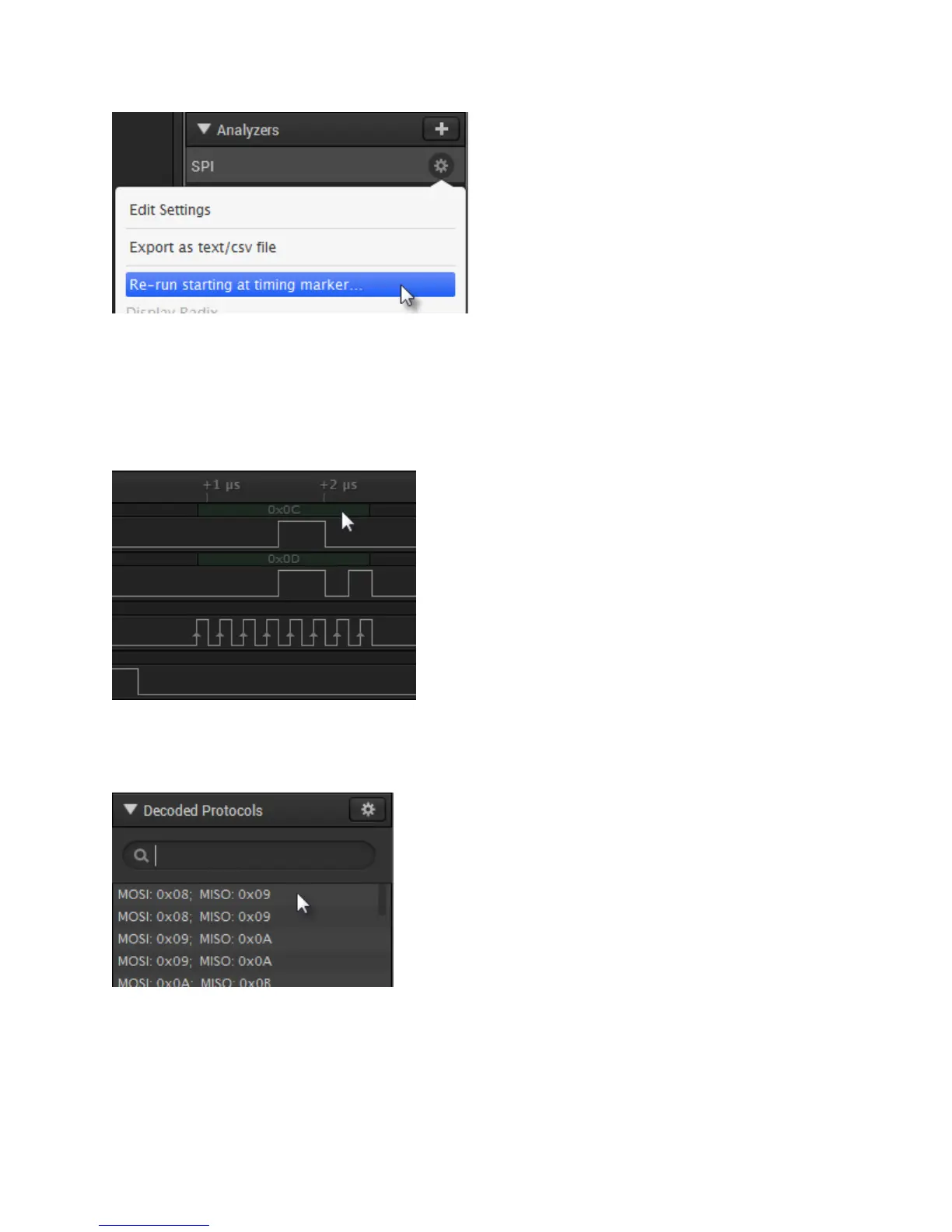

Viewing Protocol Analyzer Results
When a protocol analyzer successfully decodes data, colored regions will appear above the digital
waveform where a byte or other bit-field is transmitted. Be sure to zoom in far enough to see the
transitions making up a particular byte or bit-field.
In addition to displaying results over the digital waveform (in context), results are displayed in a list in the
Decoded Protocols panel on the right of the software.
Clicking an individual item in this list will zoom to that location in the digital waveform.
Searching Analyzer Results

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Saleae Logic 8 and is the answer not in the manual?

Saleae Logic 8 Specifications

General IconGeneral
Channels8
Digital Sample Rate100 MS/s
Analog Sample Rate10 MS/s
Analog Bandwidth5 MHz
Analog Resolution12 bits
Input Impedance1 MΩ || 10 pF
ConnectivityUSB 2.0
Operating System CompatibilityWindows, macOS, Linux
Power SupplyUSB Powered
Logic Level1.2V to 5.5V
Digital Voltage Range0V to 5.5V
Supported ProtocolsI2C, SPI, UART, CAN
