Page 68 of 69
Connector Dimensions
Below are several recommendations for integrating the Saleae devices into new designs.
1) Add 4x2 male headers to your PCB and use the Saleae accessory cable "Logic-to-2x4 Header (Gen
2)" to connect any of the current Saleae logic analyzers to your circuit. Accessories can be purchased
here.
The Gen 2 accessories are compatible with these devices:
Logic 4
Logic 8
Logic Pro 8
Logic Pro 16
The Gen 1 accessories are compatible with these devices:
original Logic (discontinued)
original Logic16 (discontinued)

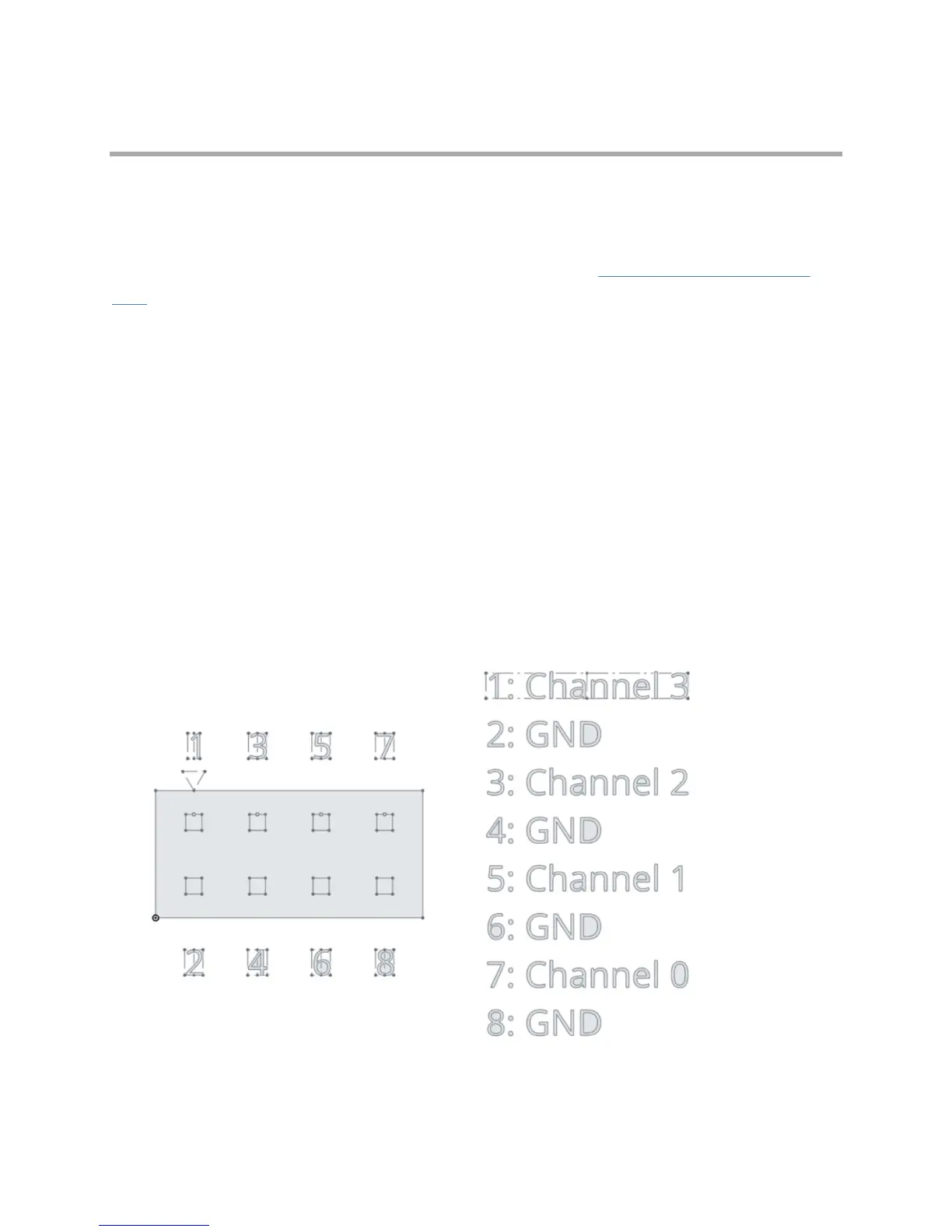

When using the Gen 2 Logic-to-2x4 header adapters, please use this pin out on your board (top view):

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Saleae Logic 8 and is the answer not in the manual?

Saleae Logic 8 Specifications

General IconGeneral
Channels8
Digital Sample Rate100 MS/s
Analog Sample Rate10 MS/s
Analog Bandwidth5 MHz
Analog Resolution12 bits
Input Impedance1 MΩ || 10 pF
ConnectivityUSB 2.0
Operating System CompatibilityWindows, macOS, Linux
Power SupplyUSB Powered
Logic Level1.2V to 5.5V
Digital Voltage Range0V to 5.5V
Supported ProtocolsI2C, SPI, UART, CAN
