SAMLEX AMERICA INC. | 33
2.4 REMOTE CONTROL EVO-RC-PLUS

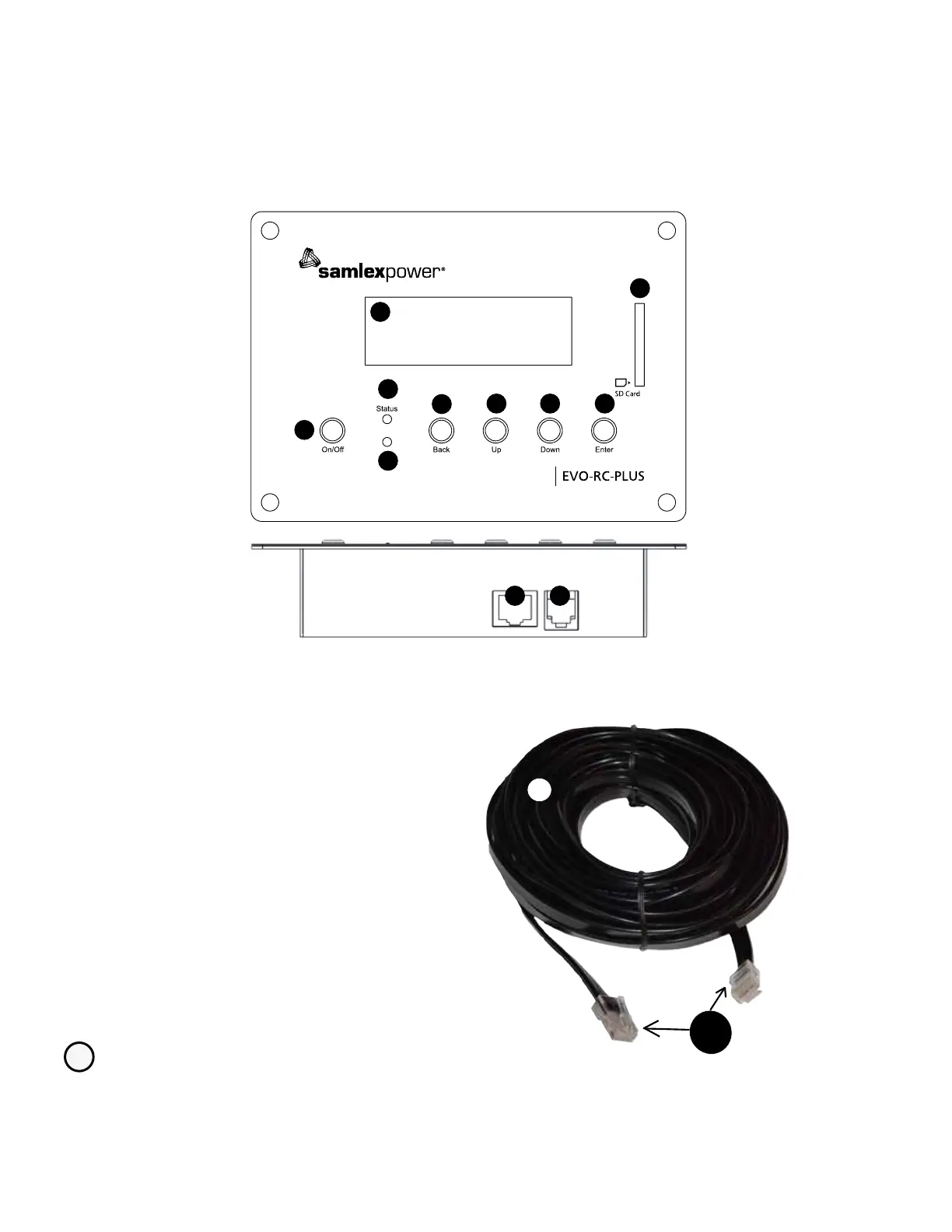

Fig 2.4(a) Optional Remote Control EVO-RC-PLUS
RJ-45
Plug
12
LEGEND for Fig 2.3
1. LCD Screen:
- 4 rows of 20 characters each
- Blue screen with white characters
2. ON/OFF Key
3. Blue LED “Status”
4. Red LED “Fault”
5. Navigation Key “Back”
6. Navigation Key “Up”
7. Navigation Key “Down”
8. Navigation Key “Enter”
9. SD Card Slot – FAT16/32 format, up to 16 GB
10. RJ-45 Jack
11. RJ-12 Jack
12. RJ-45 Data Cable (Straight Wired), 10 m / 33 ft [Fig 2.4(b)]
i
INFO
Refer to more details under Section 1 of
EVO-RC-PLUS Remote Control Manual.
Fig 2.4(b) Cable for Remote Control
SECTION 2 | Components & Layout
Fault
2
5
3
4
6
7
8
9
1
10 11
