48 | SAMLEX AMERICA INC.
SECTION 3 | Installation
i
INFO
For the Reset Button (10b in Figs 2.1 and 3.9.1) to operate, the Inverter has to be in ON condition so that
AC power is available to the internal Line Side of the GFCI.
!
CAUTION!
1. Do not feed the output from the GFCI receptacle to a Panel Board / Load Center where the Neutral is
bonded to the Earth Ground. This will trip the GFCI.
2. If an extension cord is used, please ensure that the cord is 2-Pole Grounding Type (3 pin).
!
ATTENTION!
1.
N'alimentent pas la sortie de la prise GFCI à un Panel de sélection / Charger Centre où la
position neutre est lié à la terre. Ce qui déclenche le disjoncteur.
2. Si une rallonge est utilisée, veuillez vous assurer que le cordon est mise à la terre à 2 pôles (3 broches)
3.6.2 AC Input and Output Connections and Layout Arrangement for EVO-1212F-HW and
EVO-1224F-HW
AC input and output connections for EVO-1212F-HW and EVO-1224F-HW are shown in Figs 3.9.2(a) and 3.9.2(b)
below. (Extracted from the layout at Fig 2.3).
28
19a
20
26 25 24 23 22 21
27
19b

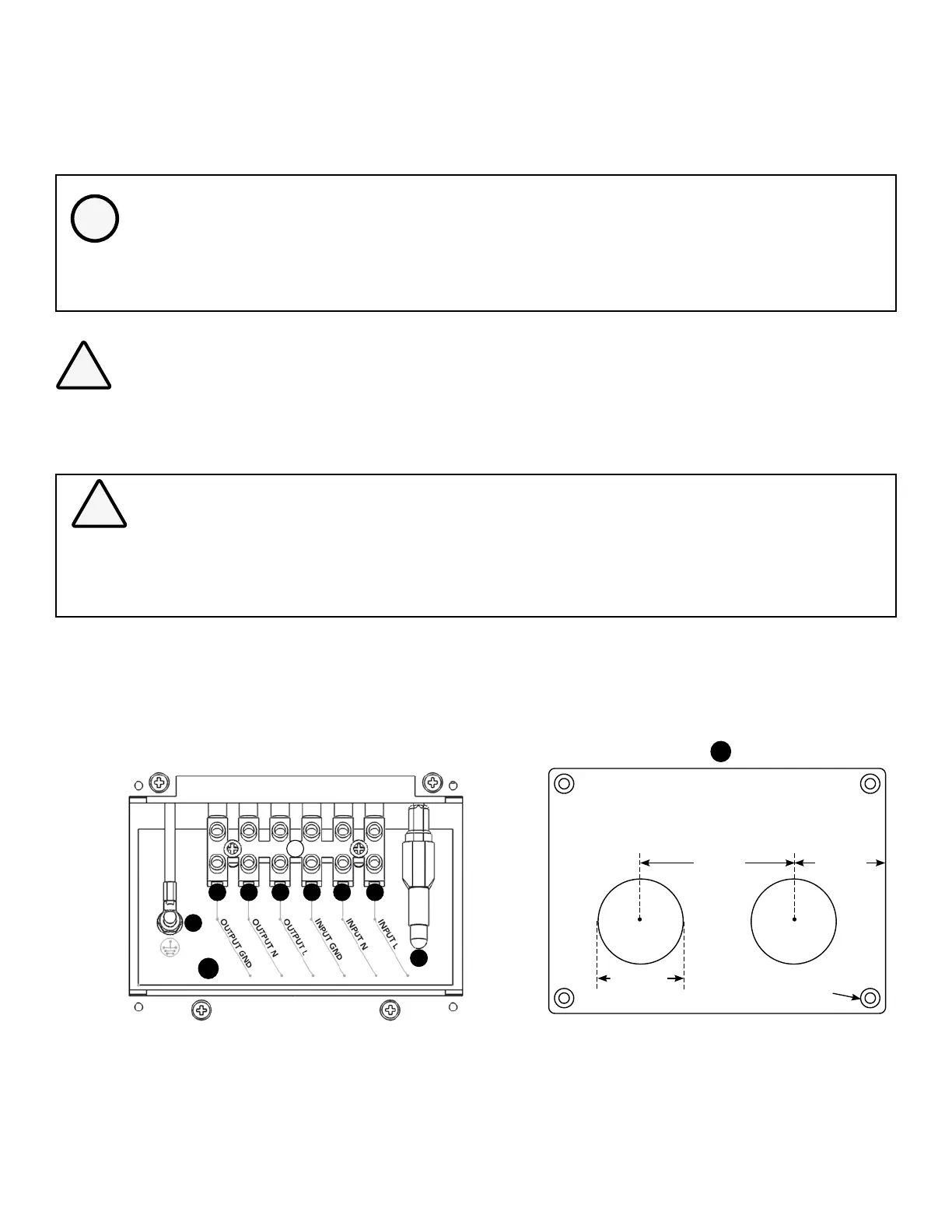

Fig 3.9.2(a) Pocket for AC Input and
Output Connections for EVO-1212F-HW
and EVO1224F-HW
Fig 3.9.2(b) Cover Plate for Pocket for
AC input and Output Connections
2 holes (27.8 mm / 1 /
32
" diameter) for
3
/
4
"
Trade Size Fitting for cable or conduit entry.
50 mm 30 mm
27.8 mm
1 /
32
"
Hole for
M3 screws
