Samson 3730-2 User Manual

EB 8384-2 EN 143
Appendix
Linear (select characteristic: 0)
0
50
100
050 100
Travel/angle[%]
Setpoint[%]
Equal percentage (select characteristic: 1) Reverse equal percentage (select characteristic:
2)
0
50
100
050 100
Travel/angle[%]
Setpoint[%]
0
50
100
050 100
Travel/angle[%]
Setpoint[%]

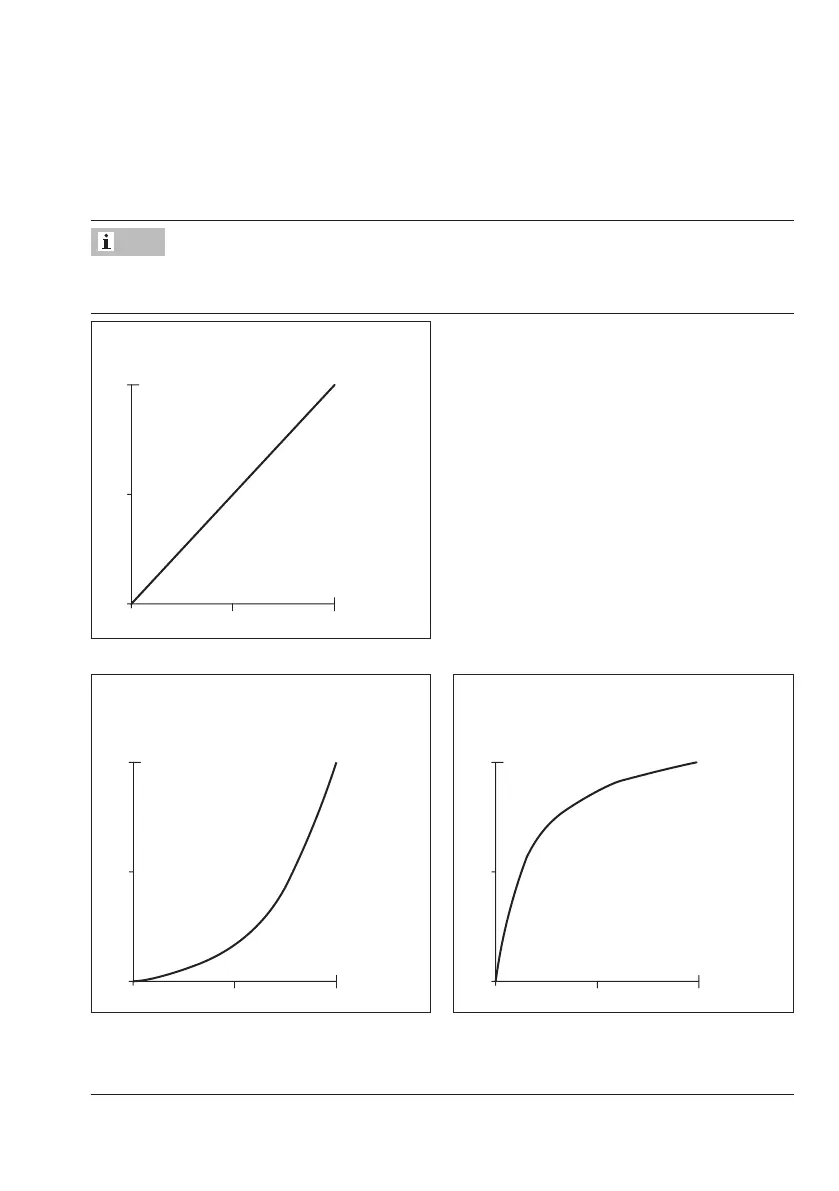

11.5 Selecting the characteristic
The characteristics that can be selected in Code 20 are shown in the following in graph form.
A characteristic can only be dened (user-dened characteristic) using a workstation/
operating software (e.g. TROVIS-VIEW).
Note
