EB 8355-1 EN 17
Mounting on control valves
Air purging of the spring chamber
If the spring chamber of the actuator is to be
purged with the exhaust air from the
positioner,usepiping(Table3)toconnect
the spring chamber (with "actuator stem
extends" version) to the connection block. To
do so, remove the stopper from the
connection block. For an actuator with fail-
safe action "actuator stem retracts" and in
Type3277-5Actuatorswithaneffective
diaphragmareaof120cm²,theexhaustair
from the positioner is connected to the spring
chamber over an internal hole.
When the valve is installed, the side cover of
the actuator must be mounted such that the
vent plug points downward.
NOTICE
!
1.2
D2
D1
15
Vent plug
Vent plug must point
downward when the
valve is installed
View onto the signal pressure connection
Left attachment Right attachment
Cover
Switchover plate
Intermediateplate(15)
Clamp (1.2)
Signal pressure
borehole
240cm²
350cm²
355cm²
700cm²
120cm²
Type3277
Type3277-5

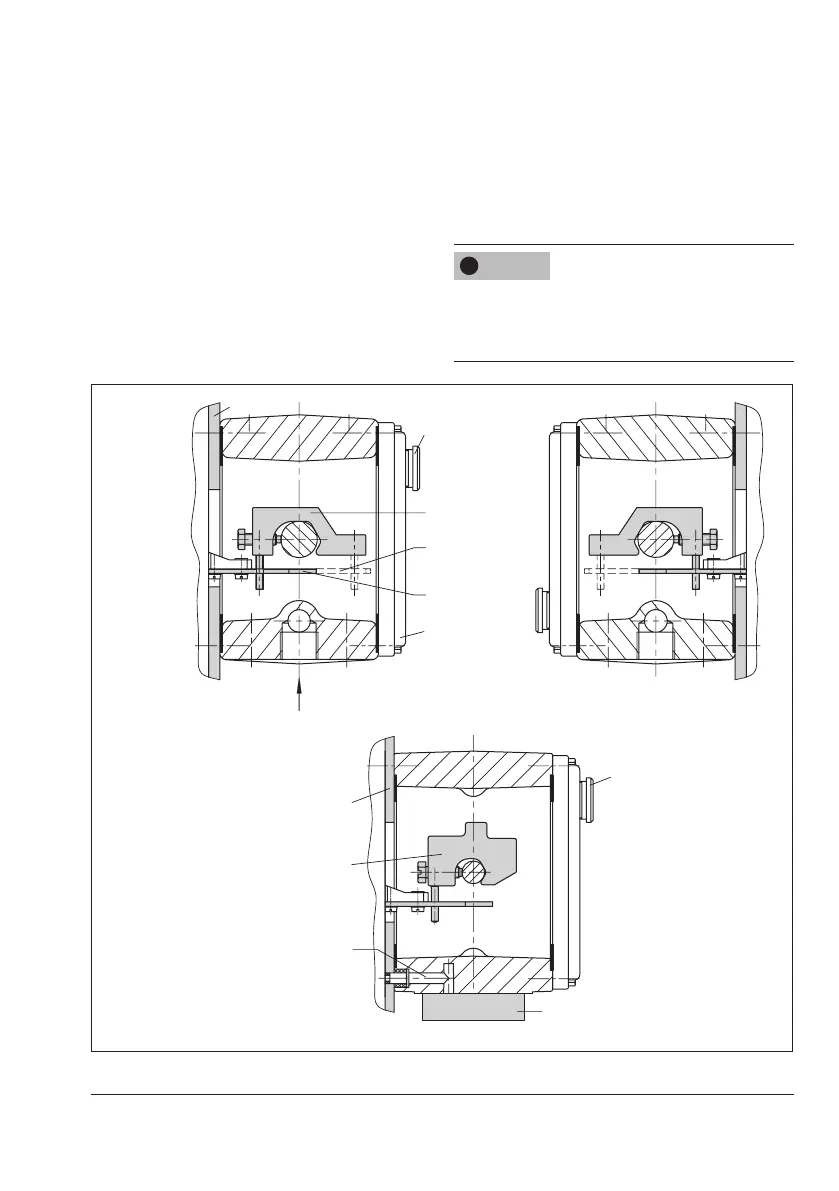

Fig.3: Mounting the clamp
