5-4 EB 5857 EN
Installation
L, N 230VACor
24VAC
(depending on
version)
WHBN GN
N
eL
aL
–+
L
Controller
Actuator
Actuator cable Connection
WH (white) N
BN (brown) Controller – (al)
GN(green) Controller + (el)

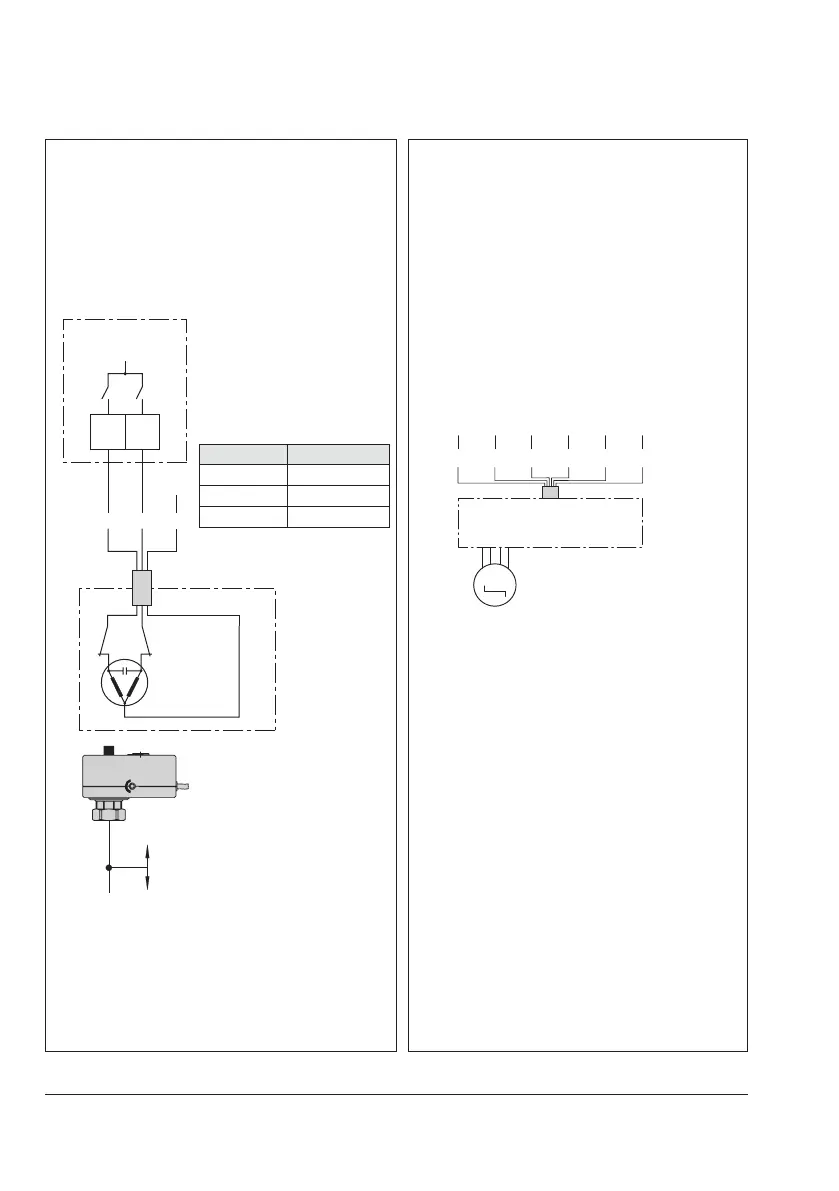

Fig.5-3: Electrical connection · Three-step
version
OR Orange
YE Yellow
RD Red
BK Black
BN Brown
GN Green
Input Output
(position feedback)
M
OR YE RD BK BN
GN
24 V AC/DC
0...10 V
0...10 V
++
L/+
N/– ––
Fig.5-4: Electrical connection · Version with
positioner
