8.4 Operation using memory pen
See uEB6661.
ThememorypencanbeloadedwithdataconguredinTROVIS-VIEWandtheconguration
data transferred to one or several devices of the same type and version.
Additionally, the data from the device can be written to the memory pen. This allows the con-
gurationdatatobesimplycopiedfromonedeviceandloadedontootherdevicesofthe
same type and version.
The data logging function also allows operating data to be recorded.
On inserting a memory pen that is empty or that contains data from another type of device
or another version of the same device into the serial interface port of the actuator, the data
from the actuator are uploaded to the memory pen regardless of the status of the memory
pen and any other data on the memory pen will be overwritten.

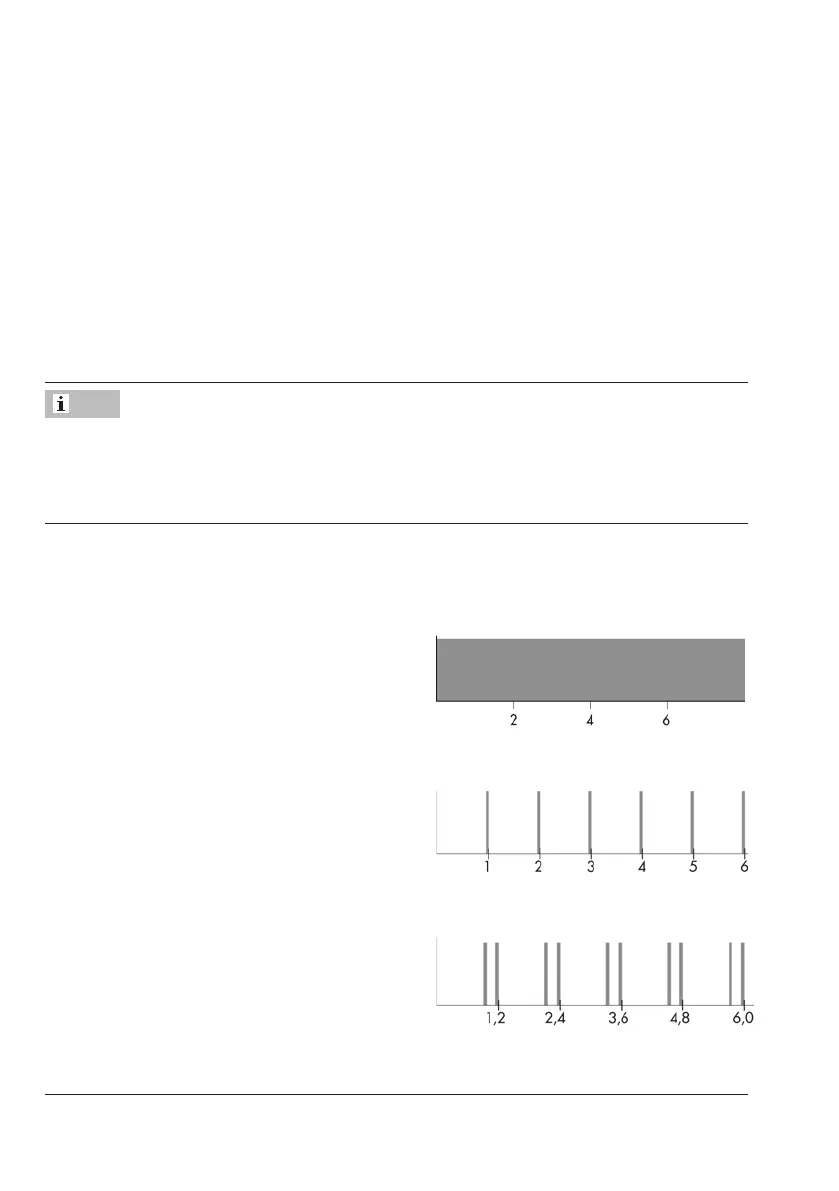

LED blinking pattern for the memory pen
Memory pen actions and errors are indicated at the yellow LED on the actuator.
− Memory pen action completed
On
Off
Time in s
− Preparing to read data from memory
pen
On
Off
Time in s
− Preparing to write data to memory pen
On
Off
Time in s
Note
