Samson 5857 - Characteristic Types

EB 5857 EN 16-9
Annex A (conguration instructions)

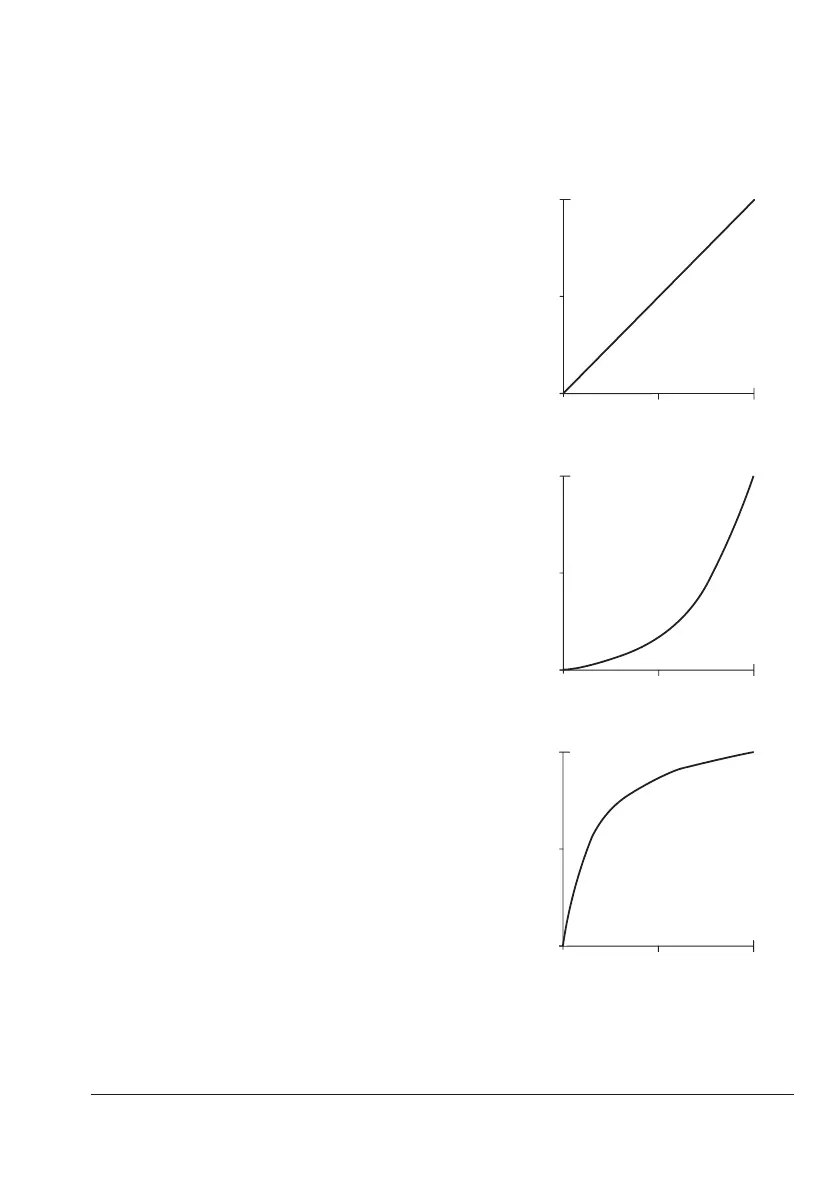

Characteristic types
− Linear
The travel is proportional to the input signal.
Travel
Input signal
0
50
100
050 100
Yin%
Xin%
− Equal percentage
The travel is exponential to the input signal.
0
50
100
050 100
Input signal
Travel
Yin%
Xin%
− Reverse equal percentage
The travel is reverse exponential to the input signal.
0
50
100
050 100
Input signal
Travel
Yin%
Xin%
− User-dened
Anewcharacteristicbasedonthecharacteristicsetcanbedenedoverelevenpoints.
