Operation
q Trend-Viewer

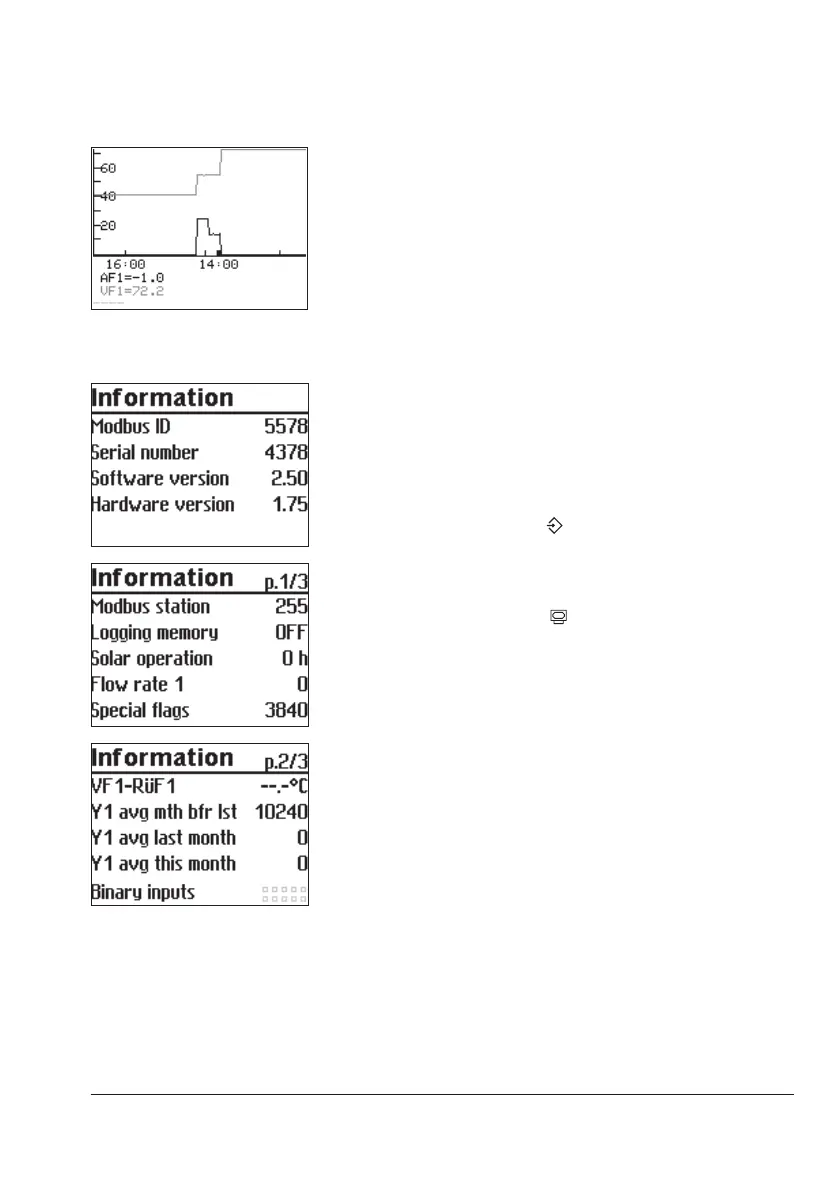

The standard graph shows the data measured at the
outdoor sensor AF1 and ow sensor VF1 plotted over
time.
Extended operating level
The following details on the controller version (device
identication, serial number, software and hardware
versions) and meter bus are displayed in the extended
operating level.
Turn the rotary switch to (settings).
q Enter code number 1999.
¼ Conrm key number.
Turn the rotary switch to
(operating level).
q Select 'Information'.
The additional "meter" page is displayed with
connection status and further meter data for meters 1 to
3 in the "extended operating level" mode when the
meter bus is activated (see AnnexA). In addition, the
respective measuring and limit values are displayed after
conrming the plant scheme when the ow rate and/or
capacity limitation is active.
