24 KA 5578-E EN
Operation

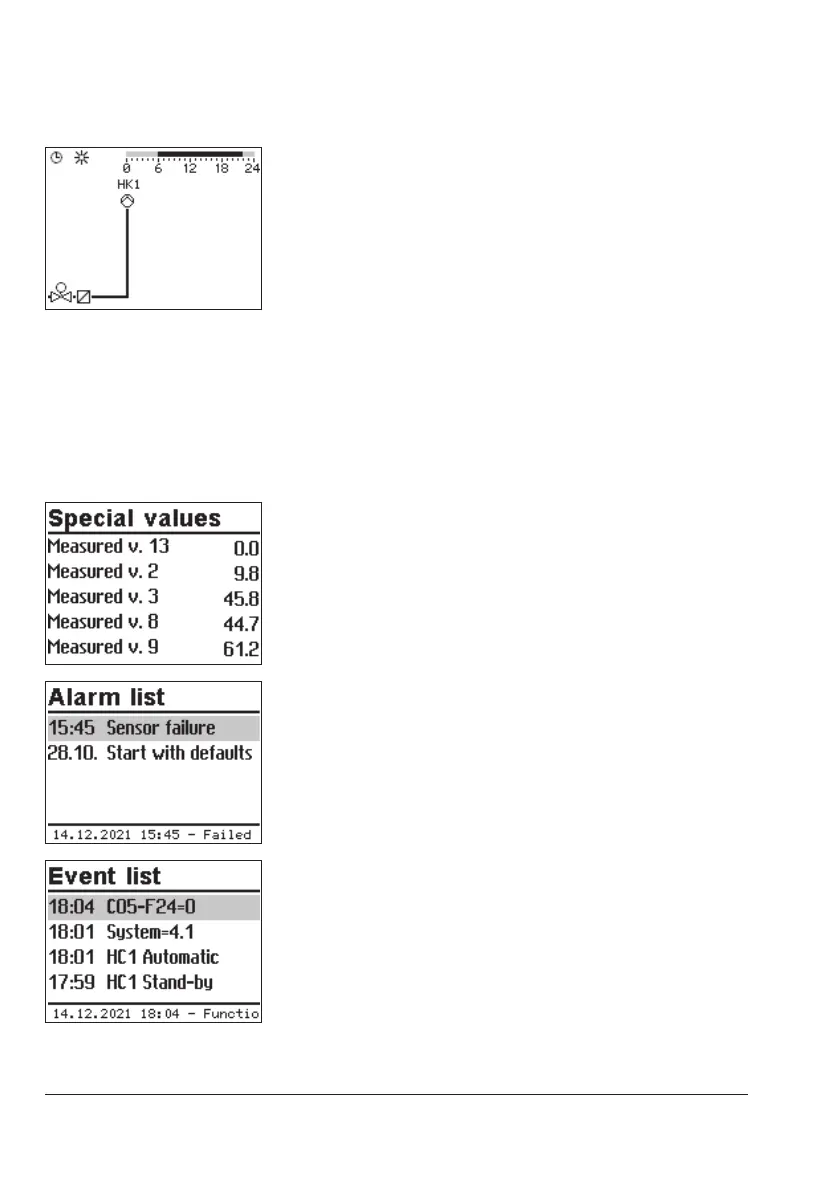

q Times-of-use (depending on the system code number)
– Heating circuit HC1
– Heating circuit HC2
– Heating circuit HC3
– Heating circuit HC11
– Heating circuit HC12
– Heating circuit HC13
– DHW heating
The day mode times is highlighted in black on the time
chart.
Night mode and deactivation times are highlighted in
gray on the time chart.
¼ Measured values, set points and limits of the system
section shown are displayed.
q Special values
Measured values from additional sensor inputs (not
relevant to closed-loop control) or from the 0 to 10V
inputs are displayed.
q Alarm list
The last four alarm entries are listed.
¼ Open the alarm list and select further alarm entries (q).
Further information on an alarm (including time and
date when it occurred) runs across the display.
q Event list
The last four event entries are listed.
¼ Open the event list and select further event entries (q).
Further information on an event (including time and date
when it occurred) runs across the display.
