4.Troubleshooting

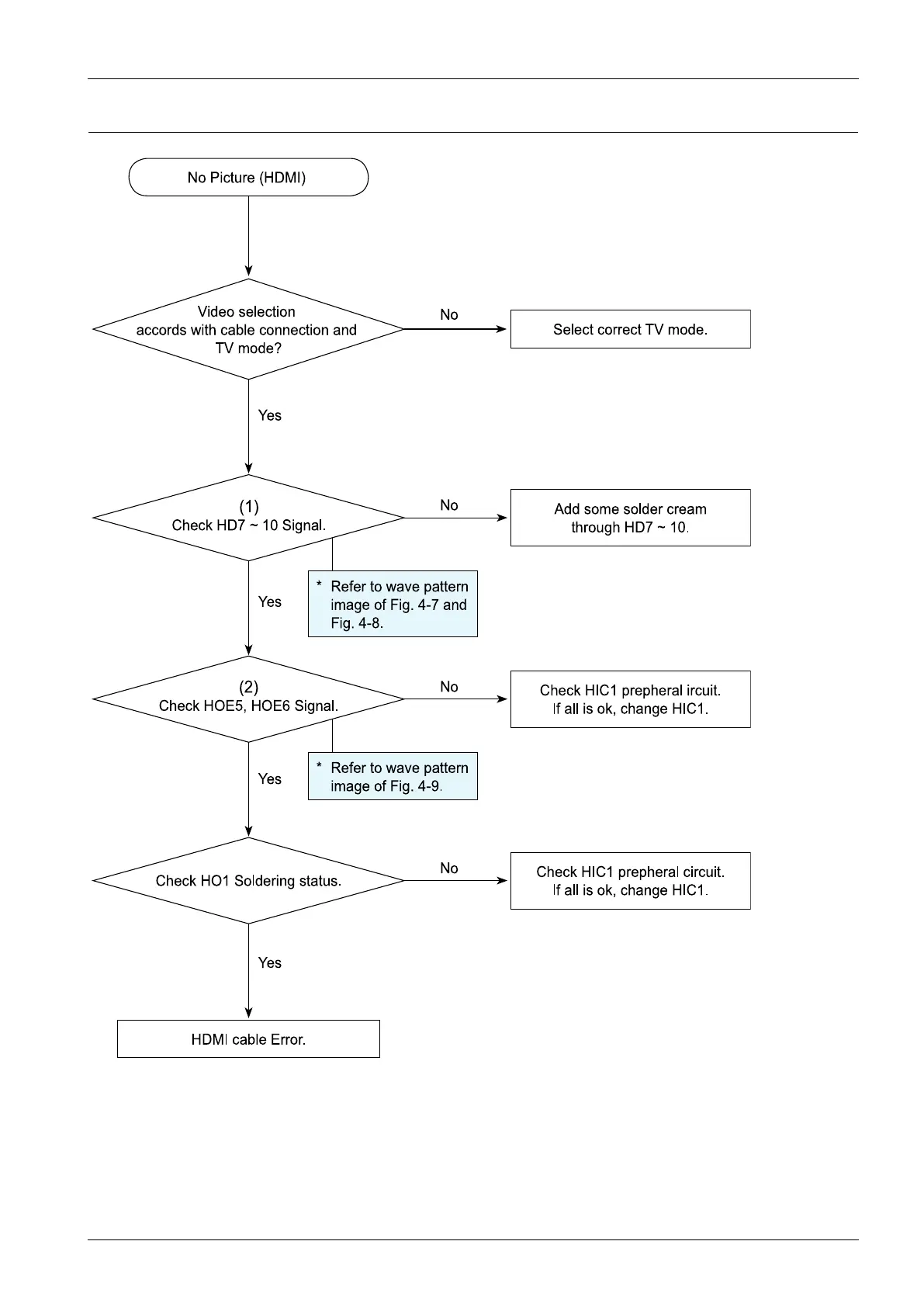

4.1.5.NoPicture(HDMI)
S e le ct corre ct TV mo de .
No
No
Add s ome s olde r cre am
through HD7 ~ 10.
No
Che ck HIC1 pre phera l ircuit.
If a ll is ok, cha nge HIC1.
Ye s
Ye s
Ye s
Ye s
(1)
Che ck HD7 ~ 10 Signa l.
Video s e lection
accords with ca ble co nne ction a nd
TV mode ?
(2)
Che ck HOE5, HOE6 Signa l.
No P icture (HDMI)
HDMI ca ble Erro r.
No
Che ck HIC1 pre phera l circuit.
If a ll is ok, cha nge HIC1.
Che ck HO1 S olde ring sta tus .
* Refe r to wave pa ttern
image of Fig. 4-9 .
* Refe r to wave pa ttern
image of Fig. 4-7 an d
Fig. 4-8 .
