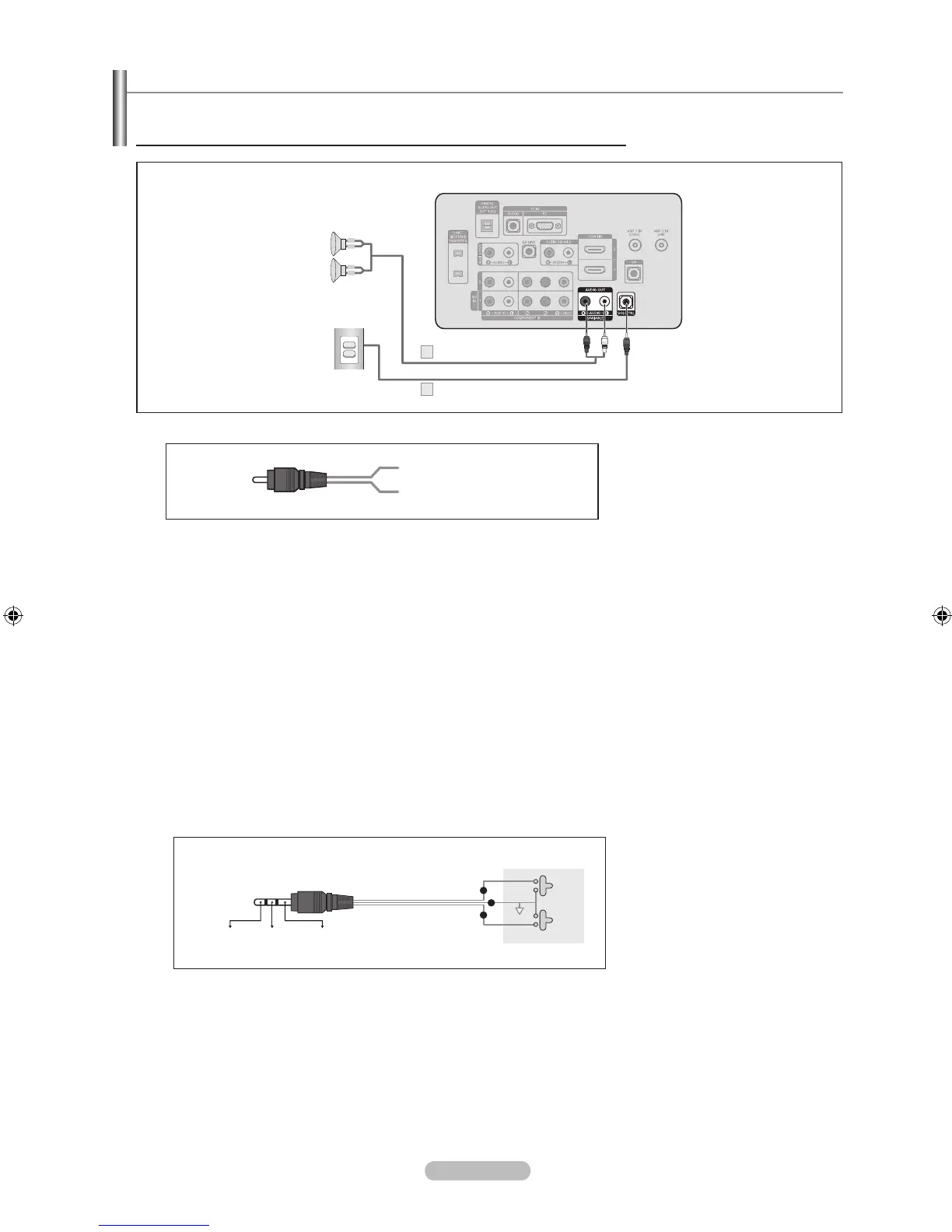

Connecting the Bathroom Speakers
This function is only available when the TV is installed in a hotel.
ConnectingthroughtheVariableOutput(availablewithoutanexternalamplier)
VOL +
VOL -
L -
L +
R -
R +
TV Rear Panel
Speaker
Volume Control Box
Red : Right / White : Left
1
2
1. Connect the VARIABLE AUDIO [R-AUDIO-L] port of the TV to the Bathroom Wall Speakers of the hotel.
2. Connect the [VOL-CTRL] jack of the TV to the Volume Control Box Switch port of the Bathroom Wall of the hotel.
The maximum speaker output is 4W (2W+2W), 8Ω.
Installing the Volume Control
- If you congure the Volume Control Box as shown by the gure, you can control the volume of bathroom speakers.
- The jack that is connected from the Volume Control Box to the TV is a normal Phone jack.
- Volume Control Box switch consists of Tact switch.
Setting the Sub AMP Mode
- 0: Turns the Sub AMP function off (PWM off).
- 1: Determines the Sub volume according to the main volume control. That is, the sub volume is determined according
to the Power On Volume, the Min Volume, and the Max Volume values of the Hotel Mode.
- 2: Determines the volume according to the bathroom control panel setting.
VariableOutputPortSpecications
- L: 8Ω, 2W / R: 8Ω, 2W
- Speaker Wire: Use speaker cable no more than 25m in length.
➣
➣

➣

Signal wire : Speaker -
Signal wire : Speaker +
VOL +
VOL -
1
2
3
Volume Control Box
VOL - UP
( Black /Red 2)
GND
( Shield Wire 3)
VOL - DOWN
( White 1)
