or
TV Side Panel
Camcorder
S-Video Cable (Not supplied)
1
Audio Cable
(Not supplied)
2
Video Cable (Not supplied)
1

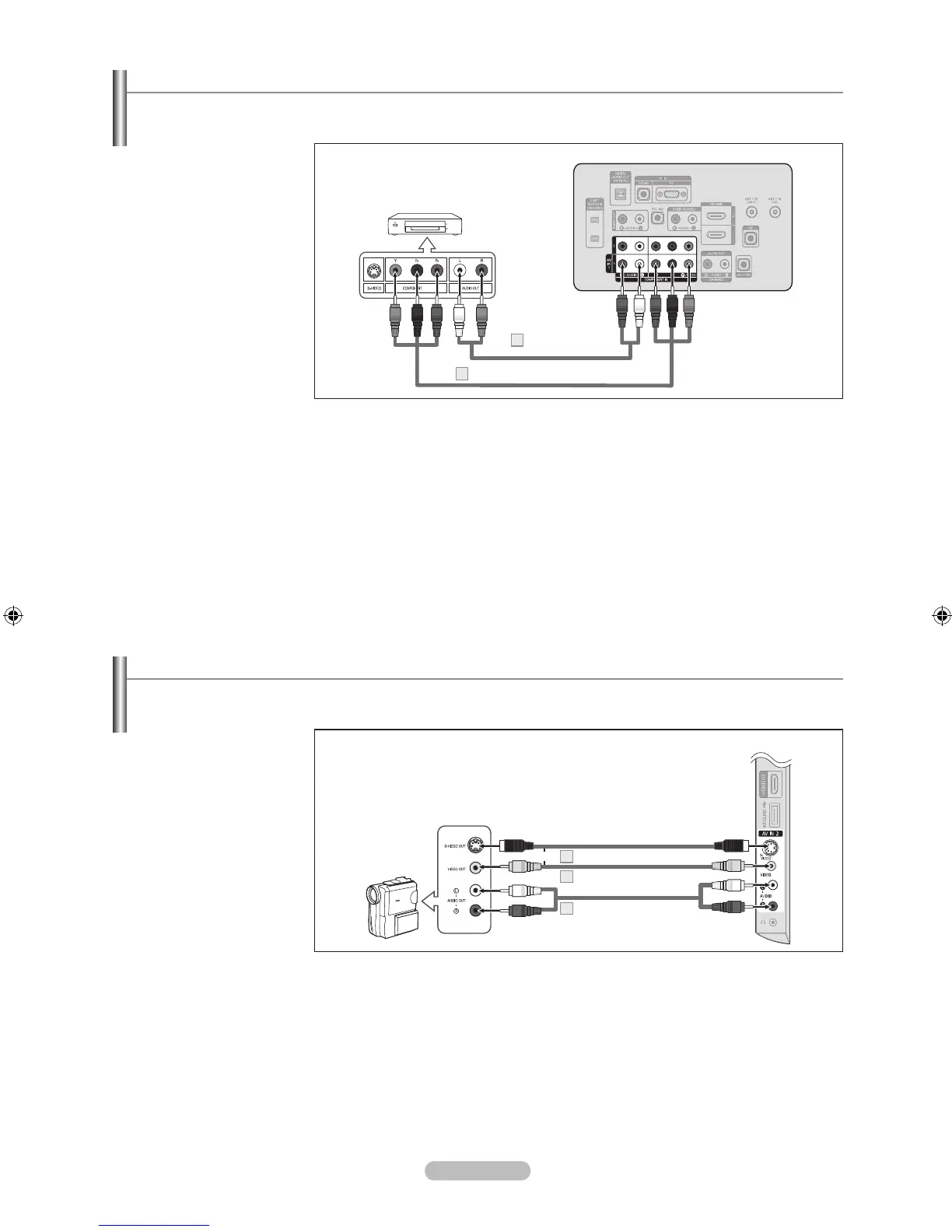

Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
They allow you to view the camcorder tapes without using a VCR.
1. Connect a Video Cable
(or S-Video Cable)
between the AV IN 2
[VIDEO] (or S-VIDEO)
jack on the TV and the
VIDEO OUT jack on the
camcorder.
2. Connect Audio Cables
between the AV IN 2
[R-AUDIO-L] jacks on
the TV and the AUDIO
OUT jacks on the
camcorder.
Each Camcorder has a different back panel conguration.
When connecting a Camcorder, match the color of the connection terminal to the cable.
➣
➣
Connecting a DVD/Blu-Ray player/Satellite receiver (Set-Top Box) via Component cables
Component connection enables you to view HD (High Denition) content. The rear panel jacks on your TV make it easy to
connect a DVD/Blu-Ray player/Satellite receiver (Set-Top Box) to your TV.
1. Connect a Component
Cable between the
COMPONENT IN
(1 or 2) [Y, PB, PR]
jacks on the TV and the
COMPONENT
[Y, PB, PR] jacks on the
DVD/Blu-Ray player/
Satellite receiver (Set-
Top Box).
2. Connect Audio
Cables between the
COMPONENT IN(1 or
2) [R-AUDIO-L] jacks on
the TV and the AUDIO
OUT jacks on the DVD/
Blu-Ray player/
Satellite receiver (Set-
Top Box).
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting a Component video cable to COMPONENT IN 1, connect
the audio cable to COMPONENT IN 1 also.
Each DVD/Blu-Ray player/Satellite receiver (Set-Top Box) has a different back panel
conguration.
When connecting a DVD/Blu-Ray player/Satellite receiver (Set-Top Box), match the
color of the connection terminal to the cable.
➣
➣
➣
TV Rear Panel
DVD/Blu-Ray player/
Satellite receiver (Set-Top Box)
Audio Cable
(Not supplied)
2
Component Cable (Not supplied)
1
To Next Page
