Samsung NX10 Service Manual

SAMSUNG This Document can not be used without Samsung’s authorization 5-3
Adjustment
3. LENS CONTROL
 (1)OISADJUSTMENT
- When you adjust the OIS function which have a OIS lens, you can adjust it.
- How to adjust
   Aftercombinethelens,enterthetestermode.SelecttheLENSCONTROL→OISADJUSTMENT→PresstheOKbutton.
 *Caution:Donotshakethecamerawhenadjustit.
 (2)ZOOMWIDESET,ZOOMTELESET
- When you adjust the position of zoom position, you can use it.
(After changing the PCB inside the lens or disassemble the mount, you must adjust it.)
- How to adjust
   Aftercombinethelens,enterthetestermode.SelecttheLENSCONTROL→ZOOMWIDESET
   →LocatethezoompositiontotheWide.→SelectOK(IncaseofTele,viseversa)
* Caution : Do not shake the camera when adjust it.

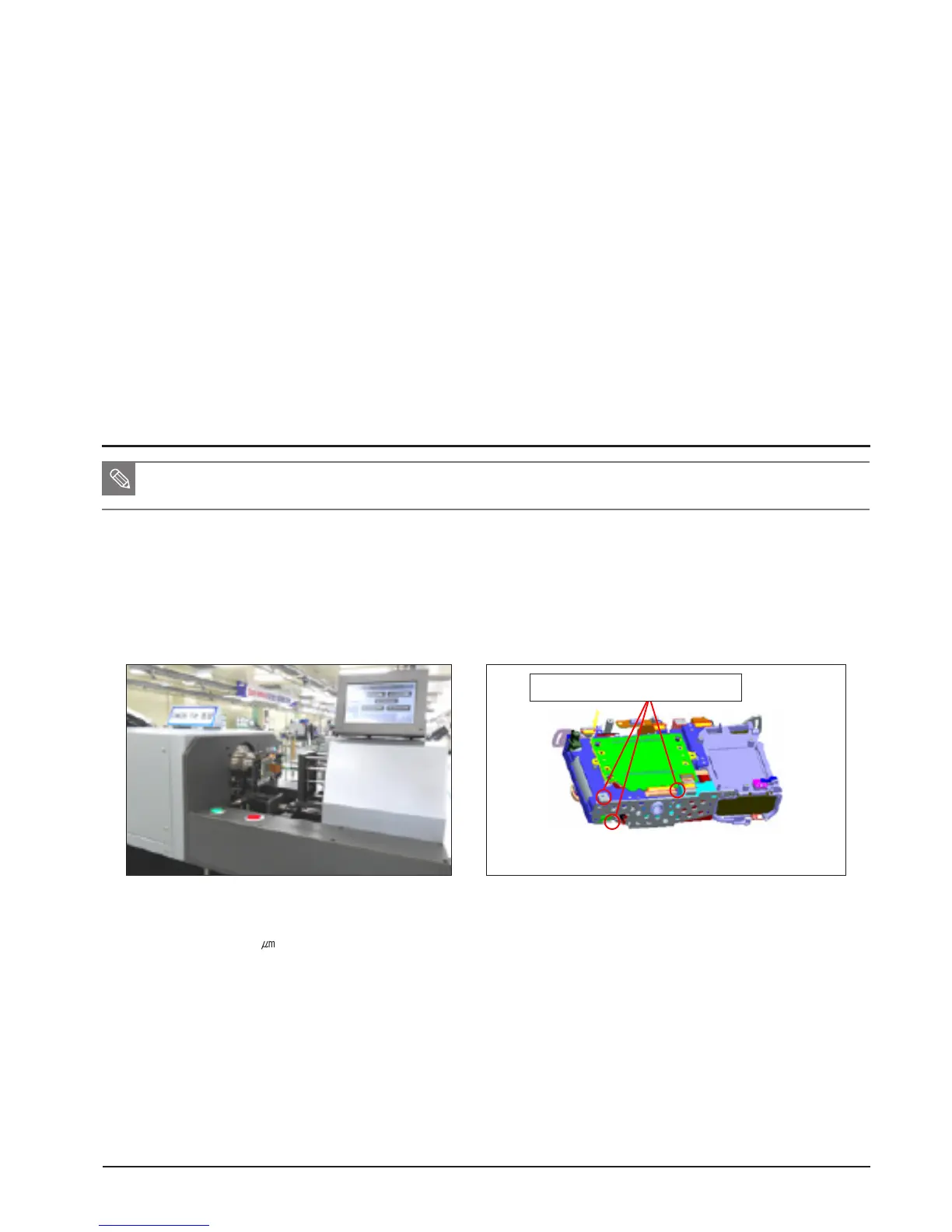

5-3 CIS TILT Adjustment
■ If you change or disassemble the CMOS ASS’Y, you must do the CMOS Tilt adjustment.
<How to Adjust>
1.PrepareCISTiltadjustmenttools.(Kyoritsu(RSM-5000))
2.AfterpressingtheStartbutton,Tiltadjustmentprocedurenishedautomatically.
3.Aftercompletingtheadjustment,pleasebonding3screwsandxitasbelow.
<Adjustment Result>
Itcanbeadjustbelow10 betweenMOUNTandCMOSASS’Y.
Fig. 5-2
The screw of CMOS Tilt adjustment.

Samsung NX10 Specifications

General

Megapixel	14.6 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	Yes
Maximum image resolution	4592 x 3056 pixels
Still image resolution(s)	1472 x 976, 1920 x 1080, 1920 x 1280, 3008 x 1688, 3008 x 2000, 3872 x 2176, 3872 x 2592, 4592 x 2584
Digital zoom	- x
Camera shutter speed	1/4000 - 30 s
Focus	TTL
Focus adjustment	Auto
Auto focusing (AF) modes	Multi Point Auto Focus
ISO sensitivity	100, 200, 400, 800, 1600, 3200, Auto
Video formats supported	H.264, MP4
Maximum video resolution	1280 x 720 pixels
Display diagonal	3 \
Display resolution (numeric)	614000 pixels
USB version	2.0
Product color	Black
Battery type	BP1310
Battery capacity	1300 mAh
Battery life (max)	3.5 h
Battery life (CIPA standard)	400 shots
Bundled software	SAMSUNG Master, SAMSUNG RAW Converter 3.1 Adobe Reader, QuickTime Player 7.6
Operating temperature (T-T)	5 - 85 °C
Maximum operating temperature range (T-T)	0 - 40 °C
Flash modes	fill-in, Red-eye reduction, second curtain synchro
Scene modes	Documents, Night, Portrait, Landscape (scenery)
Camera playback	single image, slide show

Weight and Dimensions

Depth	87 mm
Width	123 mm
Height	39.8 mm
Weight	353 g
