Samsung NX10 Service Manual

Product Specication
SAMSUNG This Document can not be used without Samsung's authorization 1-5

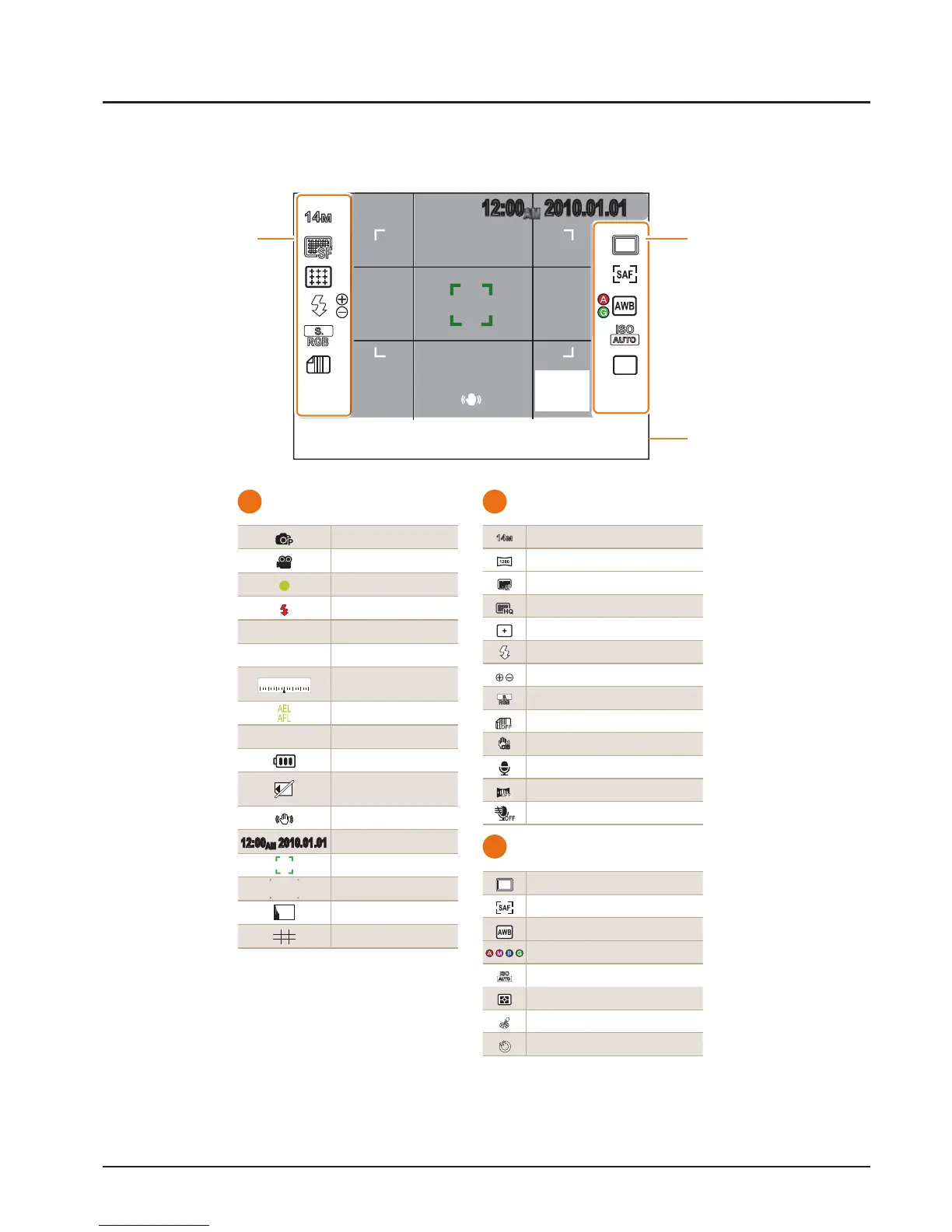

1-3 LCD monitor indicator
■ The LCD monitor displays information about the shooting functions and selections.
A
C
12:00 2010.01.01
14
M
SF
RGB
ISO
B
111222:::000000 222000111000...000111...000111
A
Information display
Shooting mode
Movie shooting mode
Focus checking
Flash
15
Shutter speed
F3.5
Aperture value
3
-
+
2 2 31 10
Adjusted value of
exposure
AEL/AFL setting
0001
Possible no. of shots
Battery information
Displays no-insertion of
memory card
Warning of camera shake
12:00
AM
2010.01.01 Time, date and year info
Focus indicator
AF zone
Histogram
Grid display
B
Shooting option display(left)
14
M
Size
Movie size
SF
Image quality
Movie quality
Focus area
Flash
Flash light adjustment
RGB
Color space
Smart range
OIS
OIS
Voice recording
Fader
Wind Cut
C
Shooting option display(right)
Drive mode
AF mode
White balance
White balance adjustment
ISO
ISO
Metering option
Picture wizard
Timer

Samsung NX10 Specifications

General

Megapixel	14.6 MP
Camera type	Compact camera
Sensor type	CMOS
Image stabilizer	Yes
Maximum image resolution	4592 x 3056 pixels
Still image resolution(s)	1472 x 976, 1920 x 1080, 1920 x 1280, 3008 x 1688, 3008 x 2000, 3872 x 2176, 3872 x 2592, 4592 x 2584
Digital zoom	- x
Camera shutter speed	1/4000 - 30 s
Focus	TTL
Focus adjustment	Auto
Auto focusing (AF) modes	Multi Point Auto Focus
ISO sensitivity	100, 200, 400, 800, 1600, 3200, Auto
Video formats supported	H.264, MP4
Maximum video resolution	1280 x 720 pixels
Display diagonal	3 \
Display resolution (numeric)	614000 pixels
USB version	2.0
Product color	Black
Battery type	BP1310
Battery capacity	1300 mAh
Battery life (max)	3.5 h
Battery life (CIPA standard)	400 shots
Bundled software	SAMSUNG Master, SAMSUNG RAW Converter 3.1 Adobe Reader, QuickTime Player 7.6
Operating temperature (T-T)	5 - 85 °C
Maximum operating temperature range (T-T)	0 - 40 °C
Flash modes	fill-in, Red-eye reduction, second curtain synchro
Scene modes	Documents, Night, Portrait, Landscape (scenery)
Camera playback	single image, slide show

Weight and Dimensions

Depth	87 mm
Width	123 mm
Height	39.8 mm
Weight	353 g
