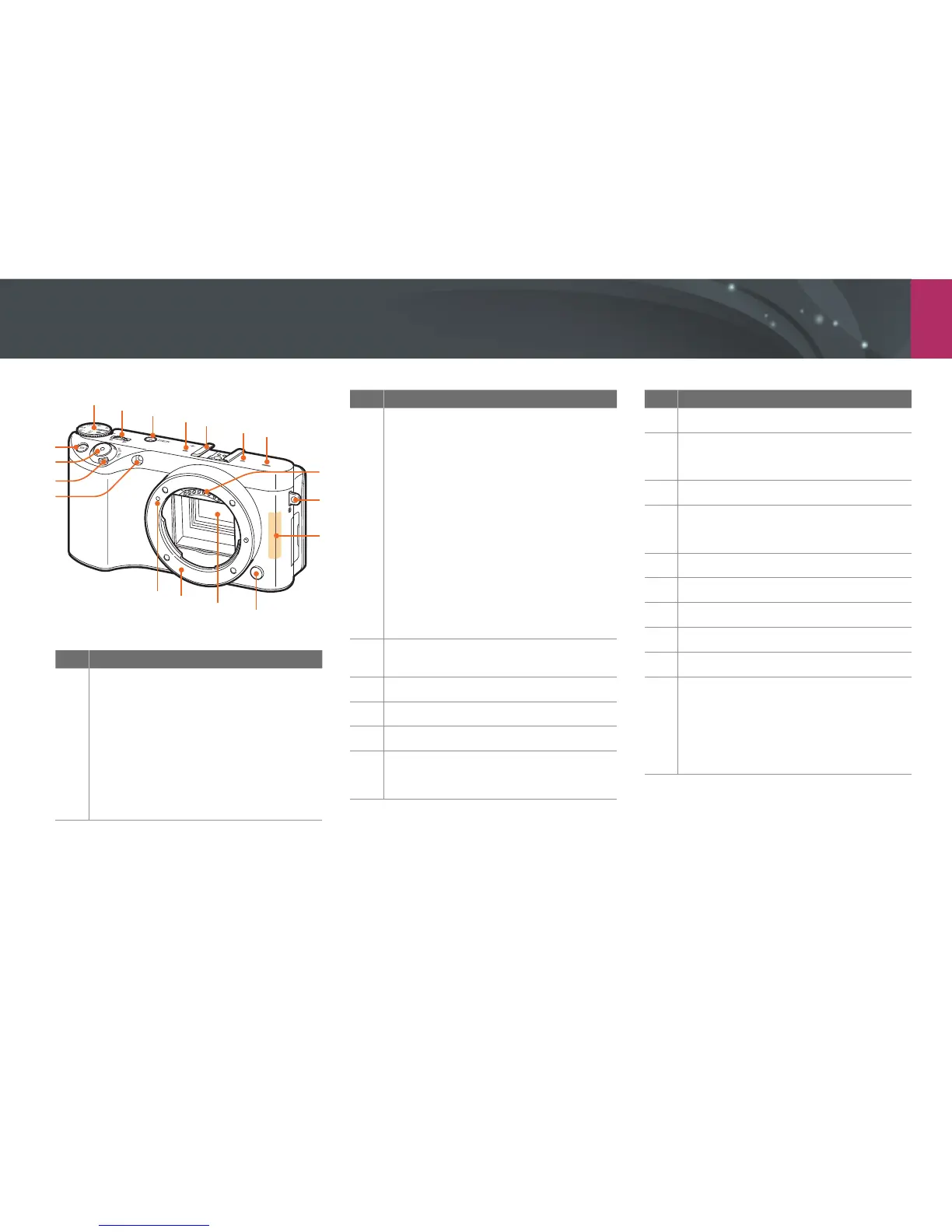

Camera layout
No. Name
2
Command dial 1
 In the Menu screen: Move to a desired
menu item.
 In the Smart panel: Adjust a selected
option.
 In Shooting mode: Adjust shutter
speed, aperture value, Program
Shift settings, exposure value, or ISO
sensitivity in some shooting modes or
change the size of a focus area. (p. 174)
 In Playback mode: View thumbnails
or enlarge or reduce a photo. Open or
close a photo bundle in Playback mode.
Scan backward or forward through a
video.
3
MOBILE button
Select a Wi-Fi function.
4
Microphone
5
Hot-shoe
6
Speaker
7
Lens contacts
* Avoid contact with or prevent damage to the
lens contacts.
No. Name
1
Mode dial
 t: Auto mode (p. 60)
 P: Program mode (p. 62)
 A: Aperture Priority mode (p. 64)
 S: Shutter Priority mode (p. 65)
 M: Manual mode (p. 66)
 T: Custom mode (p. 67)
 i: Samsung Auto Shot mode (p. 69)
 s: Smart mode (p. 71)
No. Name
8
Eyelet for camera strap
9
Internal antenna
* Avoid contact with the internal antenna while
using a wireless network.
10
Lens release button
11
Image sensor
* Avoid contact with or prevent damage to the
image sensor.
12
Lens mount
13
Lens mount index
14
AF-assist light/Timer lamp
15
Power switch
16
Shutter button
17
AEL button (p. 117)
 In Shooting mode: Lock the adjusted
exposure value or focus or perform the
assigned function.
 In Playback mode: Protect the selected
le.
1
2
3
4
5
10
12
13
11
14
6
4
15
17
16
8
7
9
