● CONNECTION & INSTALLATION

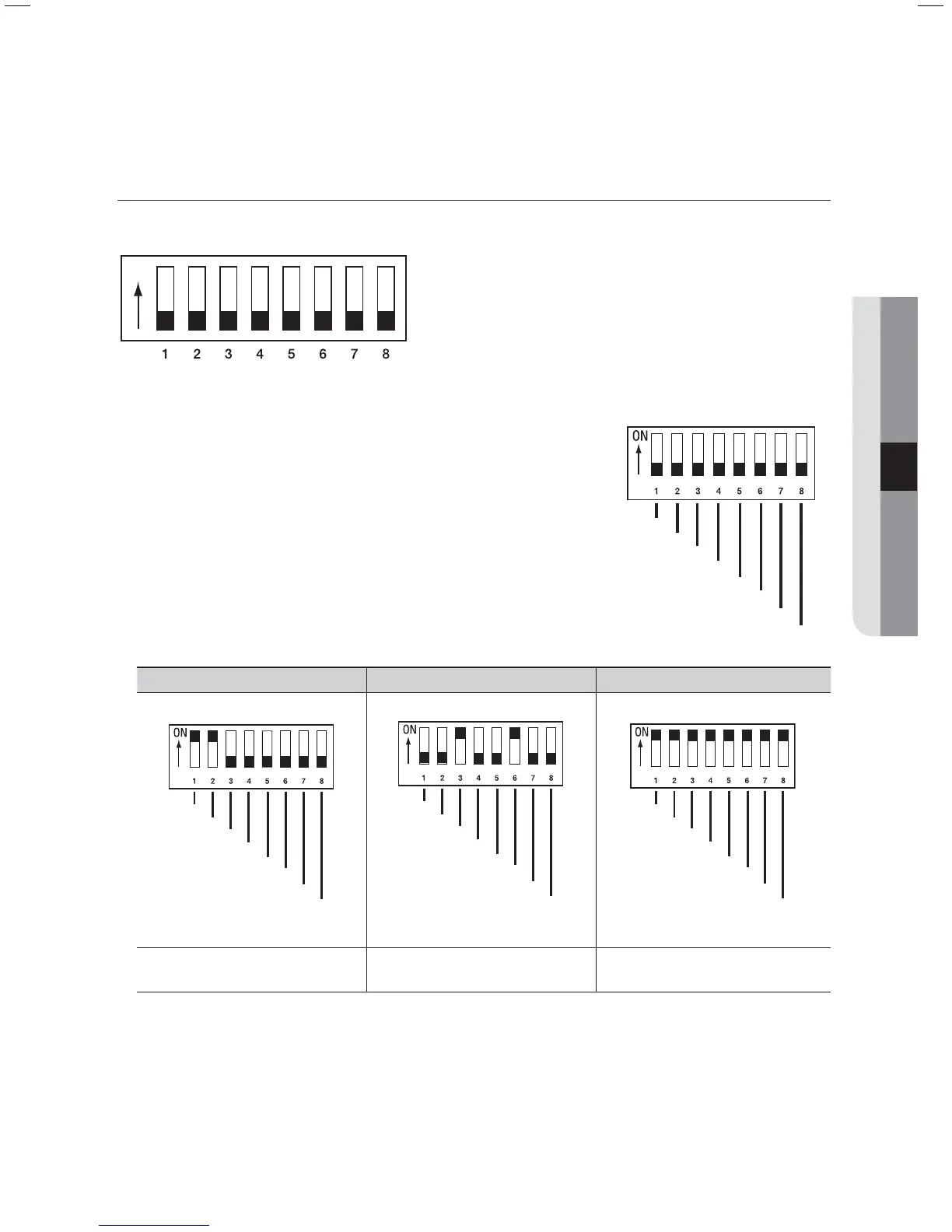

CAMERA ID DIP SWITCH SETTINGS (SW1)
Assign a unique number for each camera to identify itself from others.
ON
ON
OFF
SW1
The initial value of the switch is “0”, and all of the 8 switches are
defaulted to OFF.
Each switch has a unique value, and the board ID is the sum of
the values of the switches.
Refer to the example below for the board ID.
Example 1
Example 2 Example 3
1+2 = 3 (Board ID = 3) 4+32 = 36 (Board ID = 36)
1+2+4+8+16+32+64+128
= 255 (Board ID = 255 )
Use a unique ID for each Camera.
