Samsung SCX-6545NX Series User Manual

18
introduction
These are the main components of your machine:
This chapter includes
• Printer overview
• Control panel overview
• Introducing the touch screen and useful buttons
• Managing your machine from the website
• Understanding the Status LED
• Menu overview
• Supplied software
• Printer driver features
z

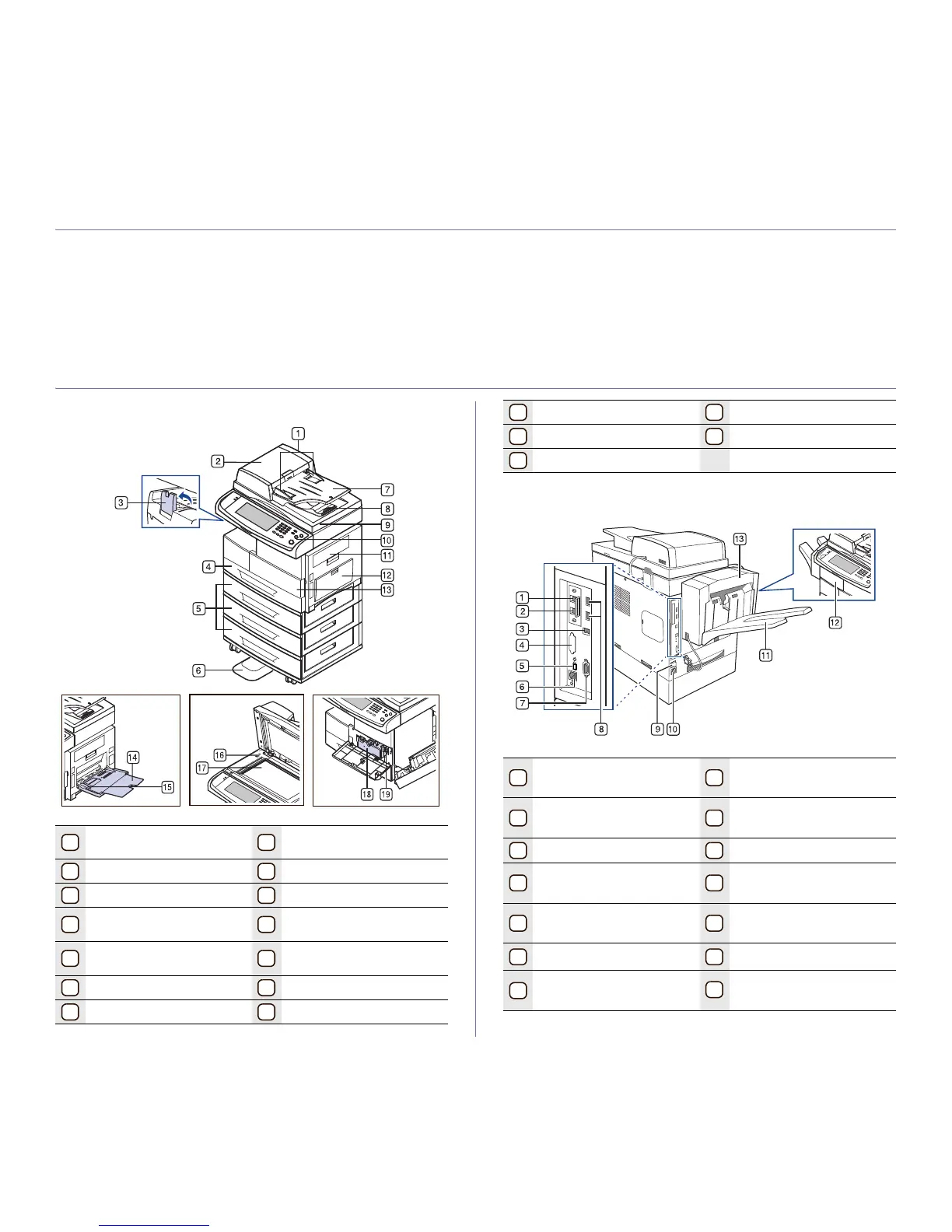

PRINTER OVERVIEW
Front view
Rear view
1
DADF document width
guides
11
Side cover
2
DADF cover
12
Multi-purpose tray
3
Output support
13
Front cover
4
Tray 1
14
Multi-purpose tray
extension
5
Optional tray
a
15
Multi-purpose tray paper
width guides
6
Stand
a
16
Scanner lock switch
7
DADF document input tray
17
Scanner glass
8
DADF document output tray
18
toner cartridge
9
scanner lid
19
imaging unit
10
Control panel
a. The symbol
a
is a mark for the optional device.
1
Extension telephone socket
(EXT)
a
a. The symbol
a
is a mark for the optional device.
8
USB memory port
2
Telephone line socket
(LINE)
a
9
Power switch
3 USB port 10 Power receptacle
4
dummy for FDI (Foreign
Device Interface
a
)
11
Finisher output tray
(Stacker & Stapler)
a
5
XOA port
12
finisher cover (Stacker &
Stapler)
a
6
network port
13
finisher (Stacker & Stapler)
a
7
15-pin Finisher connection
(Stacker & Stapler)
a
