Samwontech TEMI2000 Series User Manual

SAMWONTECH
4st Edition of TEMI2000_Series IM : Aug. 18. 2009 Page 26 / 55
5.1 Program PATTERN setting
▶ This screen is to set programming segments of each pattern.
▶ Press [PATTERN SET] button on PROGRAM SET menu to enter into this screen
▶ Refer to [5.4 TIME SIGNAL] for how to use TIME SIGNAL.
▶ Refer to [5.5 WAIT function].
① Setup box to input pattern number for setting.
② Setup box for START CODE among ‘NOW PV’, ‘TEMP SP’ and ‘HUMI SP’ of starting SP condition.
This parameter determines starting SP condition at the first time of running operation, and SP trend
of the first segment.
☞ NOW PV (PV start)
: The program will immediately start at the point in the pattern where the current SP is equal to the
current PV when the program starts running. In the case where the PV is beyond any current SP in
the pattern, the program will immediately start at beginning of the first SOAK segment. If no SAOK
segment is present in the pattern, it will start at the point closest to the PV.
- If the starting point of the program, based on the PV at the start of the program, would occur during
a ramp segment, the program will recalculate the time left in the ramp segment.
☞ TEMP SP / HUMI SP (SSP start)
: The program will begin operating from the assigned Start Set Point (SSP) of temperature / humidity
in the program and ramp to Target Set Point of segment 01 over time designated in segment 01.
- Start Set Point (SSP) of temperature / humidity can be established at the START CODE setup box
when setting TEMP SP / HUMI SP of START CODE.
③ Setup box to input Target Set Point for each segment of temperature.
④ Setup box to input Target Set Point for each segment of humidity.
⑤ Setup box to input process time for each segment.
⑥ Setup box to input Time Signal number to use for each segment.
☞ Four TIME SIGNALs can be set for each segment among 18 different types.
☞ Refer to [5.4 TIME SIGNAL]
⑦ Button to set whether or not using WAIT function.
☞ Refer to [5.5 WAIT function]
⑧ Button to move back to PRORAM SET menu screen, [Figure 5-1 PROGRAM SET screen].
⑨ Button to display next / previous paragraph of four segments.
⑩ Segment delete button. When you press specific segment number
(Segment 01 ~ 99), that
segment number
(Segment 01 ~ 99) and (DELETE) button will become active. Press the
(DELETE) button, and activated segment will be deleted.
⑪ Segment insert button. When you press specific segment number
(Segment 01 ~ 99), that
segment number
(Segment 01 ~ 99) and (INSERT) button will become active. Press the
(INSERT) button, and the activated segment will be inserted into the pattern.
④
③
⑥
②
⑤
①
⑧
⑦
⑪
⑩
⑨

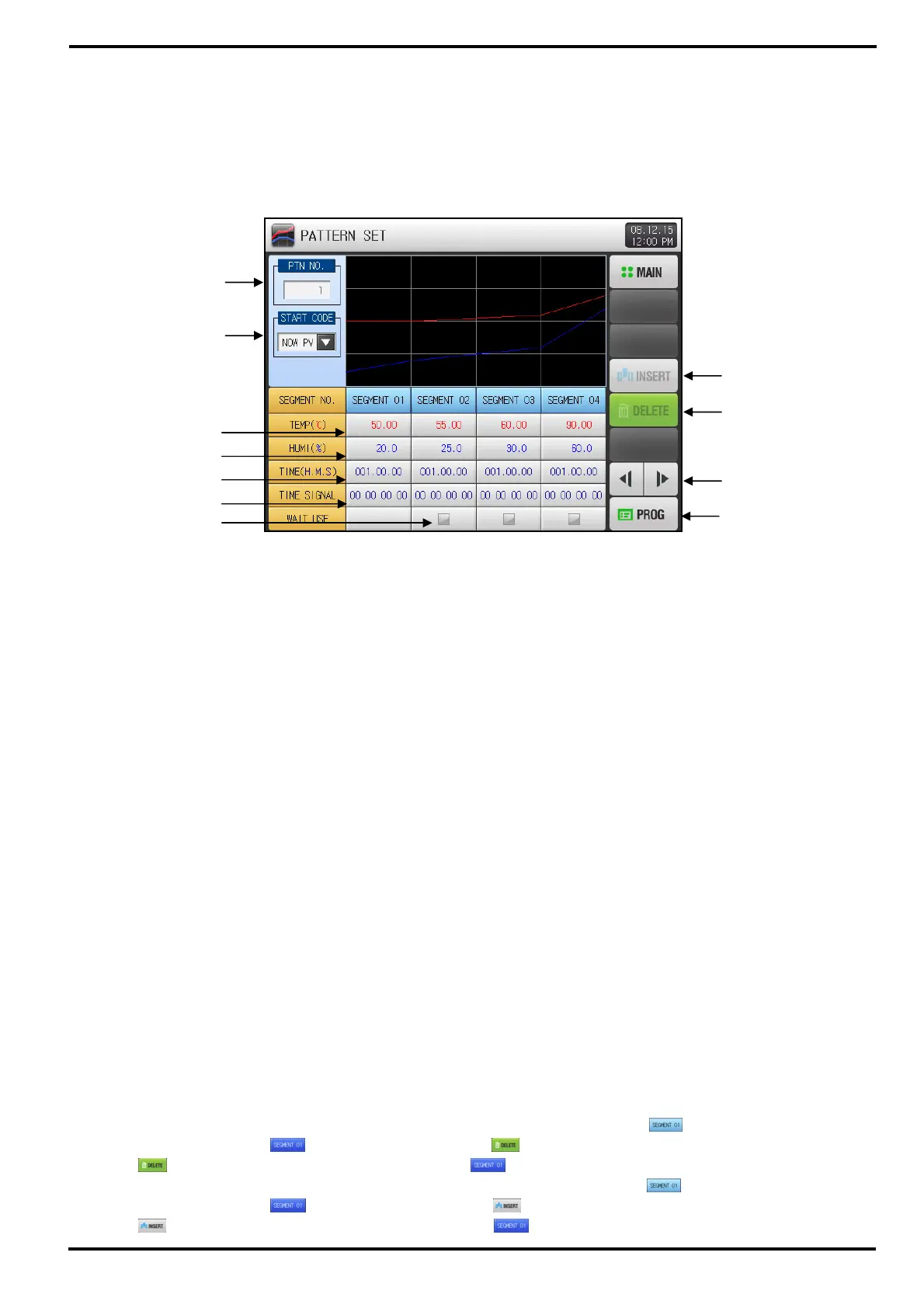

[Figure 5-2] PATTERN SET screen
