9 USER SCREEN
9.1 USER SCREEN viewer
▶ 16 individual images can be used as USER SCREEN.
▶ USER SCREEN viewer will be activated by no key input for established [START TIME] on [12.
PICTURES VIEW setting] of [Installation Manual], and USER SCREEN images will display with rotating
by [INTERVAL TIME], when using that function with more than one picture.
▶ DI ERROR screen will display if DI ERROR occurs while USER SCREEN viewing.
▶ This
button group will be popup on the screen by pressing touch screen during USER
SCREEN viewing.
①
: STOP button of USER SCREEN viewer and return to the Operation screen.
☞ After passing the START TIME with no key input, the USER SCREEN viewer will be activated again.
②
: Move button to the previous USER SCREEN image.
☞ Not available when using only one USER SCREEN image.
③
: PAUSE button of USER SCREEN viewer at current image.
④
: Move button to the next USER SCREEN image.
☞ Not available when using only one USER SCREEN image.
⑤
: Button to disappear the button group.

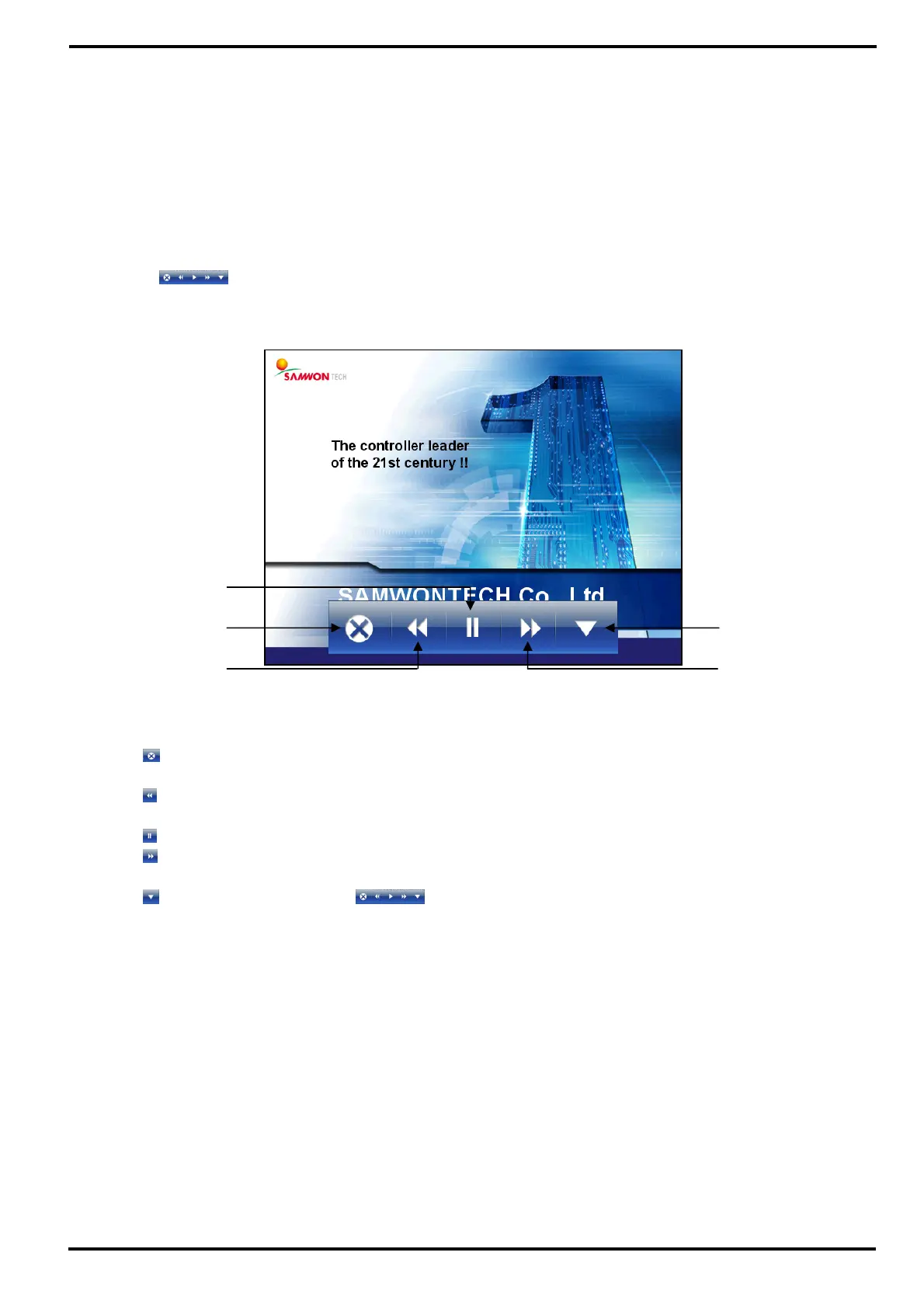

[Figure 9-1] Sample image of USER SCREEN
①
②
③
④
⑤
