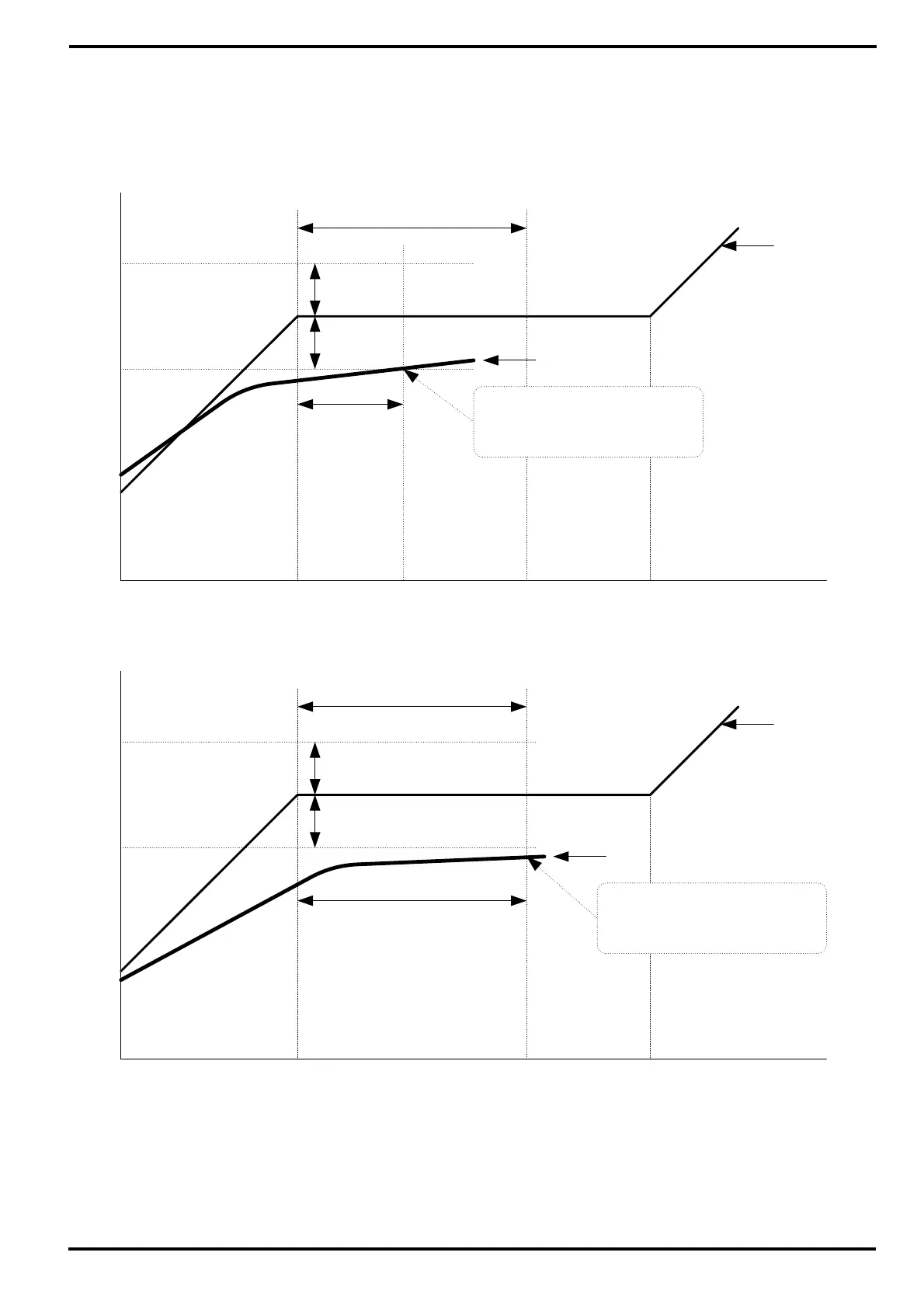

▶ The interaction between WAIT Operation and WAIT TIME is shown as below.
① Release WAIT Operation within WAIT TIME
② Release WAIT Operation by elapsed WAIT TIME
WAIT TIME
Set point
WAIT ZONE
WAIT ZONE
PV
Segment n Segment (n+1) Segment (n+2)
WAIT Operation
(Actual Delay Time)
Release WAIT Operation
Step to the next Segment
(n+1) progression
WAIT TIME
Set point
WAIT ZONE
WAIT ZONE
PV
Segment n Segment (n+1) Segment (n+2)
WAIT Operation
(Actual Delay Time)
Release WAIT Operation
Step to the next Segment
(n+1) progression
