10 S&C Instruction Sheet 461-502
Installation

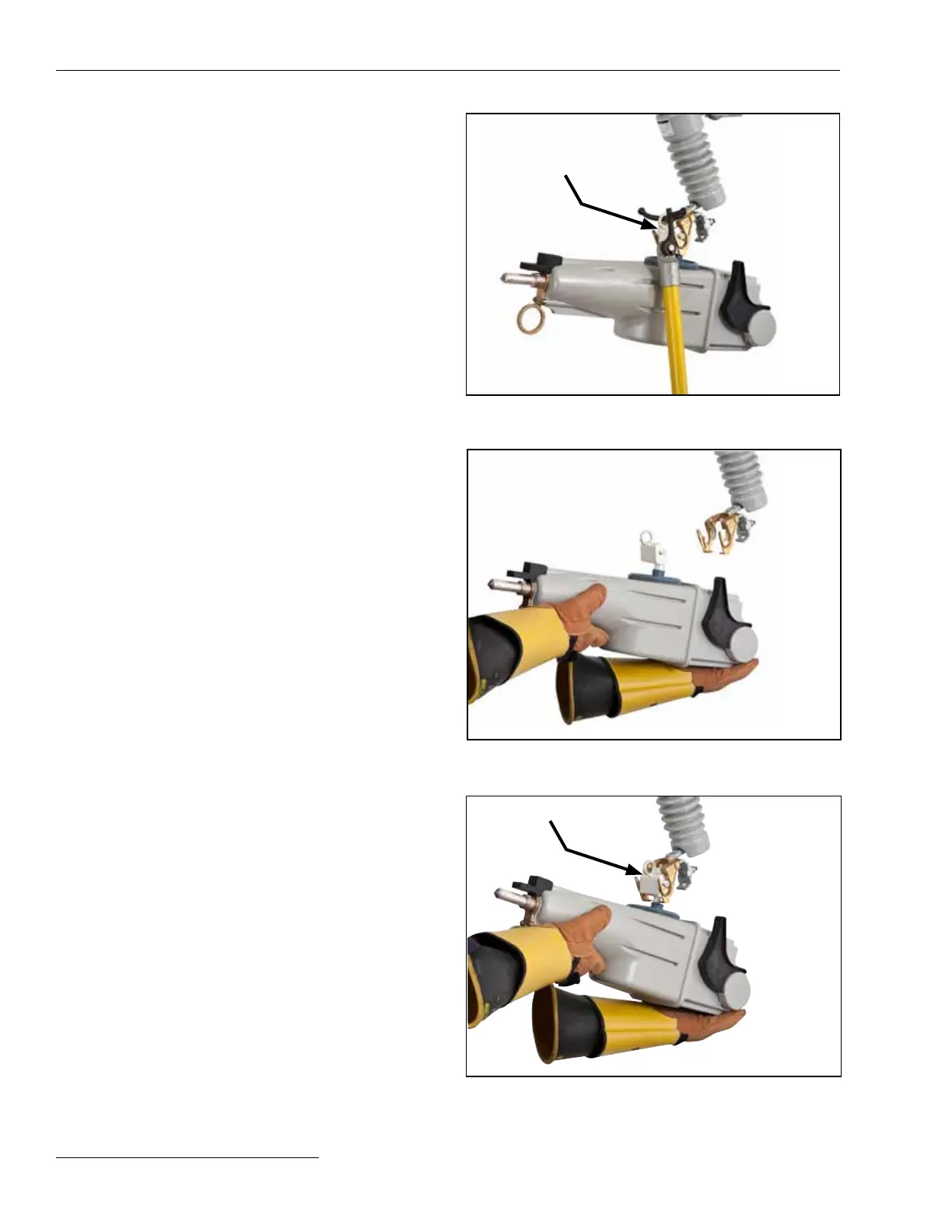

Figure 5a. Inserting a 25-kV TripSaver II into its mounting with
an S&C Talon Handling Tool.
Figure 5b. Inserting a 25-kV TripSaver II into its mounting with
gloved hands.
Figure 5c. Guiding the trunnion into the hinge of the cutout
mounting.
(b) For a TripSaver II recloser rated 25 kV:
Attach an S&C Talon Handling Tool or a
distribution prong to a short hotstick. Insert
the curled prong of the Talon tool or the
distribution prong into the lifting eye of the
trunnion, and raise the TripSaver II recloser
into the mounting. See Figure5a. If a Talon
tool is used, rotate the hotstick
counterclockwise 180° to disengage it.
Alternately, insert the TripSaver II
recloser into a 125-kV BIL or 150-kV BIL-
rated mounting with gloved hands as shown
in Figures 5b and 5c. Guide the trunnion into
the hinge of the cutout mounting as shown in
Figure 5c.
Trunnion
Trunnion
