S&C Instruction Sheet 461-502 9
Installation
STEP 4.
(a) For TripSaver II recloser rated 15 kV:
At tach a Talon Handli ng Tool or a d ist ribut ion
prong to a short hotstick. Insert the curled
prong of the Talon tool or the distribution
prong into the lifting eye of the trunnion, and
raise the TripSaver II recloser into the
mounting. See Figure 4a. If a Talon tool is
used, rotate the hotstick counterclockwise
180° to disengage it.
Alternately, insert the TripSaver II
recloser into a 110-kV BIL-rated mounting
with gloved hands, as shown in Figures 4b
and 4c. Guide the trunnion into the hinge of
the cutout mounting, as shown in Figure 4c.

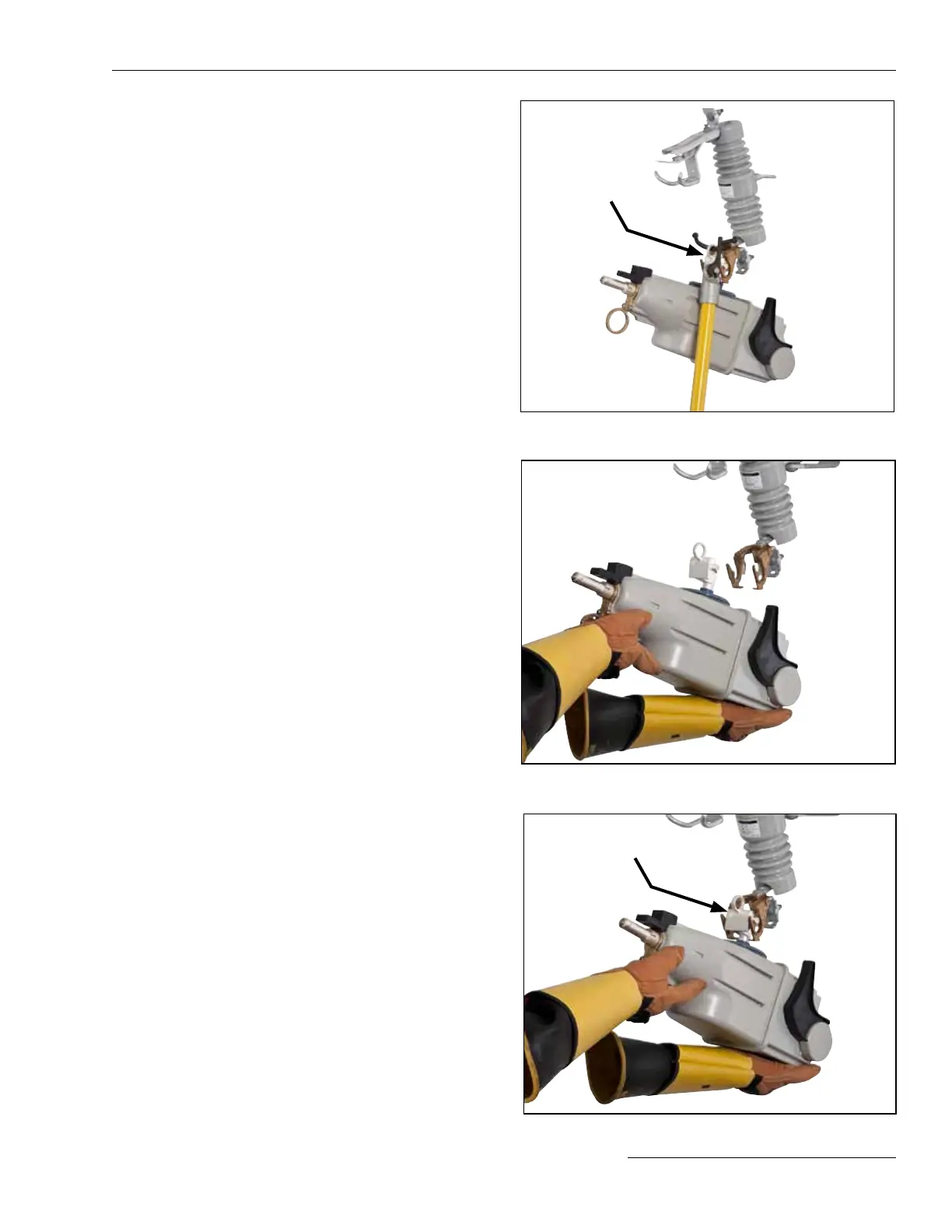

Figure 4c. Guiding the trunnion into the hinge of the cutout
mounting.
Figure 4b. Inserting a 15-kV TripSaver II recloser into its
mounting with gloved hands.
Figure 4a. Inserting a 15-kV TripSaver II recloser into its
mounting with an S&C Talon Handling Tool.
Trunnion
Trunnion
