Connections to other equipment

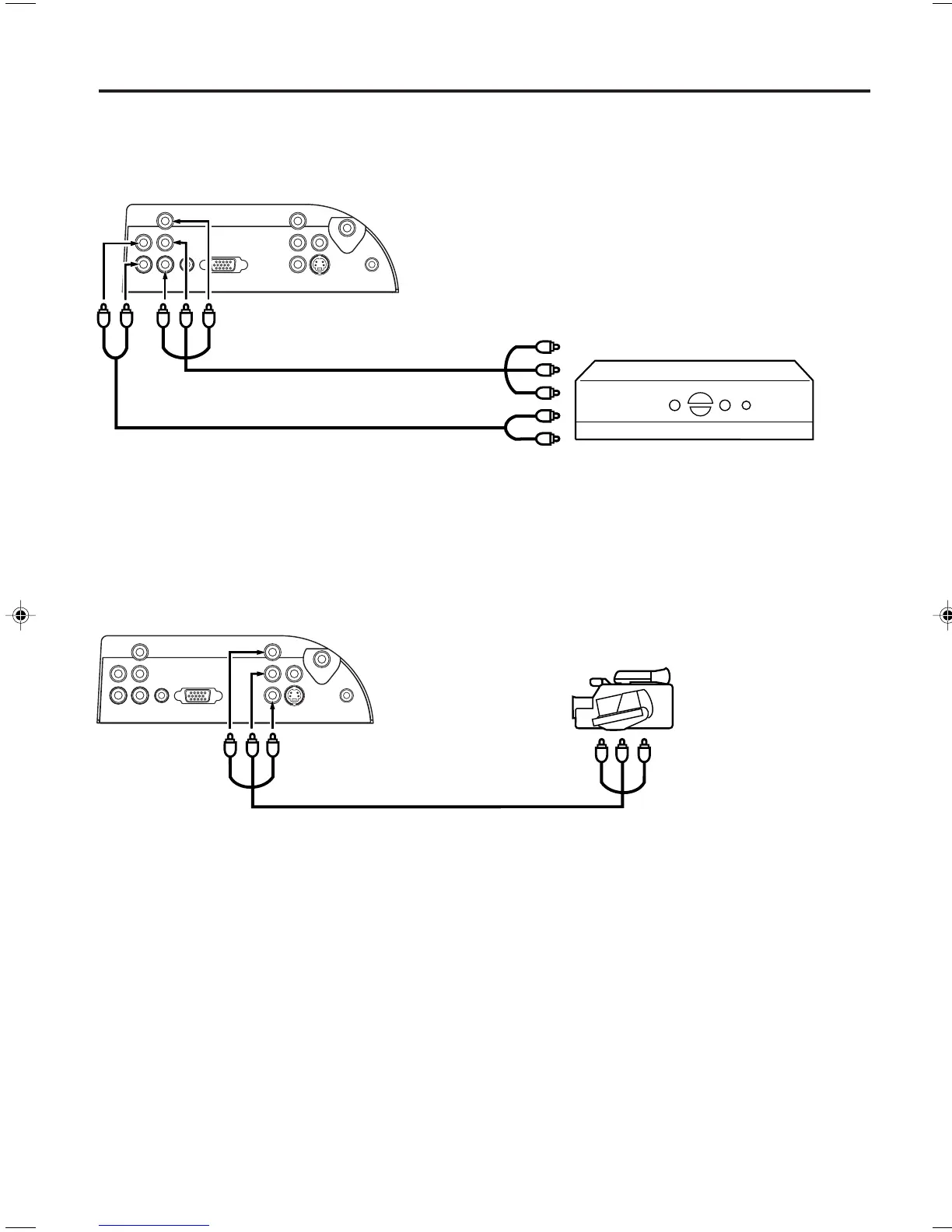

To connect the LCD TV to a DTV receiver/set-top box
If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a compo-
nent video cord.
Y
P
B
P
R
To Component OUT
To Audio OUT
Audio cord (not supplied)
Video cord (not supplied)
Rear of the LCD TV
To connect the LCD TV to a camcorder
To playback from a camcorder, connect the camcorder to the LCD TV as shown.
Rear of the LCD TV
Audio/Video cord (not supplied)
To AUDIO(L/R)/VIDEO IN
To Audio/Video OUT
To AUDIO(L/R) IN
To COMPONENT IN
