-6-
Circuit Protections

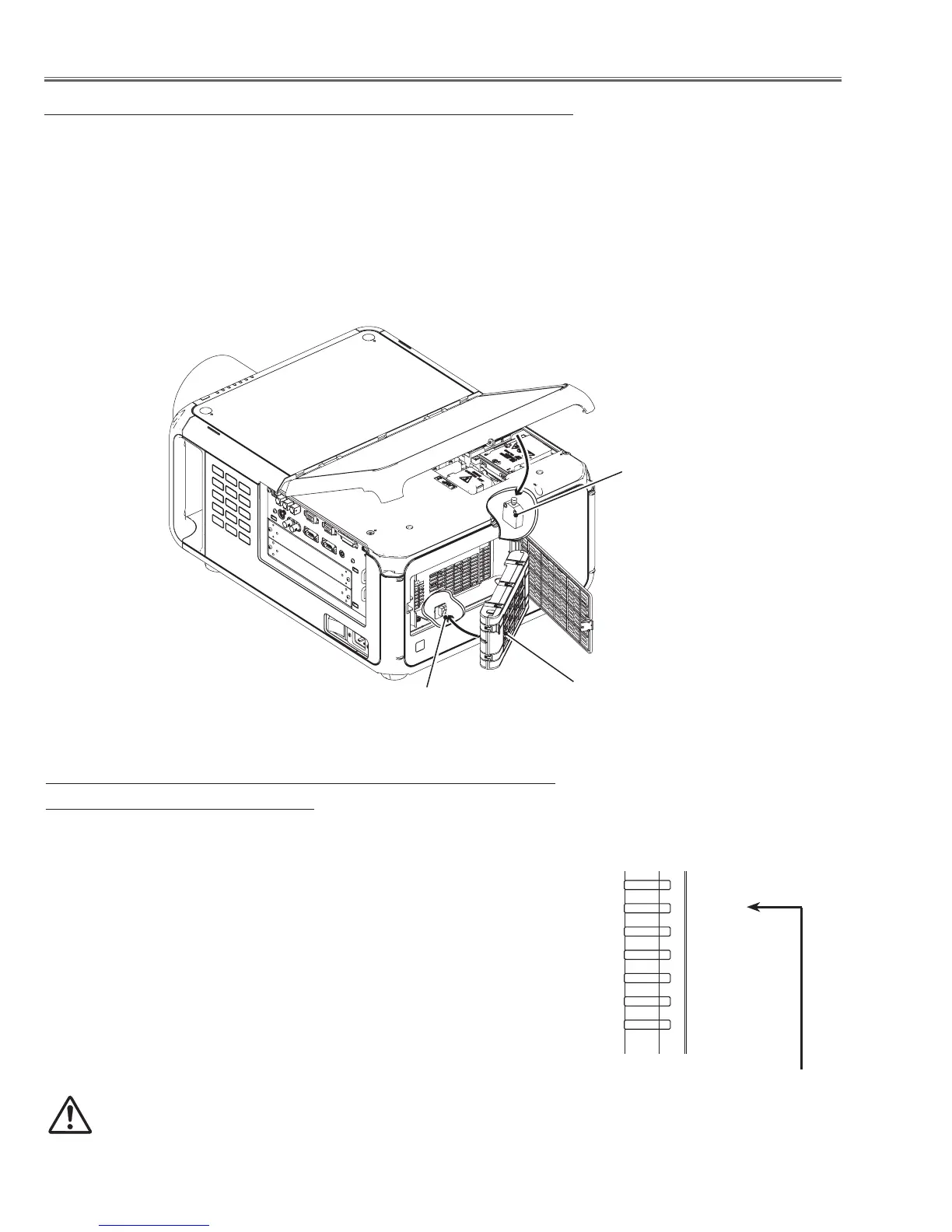

Mechanical sensor switches (SW902, SW1891)
Filter cartridge switch
(SW1891)
Lamp cover switch
(SW902)
Filter cartridge
This projector provides 2 mechanical sensor switches, the one is for filter cartridge switch (SW1891) and the other
one is for lamp cover switch (SW902). The filter cartridge switch detects whether the filter cartridge is installed cor-
rectly.
The lamp cover switch detects whether the lamp cover is closed securely. If lamp cover is opened or not closed com-
pletely, the drive signal to the lamp circuit is cut off. After opening the lamp cover for replacing the lamp ass’y, place
the lamp cover correctly otherwise the projector cannot turn on.
POWER
LAMP
WARNING TEMP.
WARNING FILTER
SHUTTER
LAMP 1 REPLACE
LAMP 2 REPLACE
Indicators
LAMP indicator lights on
and other indicators blink.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD
CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RE-
SULT IN FIRE OR ELECTRIC SHOCK.
The projector is shut down; and the LAMP indicator is lighting
and other indicators are blinking.
When the projector detects an abnormal condition (SW902, SW903, SW904
- opens), it will be automatically shut down to protect the inside of the projec-
tor and the LAMP indicator lights on and other indicators blink. In this case,
unplug the AC power cord and check that the filter cartridge and lamp cover
are installed securely, and the plug it, and turn on the projector once again to
verify operation. If the projector cannot be turned on and these indicators are
still lighting and blinking, unplug the AC power cord. See the troubleshooting
chapter.
The projector is turned on without installing the filter cartridge, and then the
filter cartridge is installed while the projector is on. The projector detects an
abnormal condition (SW1891 -closes), then it will also be automatically shut
down.
To Next Page
