Sanyo PLC PLC-ET30L Service Manual

-18-
Mechanical Disassembly
2

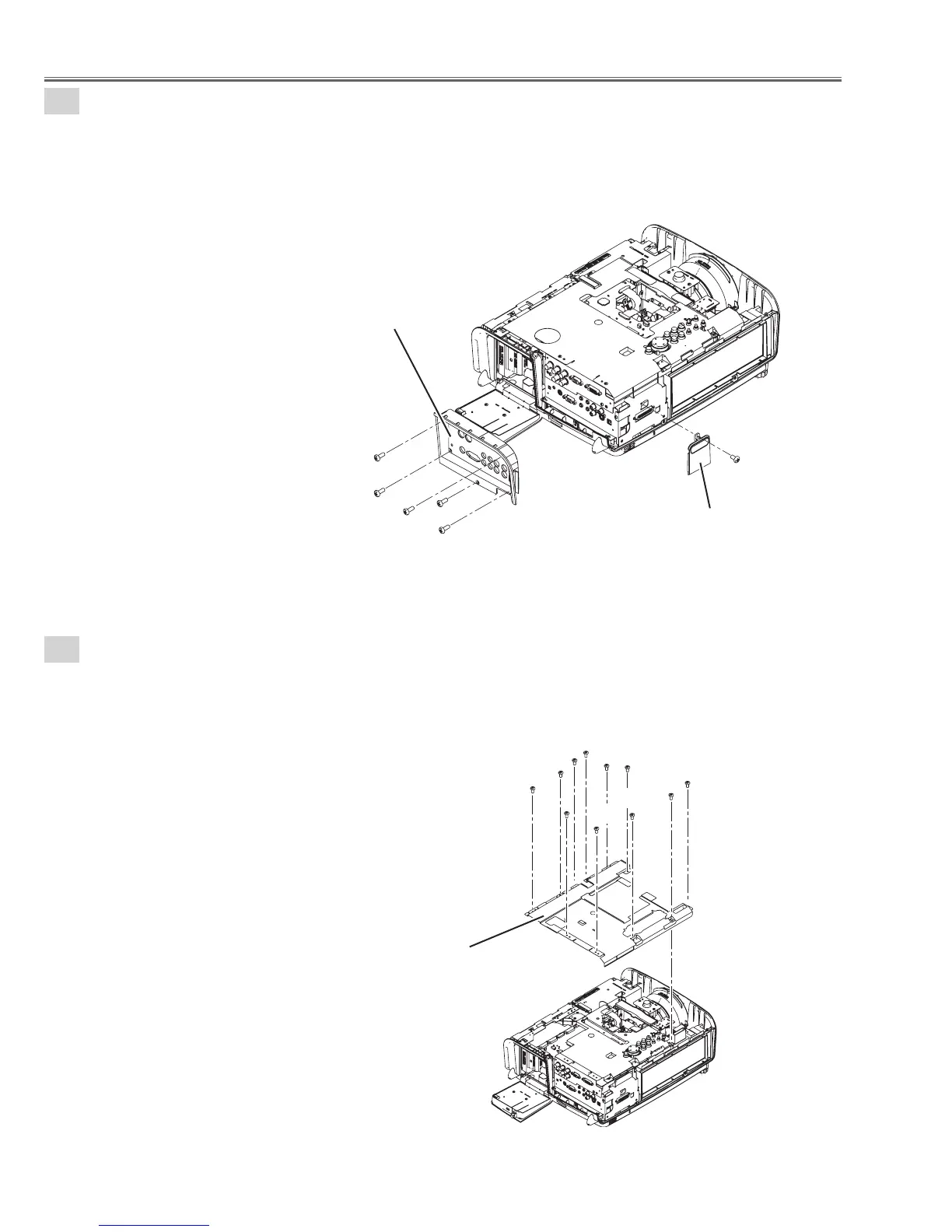

AV Panel and Side Panel removal.
1. Remove 5 screws-A(M3X8) and remove the AV Panel.
2. Remove 1 screw-B(M3X6) and remove the Side Panel.
Fig. 2
Fig. 3
3
Shield plate top-A removal.
1. Remove 11 screws-A(M3X8) and remove the Shield plate top-A.
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
Side panel
Shield plate top-A
AV panel
A
A
